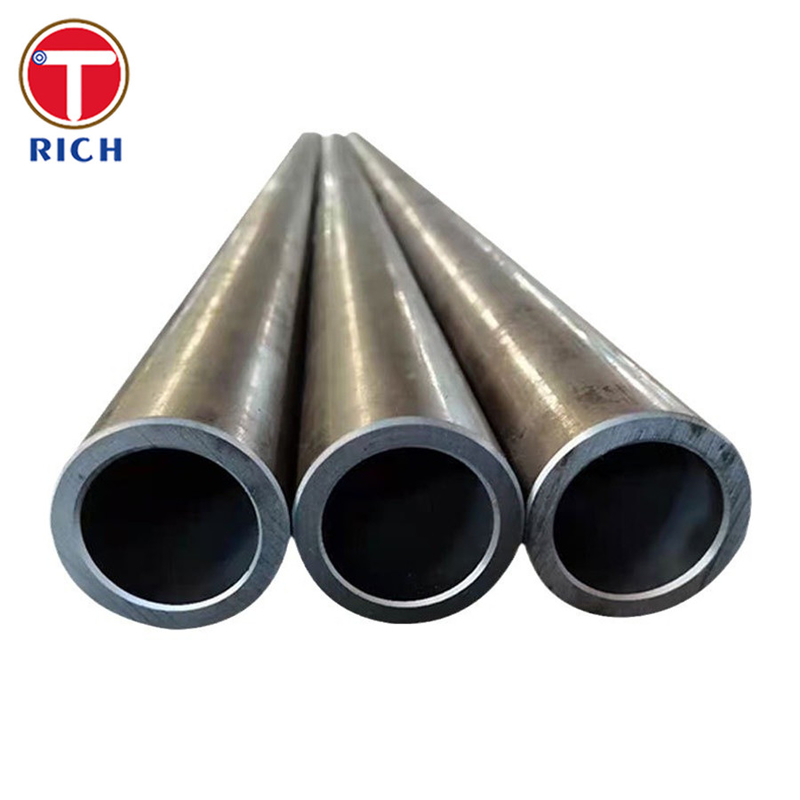

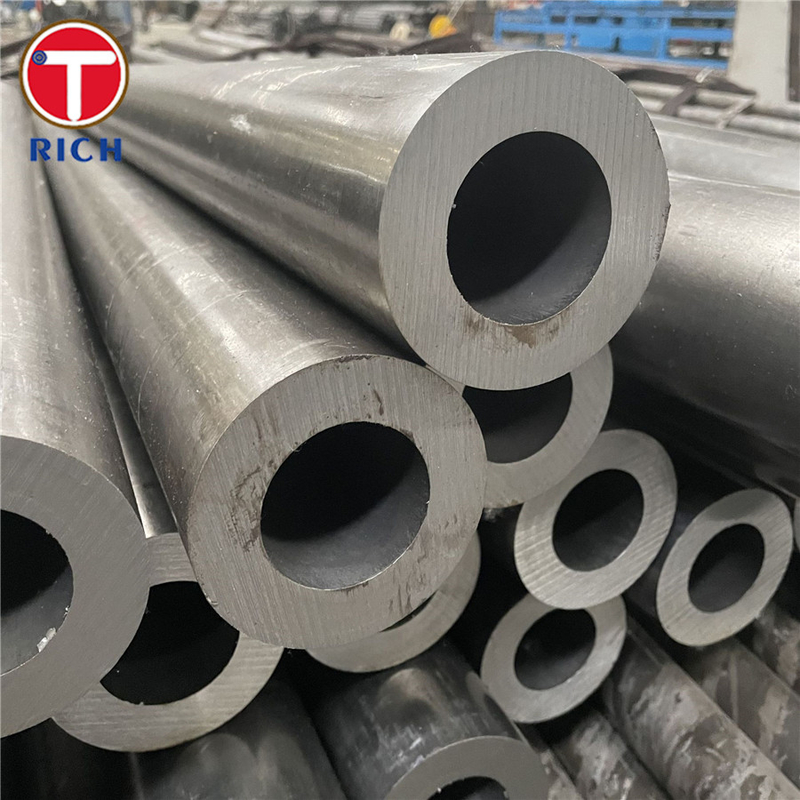

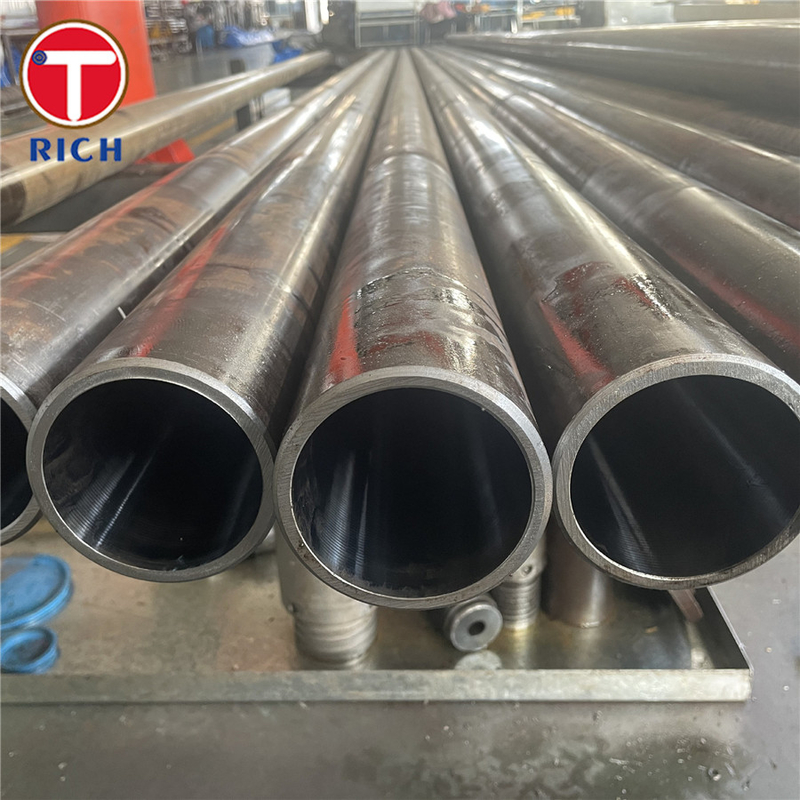

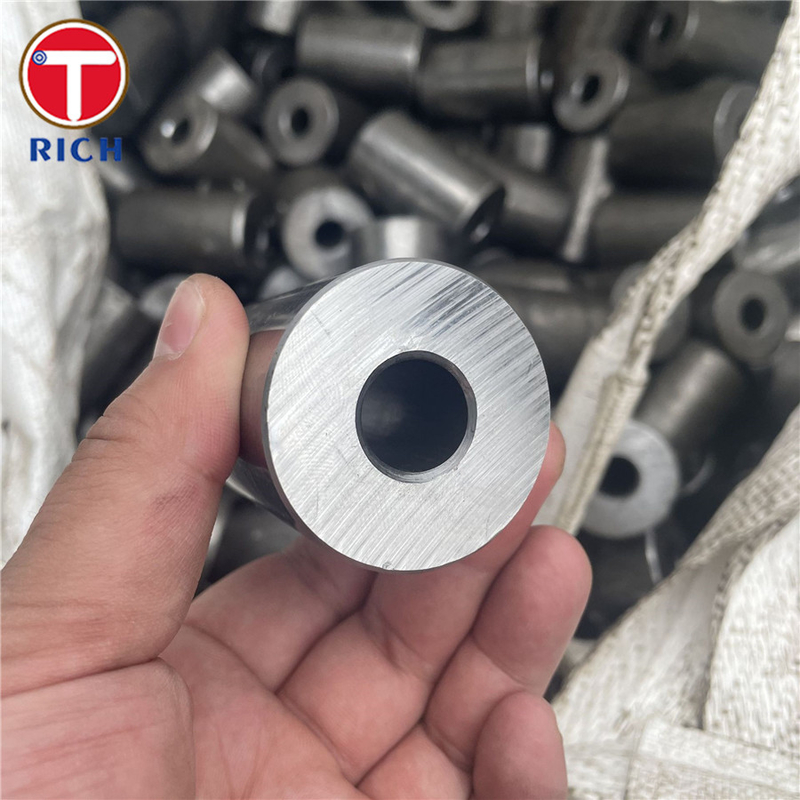

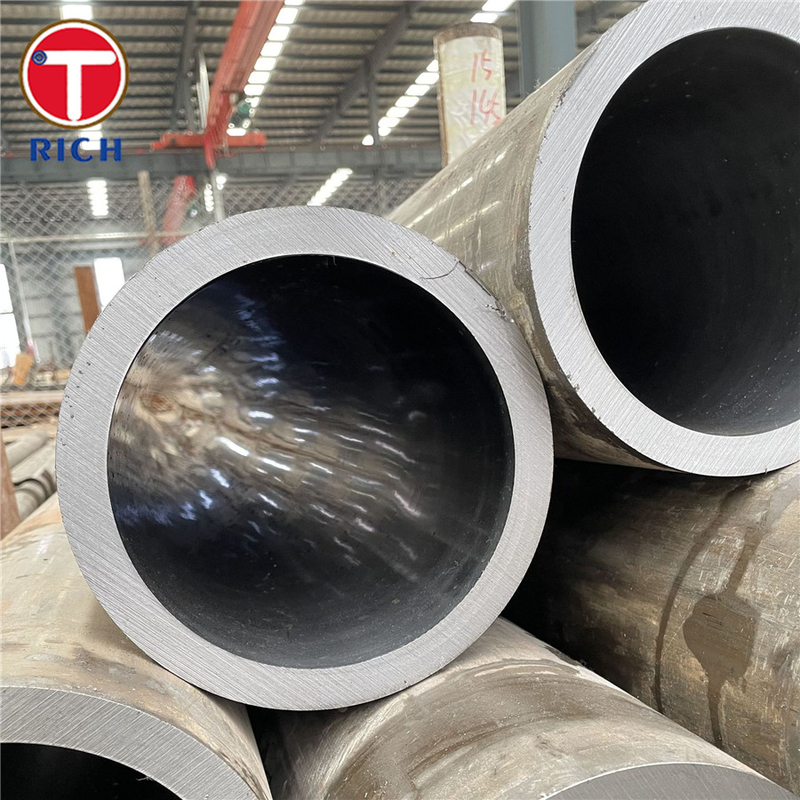

ASTM A209 T1, T1a, T1b Seamless Carbon Steel Tube: Molybdenum Alloy-Steel Tube for Superheater
Material Specification
ASTM A209 is a standard specification for seamless carbon-molybdenum alloy-steel tubes, primarily used in high-temperature applications such as superheaters. These tubes are designed to withstand high pressures and temperatures, making them ideal for use in power plants and other industrial settings.
Key Features
- High Temperature Resistance: The molybdenum alloy composition provides excellent resistance to high temperatures, making these tubes suitable for superheater applications.
- Corrosion Resistance: The alloy composition also offers good resistance to corrosion, ensuring longevity and durability.
- Seamless Construction: Seamless tubes provide better strength and reliability compared to welded tubes.
- Versatility: Available in various grades (T1, T1a, T1b) to suit different application needs.
Chemical Composition
The chemical composition of ASTM A209 tubes varies slightly between the T1, T1a, and T1b grades. Below is a table presenting the typical composition:
| Element |
T1 (%) |
T1a (%) |
T1b (%) |
| Carbon (C) |
0.10-0.20 |
0.10-0.20 |
0.10-0.20 |
| Manganese (Mn) |
0.30-0.80 |
0.30-0.80 |
0.30-0.80 |
| Phosphorus (P) |
≤ 0.025 |
≤ 0.025 |
≤ 0.025 |
| Sulfur (S) |
≤ 0.025 |
≤ 0.025 |
≤ 0.025 |
| Silicon (Si) |
0.10-0.50 |
0.10-0.50 |
0.10-0.50 |
| Molybdenum (Mo) |
0.44-0.65 |
0.44-0.65 |
0.44-0.65 |
Mechanical Properties
The mechanical properties of ASTM A209 tubes are crucial for their performance in high-temperature environments. The table below outlines these properties:
| Property |
T1 |
T1a |
T1b |
| Tensile Strength (MPa) |
≥ 415 |
≥ 415 |
≥ 415 |
| Yield Strength (MPa) |
≥ 205 |
≥ 205 |
≥ 205 |
| Elongation (%) |
≥ 30 |
≥ 30 |
≥ 30 |
Steel Grade
The ASTM A209 specification includes three grades: T1, T1a, and T1b. Each grade offers specific properties that make it suitable for different applications, with slight variations in chemical composition and mechanical properties.
Application
ASTM A209 tubes are primarily used in:
- Superheaters: Due to their ability to withstand high temperatures and pressures.
- Boilers: For efficient heat transfer and durability.
- Heat Exchangers: Where high thermal conductivity and corrosion resistance are required.
Possible Alternative Grades
While ASTM A209 is a popular choice, there are alternative grades that might be considered depending on specific requirements:
- ASTM A213: Another specification for seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes.
- ASTM A335: For seamless ferritic alloy-steel pipe for high-temperature service.
- ASTM A192: For seamless carbon steel boiler tubes for high-pressure service.
