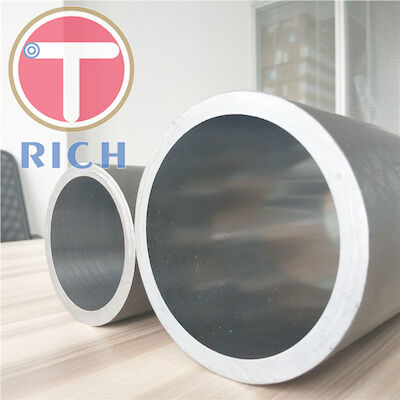

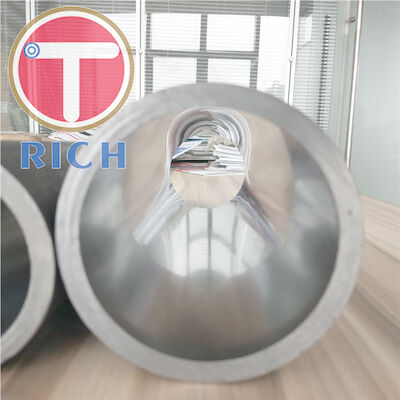

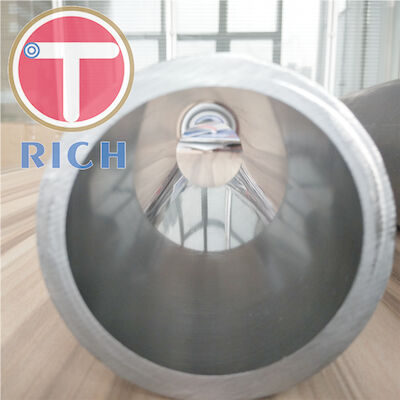

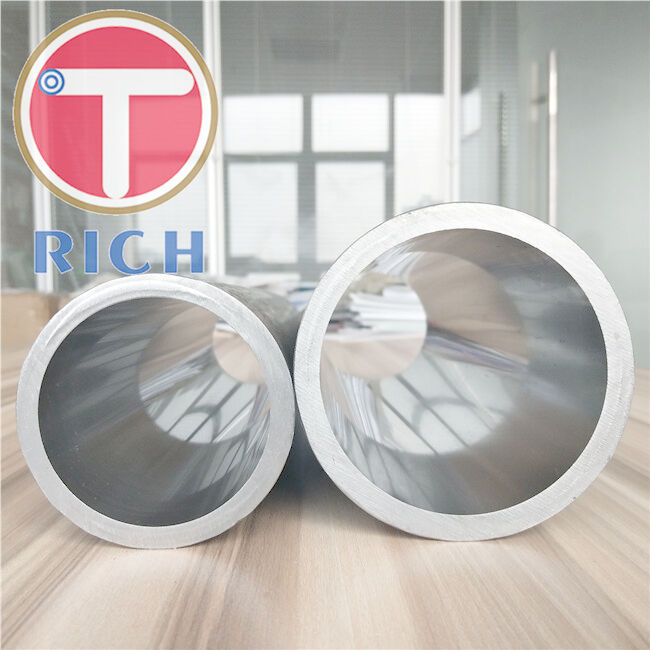

Seamless Honed Precision Steel Tube E355+C EN-10305 TORICH
Basic Properties
Place of Origin:
Zhejinag,China
Brand Name:
TORICH
Certification:
ISO9001, ISO14001 ,TS14969
Model Number:
EN10305-4
Trading Properties
Minimum Order Quantity:
2 tons
Price:
NEGOTIABLE
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
50000 tons per year
Product Summary
Seamless Honed Precision Steel Tube E355+C EN-10305 TORICH TORICH is a professional steel tubes supplier from China with over 23 years manufacturing and exporting experience. Our main products are seamless precision pipe,carbon steel seamless precision pipe,alloy steel seamless precision pipe, ...
Product Details
Highlight:
precision steel tube wt 35mm
,wt 35mm precision steel pipe
,torich precision steel tube
Product Name:
Seamless Honed Precision Steel Tube E355+C EN-10305 TORICH
Keyword:
Precision Steel Tube
Application:
For Gas Cylinder Applications, Oil Cylinders/Telescopic Cylinders
Type:
CDS
Material:
E235, E355,E215 ST52,etc
Shape:
Round
Length:
Max 12000mm
OD:
6-380mm
WT:
1-35mm
Brand:
TORICH
Product Description
Seamless Honed Precision Steel Tube E355+C EN-10305 TORICH
TORICH is a professional steel tubes supplier from China with over 23 years manufacturing and exporting experience.
Our main products are seamless precision pipe,carbon steel seamless precision pipe,alloy steel seamless precision pipe, stainless steel seamless precision pipe.The material we usually use for producing Seamless Honed Precision Steel Tube is10#,20#,1010,1020,1026,ST37,ST44,E235,E215,E355
Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes
Applications: for Gas Cylinder Applications, Oil Cylinders/Telescopic Cylinders
Size Range: O.D.:6-380mm W.T.:1-35mm L:max12000mm
Steel Grade: E235, E355,E215 etc
Note: Special steel grade is also available, according to customer request.
aRm: tensile strength; ReH: upper yield strength; A: elongation after fracture
b 1Mpa=1N/mm2
c Depending on the degree of cold work in the finishing pass the yield strength may nearly be as high as the tensile strength.
For calculation purposes the following relations are recommended:
for delivery condition +C: ReH ≥0.8 Rm
for delivery condition +LC: ReH ≥0.7 Rm
| Mechanical properties at room temperature | |||||||||||||
| Steel Grade | Minimum values for the delivery condition | ||||||||||||
| Steel Name | Steel Nubmer | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) NBK | |||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490-630 | 355 | 22 |
