EN 10305-2 34MnB5 ERW Welded Cold Drawn Precision steel Tubes For Automotive Industry
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 2 tons | Price : | USD888 PER TON |
---|---|---|---|
Packaging Details : | packing in standard marine package. | Delivery Time : | Within 30 days |
Payment Terms : | T/T, L/C, D/A, D/P, Western Union, MoneyGram | Supply Ability : | 50000 tons per year |
Place of Origin: | Zhejinag,China | Brand Name: | TORICH |
---|---|---|---|
Certification: | ISO9001, ISO14001 ,TS14969 | Model Number: | EN10305-1 |
Detail Information |
|||

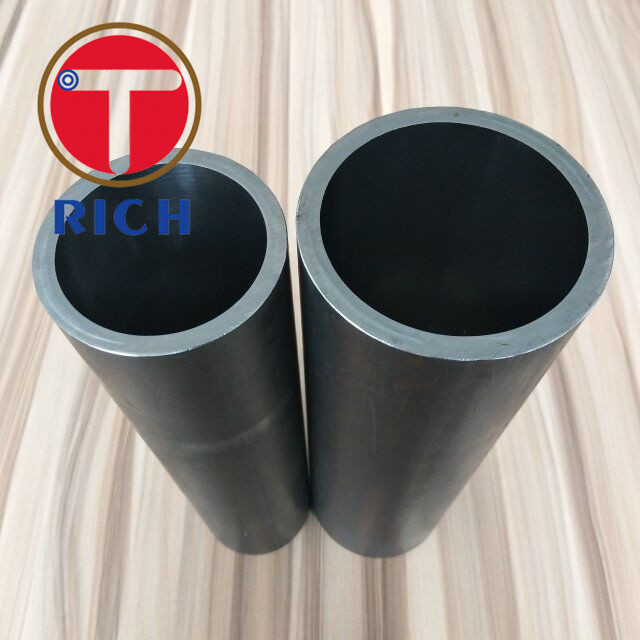

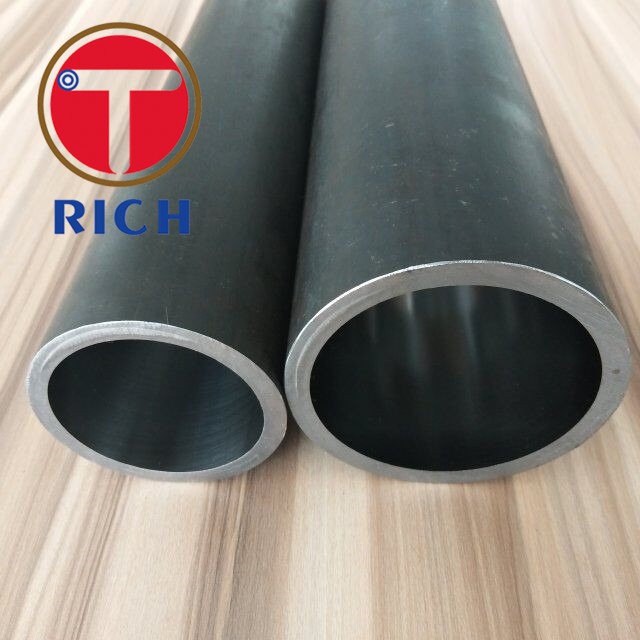

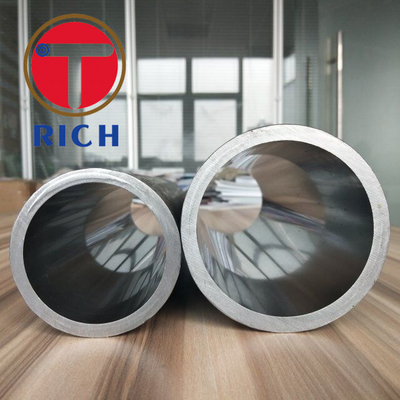

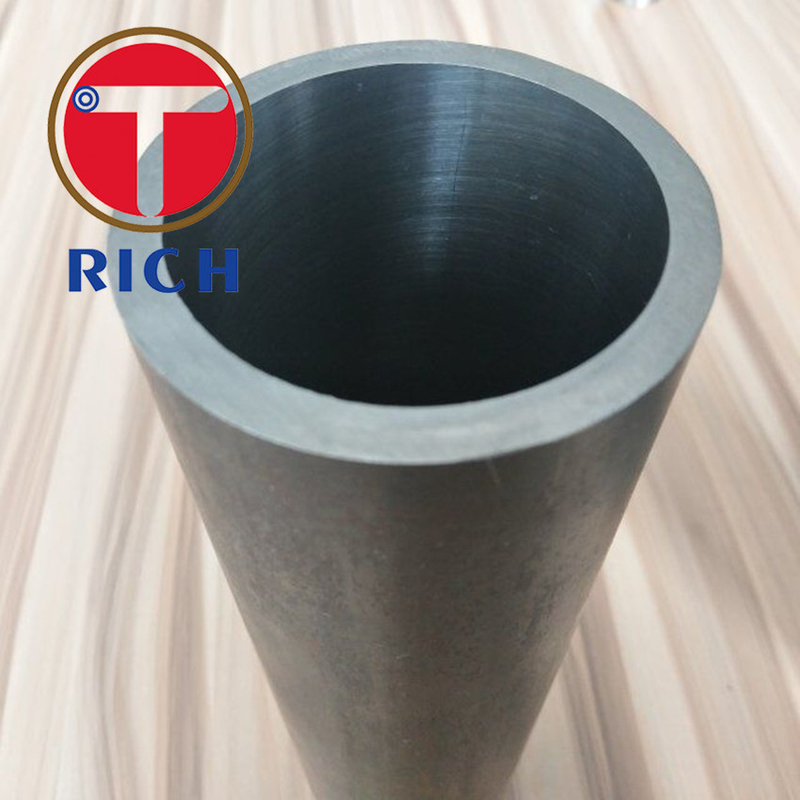

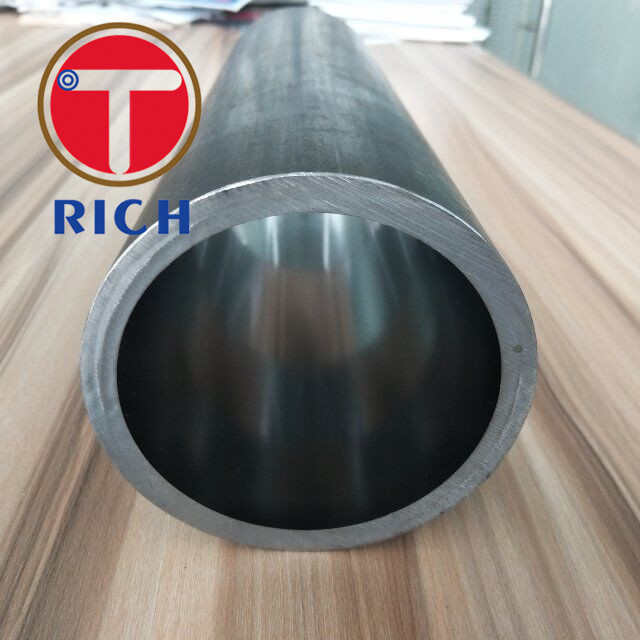

Product Name: | Precision Cylinder 1020 Honed Steel Pipe And Tube | Keyword: | Precision Cylinder 1020 Honed Steel Pipe And Tube |
---|---|---|---|
Application: | For Gas Cylinder Applications, Oil Cylinders/Telescopic Cylinders | Type: | CDS |
Material: | E235, E355,E215 ST52,etc | Shape: | Round |
Length: | Max 12000mm | OD: | 6-380mm |
WT: | 1-35mm | Brand: | TORICH |
High Light: | cds precision steel tube,wt 1mm precision steel tube,wt 1mm precision steel pipe |
Product Description
Size ID*OD (mm) length can be fixed biggest 6M
|
|||
40*50
|
90*110
|
140*170
|
190*215
|
40*55
|
95*110
|
145*170
|
190*220
|
50*60
|
95*115
|
150*170
|
190*225
|
50*65
|
100*110
|
150*175
|
200*220
|
55*70
|
100*114
|
150*180
|
200*225
|
60*70
|
100*115 |
155*180
|
200*230
|
60*75
|
100*120
|
160*175
|
200*245
|
60*78
|
100*125
|
160*180
|
200*250
|
63*73
|
105*125
|
160*185
|
220*250
|
63*75
|
110*125
|
160*190
|
220*270
|
63*76
|
110*130
|
160*195
|
225*250
|
63*78
|
115*130
|
165*190
|
240*273
|
65*80
|
115*135
|
165*205
|
250*290
|
70*80
|
120*140
|
170*200
|
250*300
|
70*82
|
125*140
|
180*200
|
200*213
|
70*85
|
125*145
|
180*205
|
200*216
|
70*90
|
125*150
|
180*210
|
250*266
|
75*90
|
130*150
|
180*215
|
60*45
|
80*92
|
130*155
|
180*220
|
70*57
|
80*95
|
130*160
|
185*205
|
90*80
|
80*100
|
135*160
|
185*215
|
102*90
|
85*100
|
140*160
|
185*220
|
50*40
|
90*105
|
140*165
|
190*210
|
55*40
|
Mechanical properties at room temperature | |||||||||||||
Steel Grade | Minimum values for the delivery condition | ||||||||||||
Steel Name | Steel Nubmer | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) NBK | |||||||
Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | ||
E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490-630 | 355 | 22 |
