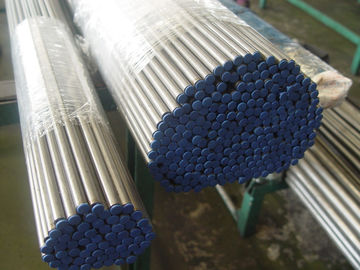

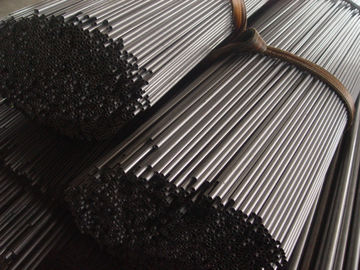

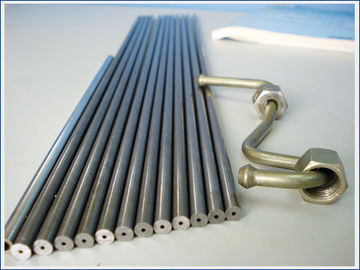

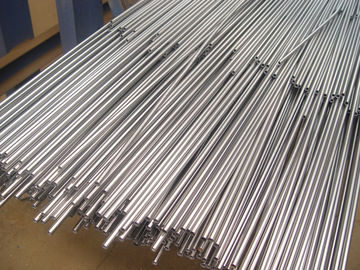

Hydraulic Systems Precision Steel Tubes EN10305-4 / Seamless 10mm Steel Tube

Product Details:
Place of Origin: China
Brand Name: TORICH
Certification: ISO 9001 ISO 14001 EN 10204.3.1 TS 16949 DNV CCS
Model Number: EN10305-4
Payment & Shipping Terms:
Minimum Order Quantity: 5 tons
Price: USD 800-1200 ton
Packaging Details: In Hexagonal Bundles, wth anti-rust oil protection, with seaworthy packing
Delivery Time: 35-60 days
Supply Ability: 60000tons per year

Detail Information

Material: Carbon Steel Steel Grade: E215,E235,E355, Other Materials Upon Agreement With Customers.
Standard: EN10305-4 Shape: Round
Size: 6-100mm Manufacture Technique: Seamless Cold Drawn
Delivery Condition: +N, +C,+LC, +SR, +A
High Light:

precision steel pipe


precision pipes and tubes

Product Description

Quick Detail:

EN10305-4  Seamless precision Bending Steel tubes of Hydraulic Systems
Size: 6-100mm
Delivery condition: +N, +C,+LC, +SR, +A


EN10305-4 E235 E355 Precision Steel Tubes Hydraulic Systems, EN10305-1 E235 E355 Hydraulic Precision Steel Tubes


1. Standard:
Cold drawn Precision Seamless Steel Pipes

2. Steel Grade:
, other materials upon agreement with customers.

3. Production method:
Cold drawing on the seamless steel tubes, to reach high accuracy on the OD and WT tolerance,
with certain heat treatment to achieve better mechanical properties for bending and pressure purposes

4. Size range:
O.D.:5-100mm     W.T.:1-15mm      L:max12000mm

5. Packing:
In Hexagonal Bundles, with anti-rust oil protection, with seaworthy packing

6. Deliver condition:
+NAfter the final cold drawing operation the tubes are normalized in a controlled atmosphere

Please specify the final heat treatment when sending the enquiry.

7. Inspection and testing:
Chemical analysis
Tensile test
Flattening test or Drift expanding test
Dimensional inspection
Visual examination
NDT for verification of leaking tightness




Precision Steel Tubes with high precision for Hydraulic Systems EN10305-4 supplier  china Precision Steel Tubes with high precision for Hydraulic Systems EN10305-4
