EN 10305-2 34MnB5 ERW Welded Cold Drawn Precision steel Tubes For Automotive Industry
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 5 tons | Price : | 900-1200 USD/ton |
|---|---|---|---|
| Packaging Details : | Oil antirust in hexagonal bundles in carton boxes or per request | Delivery Time : | 35-40 days after order confirmed |
| Payment Terms : | L/C, D/A, D/P, T/T | Supply Ability : | 50000 tons per year |
| Place of Origin: | China | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO 9001-2008 ISO 14001 TS 16949 DNV LR | Model Number: | EN10305-1 |
|
Detail Information |
|||
| Material: | Carbon Steel | Steel Grade: | E235 E355 Etc |
|---|---|---|---|
| Standard: | EN10305-1 | Dimension: | O.D.:6-350mm W.T.:1-35mm L:max12000mm |
| Manufacture: | Seamless Cold Drawn/Rolling | Shape: | Round |
| Heat Treatment: | +SR, +C,or +N Specified By Customer | Application: | Cylinder/Telescopic Cylinders/Jack Cylinders/Lifting Systems/Oil Cylinders |
| High Light: | precision steel pipe,precision pipes and tubes |
||
Product Description
High Precision E235 Tube EN10305-1 for Pneumatic Cylinders Tube / Jack Lifting Tools
Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes
Steel tubes for precision applications.

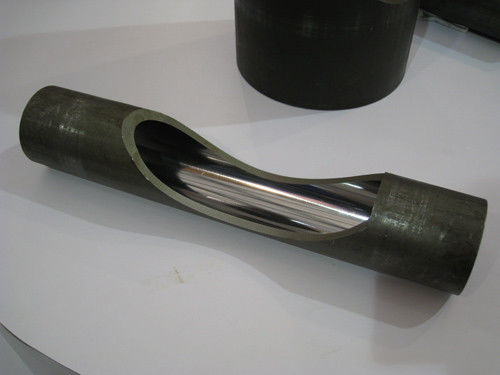

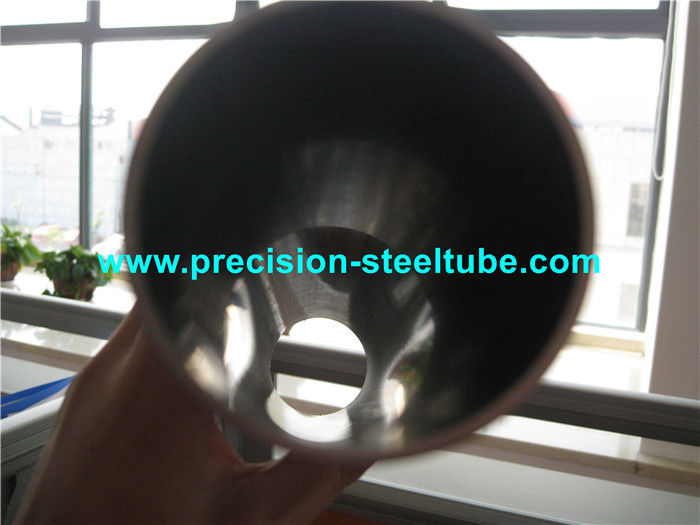

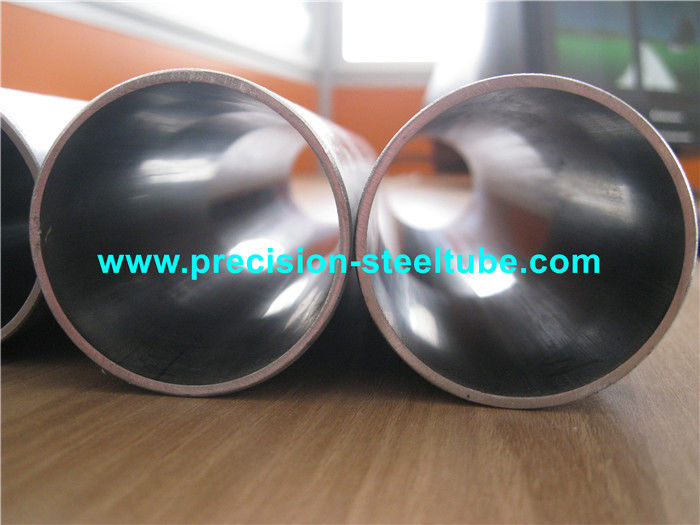

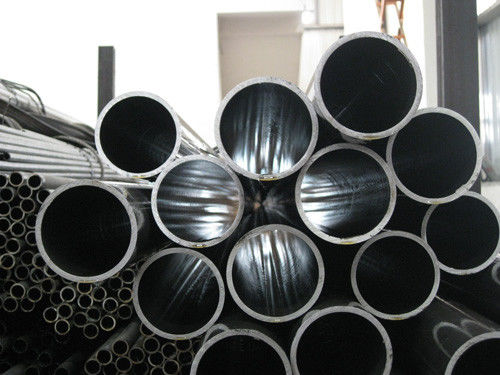

The High Precision Steel Tube is produced by precision cold drawing with a mandrel and die, to keep both OD and ID better tolerance, while the ID is controled with good roughness of max Ra 0.8μm, which can be directly assembled to Pneumatic Cylinder Parts, Hydraulic Cylinder Parts, Jack Lifting Parts or other telescopic Parts.
Size range:
O.D.:6-350mm
W.T.:1-35mm
L:max12000mm
Applications:
Steel Grade and Chemical Compositions:
| Steel Grade | C | Si | Mn | P | S | Al | |
| Steel Name | Steel Number | max | max | max | max | max | min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
| Mechanical properties at room temperature | |||||||||||||
| Steel Grade | Minimum values for the delivery condition | ||||||||||||
| Steel Name | Steel Nubmer | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) NBK | |||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490-630 | 355 | 22 |
Note: Special steel grade is also available, according to customer request.
Production Site:
Shipment & Container Loading:
For Application of:
