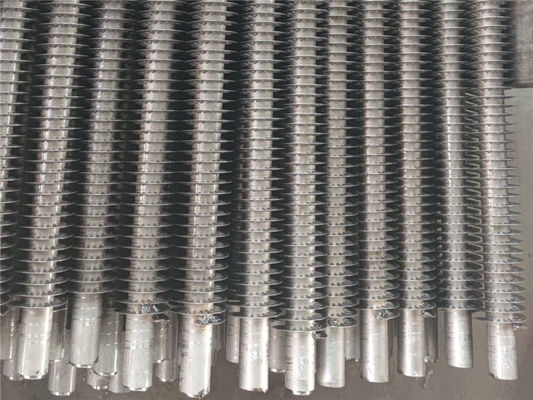

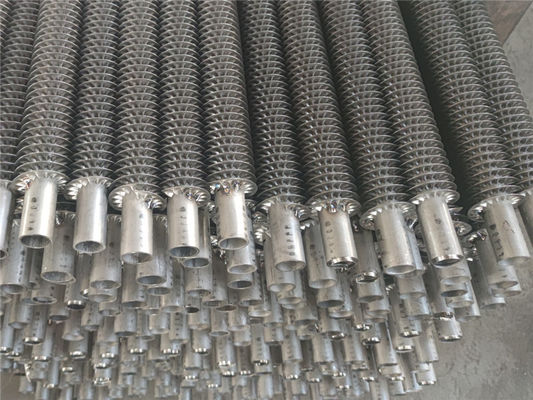

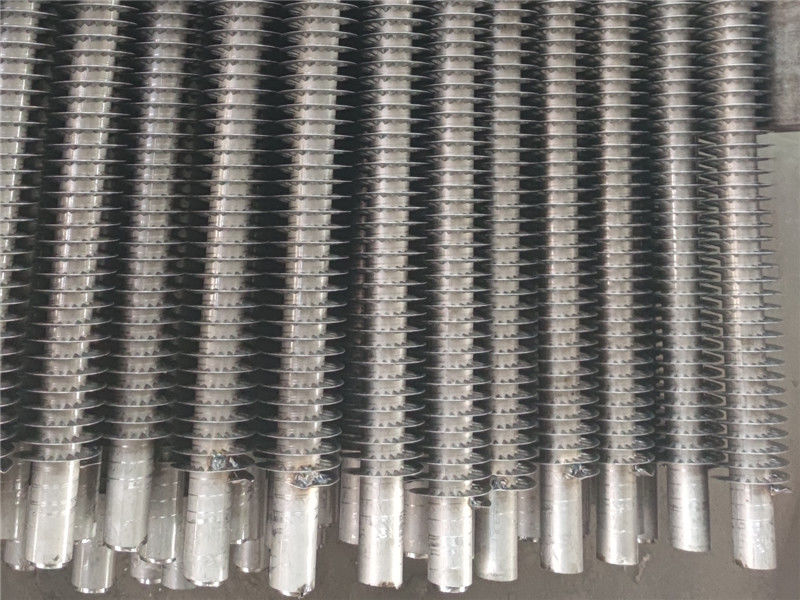

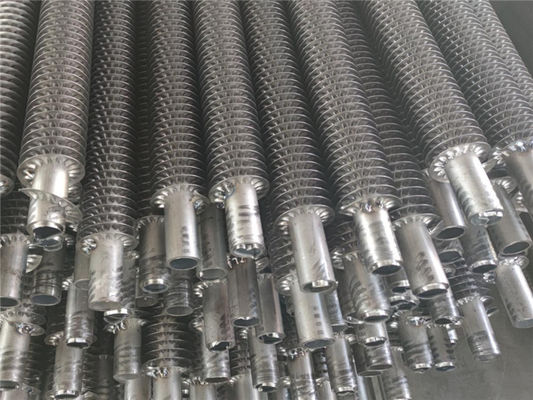

0.3mm Thickness Aluminium Finned Tubes For High Temperature Heat Conduction Oil

Product Description

Extruded Finned Tube And Fin Radiator For High Temperature Heat Conduction Oil

Finned tube radiator (referred to as radiator, also known as heat sink, air heater, air heat exchanger) :

the main equipment in the heat exchange device is to cool the air with refrigerant, or heat the air with heat medium, or to recover the waste heat of air with cold water. The air can be heated by high temperature water, steam or high temperature heat conduction oil, and the air can be cooled by salt water or low temperature water.

Maximum Working Temperature : 545

Fin Materials : Aluminium

Base Tube Diameter: 10mm-51mm

Base Tube Wall Thickness: 1.65mm-3.0mm

Fin Thickness: 0.3mm-1.2mm

Fin Pitch: 2.0mm-15.0mm

Fin High: 5mm-16mm

Base Tube Material: Carbon Steel Tube, Stainless Steel Tube, Alloy Tube

Fin Material : Aluminum

The advantage of finned tubes is that :

when the heat source or cold source is liquid, such as steam, water, thermal oil. When the gas needs to be heated or cooled by the gas, a larger heat transfer area is required. The area of finned tube is several times or even 10 times that of ordinary light tube. This not only increases the heat transfer efficiency of the equipment, but also greatly reduces the heat transfer cost.
