ASTM A519 1010 1020 1026 Precision Seamless Stainless Steel Tube For Hydraulic System
Product Details
ASTM A519 Stainless Steel Tube
,Precision Seamless Steel Tube
,Hydraulic System Seamless Stainless Steel Tube
Torich International Limited is a professional manufacturer and exporter of steel pipes materials.
Our main products are precision seamless steel tube,carbon seamless steel tube,The material we usually use for producing precision seamless steel tube is10#,20#,1010,1020,1026,ST37,ST44,E235,E215,E355.
ASTM A519 is a standard specification for seamless carbon and alloy steel mechanical tubing used in a variety of applications. This specification covers several grades of carbon and alloy steel seamless mechanical tubing. In this article, we will focus on ASTM A519 Precision Seamless Steel Tube and its material, specification, chemical composition, mechanical properties, steel grade, and application.
Material
ASTM A519 Precision Seamless Steel Tube is made from carbon and alloy steel materials.
Specification
The ASTM A519 Precision Seamless Steel Tube specification covers seamless carbon and alloy steel tubing for use in mechanical applications. The tubing is available in different grades, sizes, and shapes.
Chemical Composition
The chemical composition of ASTM A519 Precision Seamless Steel Tube varies depending on the steel grade. The following table shows the chemical composition of some of the commonly used steel grades:
| Steel Grade | Chemical Composition (%) |
|---|---|
| 1010 | C: 0.08-0.13, Mn: 0.30-0.60, P: 0.040 max, S: 0.050 max |
| 1020 | C: 0.18-0.23, Mn: 0.30-0.60, P: 0.040 max, S: 0.050 max |
| 1025 | C: 0.22-0.28, Mn: 0.30-0.60, P: 0.040 max, S: 0.050 max |
| 1035 | C: 0.32-0.38, Mn: 0.60-0.90, P: 0.040 max, S: 0.050 max |
| 1045 | C: 0.43-0.50, Mn: 0.60-0.90, P: 0.040 max, S: 0.050 max |
Mechanical Properties
The mechanical properties of ASTM A519 Precision Seamless Steel Tube vary depending on the steel grade. The following table shows the mechanical properties of some of the commonly used steel grades:
| Steel Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| 1010 | 325 | 180 | 20 |
| 1020 | 410 | 245 | 15 |
| 1025 | 490 | 275 | 12 |
| 1035 | 560 | 315 | 10 |
| 1045 | 630 | 415 | 8 |
Steel Grade
ASTM A519 Precision Seamless Steel Tube is available in different steel grades, including:
- 1010
- 1020
- 1025
- 1035
- 1045
Application
ASTM A519 Precision Seamless Steel Tube is widely used in mechanical applications such as:
- Automotive parts
- Hydraulic cylinders
- Heavy equipment
- Agricultural equipment
- Machinery parts

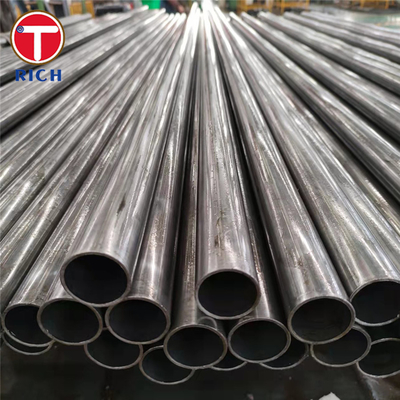

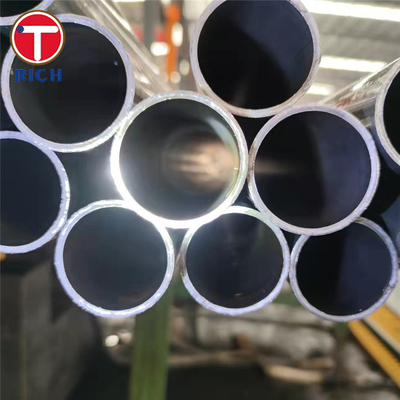

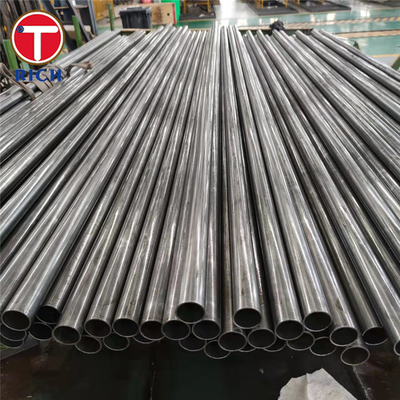

Product show for Precision Seamless Steel Tube:
Work flow for Precision Seamless Steel Tube:
Workshop for Precision Seamless Steel Tube:
Certification for Precision Seamless Steel Tube:
FAQ:
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-45 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
-
