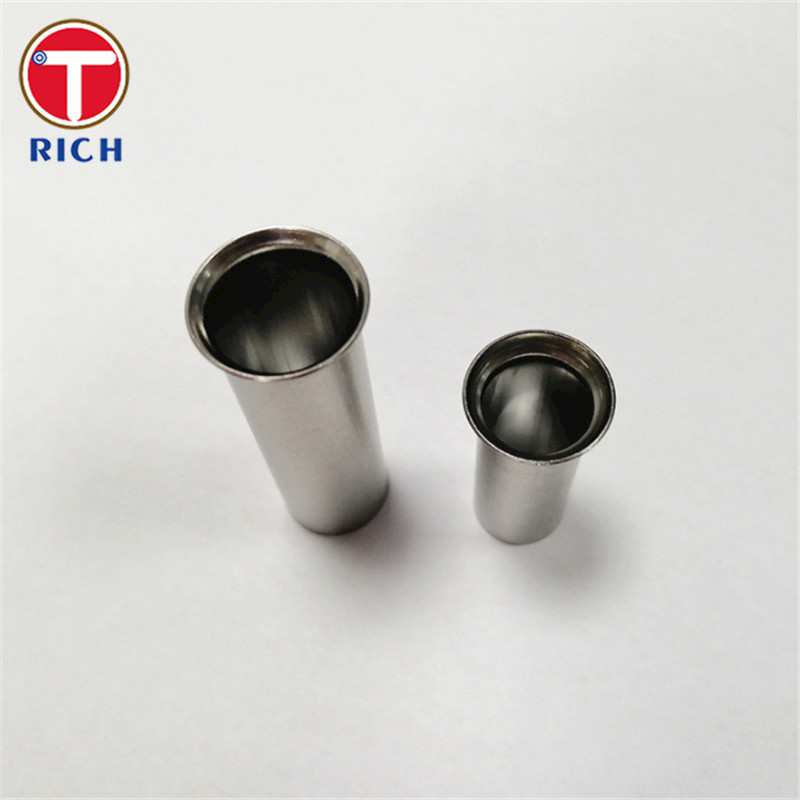

304 316 Stainless Steel Tube Seamless Tapered Swage Flaring Bending
Product Details
Flaring Bending Stainless Steel Tube
,Tapered Swage Stainless Steel Tube
,316 Stainless Steel Seamless Tube
304 316 Tapered Swage Flaring And Bending Steel And Stainless Steel Tubing
| Porduct Name | capillary tube |
| Size | 0.4mm-16mm |
| Standard | customized |
| Wall thickness | 0.1mm-2mm |
| Material | 304/304L,316/316L,321 |
| Application | heat exchanger;aviation and aerospace industey;phamceutical industry;insteru mentation tubes;Autoparts etc. |
| Advantages | customized;high quality |
Mechanical Properties
The mechanical properties of tapered swage flaring bending stainless steel round tubes made of 304 and 316 stainless steel are as follows:
| Material | Mechanical Properties |
| 304 | Tensile Strength: 75 ksi (515 MPa)<br>Yield Strength: 30 ksi (205 MPa)<br>Elonagation: 40% |
| 316 | Tensile Strength: 75 ksi (515 MPa)<br>Yield Strength: 30 ksi (205 MPa)<br>Elonagation: 40% |
Chemical Composition
The chemical composition of tapered swage flaring bending stainless steel round tubes made of 304 and 316 stainless steel is as follows:
| Material | Chemical Composition |
|---|---|
| 304 | Carbon: ≤0.08%<br>Chromium: 18.00-20.00%<br>Nickel: 8.00-11.00%<br>Manganese: ≤2.00%<br>Silicon: ≤1.00%<br>Phosphorus: ≤0.045%<br>Sulfur: ≤0.030% |
| 316 | Carbon: ≤0.08%<br>Chromium: 16.00-18.00%<br>Nickel: 10.00-14.00%<br>Manganese: ≤2.00%<br>Silicon: ≤1.00%<br>Molybdenum: 2.00-3.00%<br>Phosphorus: ≤0.045%<br>Sulfur: ≤0.030% |
Specification
The specification of tapered swage flaring bending stainless steel round tubes is as follows:
- Outside Diameter Range: 1/4" - 4"
- Wall Thickness: 0.035" - 0.120"
- Length: Random Lengths or Cut to Size
Uses: medical, beauty equipment, temperature probe tube, rivet tube, gasoline cylinder tube, cylinder tube and other industries
Can be processed according to customer requirements and drawings: reducing tip, punching, reducing diameter, flaring,
bending, shrinking, sharpening, head tube (flat head & round head)
Product category :Stainless steel precision capillary, needle tube, smoke tube, probe tube, stainless steel seamless tube,
product welded pipe decorative welded pipe
Material: SUS444, 430, 410, 409, 316L, 316, 304L, 304, 301, 202, 201 and other materials
Specification range: Always have an outer diameter of 0.15-10mm
Wall thickness: 0.03-3.0mm
Non-standard specifications can be customized
Conditions: soft state, hard state (pickled surface, polished surface.)
Production equipment: First, we have several sets of Taiwan TIG welded pipe production line capillary cold drawing machine,
finishing and straightening machine, high-speed pipe cutting machine, vacuum annealing furnace and other equipment, as well
as non-destructive flaw detector, pressure testing machine, tensile testing machine, three Standard projector and other testing
equipment to ensure quality.
Hardness requirements: The company has a complete production line, a large quenching furnace, and a light unwinding furnace
to meet customers' different requirements for capillary hardness
-
