Hydraulic Pressure Seamless Welded Stainless Pipe For Fluid Gas Transport TP304

Basic Information
Place of Origin: ZHEJIANG, CHINA
Brand Name: TORICH
Certification: ISO9001
Model Number: ASTM A312
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: in bundles or in wooden box
Delivery Time: 4-8weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60000 Tons Per year
Detail Information
Product Name: ASTM A312 TP304 Seamless Welded Stainless Pipe For Fluid Gas Transport Hydraulic Pressure Standard: ASTM
Type: Seamless And Welded Steel Grade: TP304H TP309H TP310H TP316H TP321H TP347H TP348H TP304 TP309S TP310S TP316 TP321 TP347 TP348
OD: 6-219 Mm WT: 1-35mm
Application: Fluid Gas Transport Hydraulic Pressure Surface: Bright Annealing
Length: Max12000mm Brand: TORICH
High Light:

Seamless Welded Stainless Pipe

,

Fluid Gas Transport Welded Stainless Pipe

,

Hydraulic Pressure Stainless Steel Welded Tube


Product Description

ASTM A312 TP304 Seamless Welded Stainless Pipe for Fluid Gas Transport Hydraulic Pressure



TORICH is a Professional Manufacturer of ASTM A312 TP304 Seamless Welded Stainless Pipe, which is for Seamless and Welded Austenitic Stainless Steel Tubing for General Service



We can manacture stainless steel tubes based on the following technical standard:
ASTM A213,ASTM A312,ASTM A511,ASTM A269,ASTM A249,ASTM A358


The Stainless Steel Grade can cover the following:
ASTM A213 TP304 TP304L TP304H TP310S TP316 TP316L TP316H TP317 TP347
ASTM A312 TP304H TP309H TP310H TP316H TP321H TP347H TP348H TP304 TP309S TP310S TP316 TP321 TP347 TP348

ASTM A511 MT304, MT304L, MT309, MT309S, MT310S, MT316, MT316L, MT317,MT321, MT347

ASTM A269 TP304 TP304L TP321 TP347 TP316 TP316L TP348 TP317

ASTM A249 TP304 TP304L TP321 TP347 TP316 TP316L TP348 TP317

ASTM A358 TP304



Producsts Name ASTM A312 TP304 Seamless Welded Stainless Pipe for Fluid Gas Transport Hydraulic Pressure
Technical Standard ASTM A312 TP304 Seamless Welded Stainless Pipe
Steel Grade/Steel Numbe TP304H TP309H TP310H TP316H TP321H TP347H TP348H TP304 TP309S TP310S TP316 TP321 TP347 TP348
Size Range OD: 6mm-219mm
WT: 1-35mm
Length: max 12000mm
Cutting Length: available according to customer's requirement.
Delivery Condition Bright Annealing.
Pickling and Solution Heat Treatment.
Surface Treatment/Surface Condition Bright Surface.
Dull Surface.
Polish Surface.
Tube Inspection 100% Dimensional Check
100% Eddy Current Test (ETD)
100% Ultrasonic Test (UTD
Mechanical Properties Inspection, Internal Lab test report or Third Party Inspection Report.
Inspection Istrument Outside micrometer, wall thickness micrometer, inside dial gauge, vernier caliper, tensile testing machine, hardness tester, eddy current flaw detector, metallographic analyzer, surface roughness meter
Tube Application Fluid and Gas Transport Industry Hydraulic Pressure
Production Process Round steel warehousing → round steel inspection → round steel sawing → central hole drilling → perforation → pickling → cold drawing or cold rolling (finish rolling) → annealing → straightening → head and tail cutting → finished product inspection → packaging → delivery



Chemical composition for ASTM A312 TP304 Seamless Welded Stainless Pipe

Material C Mn P S Si
TP321 0.08 2.00 0.045 0.030 1.00
TP321H 0.04-0.10 2.00 0.045 0.030 1.00
TP347 0.08 2.00 0.045 0.030 1.00
TP347H 0.04-0.10 2.00 0.045 0.030 1.00
TP304 0.08 2.00 0.045 0.030 1.00
TP304L 0.035 2.00 0.045 0.030 1.00
TP304H 0.04-0.10 2.00 0.045 0.030 1.00
TP309H 0.04-0.10 2.00 0.045 0.030 1.00
TP309S 0.08 2.00 0.045 0.030 1.00
TP310H 0.04-0.10 2.00 0.045 0.030 1.00
TP310S 0.08 2.00 0.045 0.030 1.00
TP316 0.08 2.00 0.045 0.030 1.00
TP316L 0.035 2.00 0.045 0.030 1.00
TP316H 0.040-0.10 2.00 0.045 0.030 1.00
TP347 0.08 2.00 0.045 0.030 1.00
TP348 0.08 2.00 0.045 0.030 1.00
TP348H 0.04-0.10 2.00 0.045 0.030 1.00



Materials and Manufacture ASTM A312 TP304 Seamless Welded Stainless Pipe

Manufacture:

The pipe shall be manufactured by one of following processes

Seamless pipe shall be made by a process that does not involve welding at any stage of production.

Welded pipe shall be made using an automatic welding process with no addition of filler metal during the welding process.

Heavily cold-worked pipe shall be made by applying cold working of not les than 35% reduction in thickness of both wall and weld to a welded pipe prior to the final anneal.No filler shall be 100% radiographically inspected in accordance with the requirements of ASTM Boiler and Pressure Vessel Code,Section VII,Division 1,lastest revision.

Welded pipe and HCW pipe of NPS 14 and smaller shall have a single longitudinal weld.Welded pipe and HCW pipe of a size larger than NPS 14 shall have a single longitudinal weld or shall be produced by forming and welding two longitudinal sections of flat stock when approved by the purchaser.All weld tests,examinations,inspections,or treatments shall be performed on each weld seam.

At the option of the manufacturer,pipe shall be either hot finished or cold finished.

The pipe shall be free of scale and contaminating exogenous iron particles.Pickling,blast ing,or surface finishing is not mandatory when pipe is bright annealed.The purchaser is permitted to require that a passivating treatment be applied to the finished pipe.

Heat Treatment-All pipe shall be furnished in the heat -treated condition in accordance with the requirements of Table2.Alternatively,for seamless pipe,immediately following hot forming while the temperature,pipes may be individually quenched in water or rapidly cooled by other means.

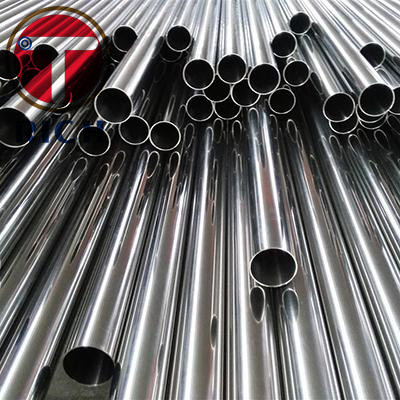

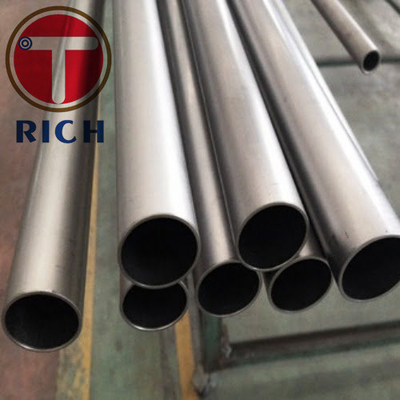

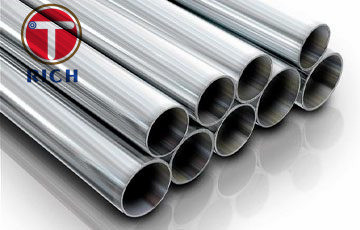

Prodution Pictures for ASTM A312 TP304 Seamless Welded Stainless Pipe

ASTM A312 TP304 Seamless Welded Stainless PipeASTM A312 TP304 Seamless Welded Stainless Pipe



Products Application of ASTM A312 TP304 Seamless Welded Stainless Pipe

Products Application of ASTM A312 TP304 Seamless Welded Stainless PipeProducts Application of ASTM A312 TP304 Seamless Welded Stainless Pipe



Production Process for ASTM A312 TP304 Seamless Welded Stainless Pipe

Production Process for ASTM A312 TP304 Seamless Welded Stainless Pipe



Production Workshop for ASTM A312 TP304 Seamless Welded Stainless Pipe

Production Workshop for ASTM A312 TP304 Seamless Welded Stainless Pipe

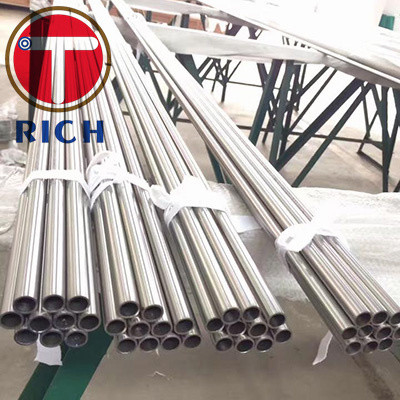

Delivery and Packing of ASTM A312 TP304 Seamless Welded Stainless Pipe

Delivery and Packing of ASTM A312 TP304 Seamless Welded Stainless Pipe
