12M Carbon Small Diameter Precision Seamless Steel Tube

Name: 12M Carbon Small Diameter Precision Seamless Steel Tube
Brand: Torich
SKU: Torich
Rating: 5 (174 reviews)

Minimum Order Quantity :	2Ton	Packaging Details :	PACKING WOODEN CASE
Payment Terms :	D/A, D/P, Western Union, MoneyGram

Place of Origin:	China	Brand Name:	Torich
Certification:	ISO9001

Detail Information
Application:	Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, OI	Section Shape:	Round
Outer Diameter:	20mm, 13.7mm-1219.2 Mm	Thickness:	2.24 - 45.24 Mm
Length:	12M	Material:	ASTM A106/A53 Gr.B
High Light:	small diameter precision seamless steel tube , carbon precision seamless steel tube , precision carbon seamless steel tube

Product Description

carbon small diameter precision seamless steel tube

Product name	Material	Standard	Size(mm)	Application
Low temperature tube	16MnDG 10MnDG 09DG 09Mn2VDG 06Ni3MoDG ASTM A333	GB/T18984- 2003 ASTM A333	OD:8-1240* WT:1-200	Apply to - 45 ℃ ~ 195 ℃ low temperature pressure vessel and low temperature heat exchanger pipe
High-pressure boiler tube	20G ASTMA106B ASTMA210A ST45.8-III	GB5310-1995 ASTM SA106 ASTM SA210 DIN17175-79	OD:8-1240* WT:1-200	Suitable for manufacturing high pressure boiler tube, header, steam pipe, etc
Petroleum cracking tube	10 20	GB9948-2006	OD: 8-630* WT:1-60	Used in oil refinery furnace tube, heat exchanger tube
Low medium pressure boiler tube	10# 20# 16Mn,Q345	GB3087-2008	OD:8-1240* WT:1-200	Suitable for manufacturing various structure of low and medium pressure boiler and locomotive boiler
General structure of the tube	10#,20#,45#,27SiMn ASTM A53A,B 16Mn,Q345	GB/T8162- 2008 GB/T17396- 1998 ASTM A53	OD:8-1240* WT:1-200	Apply to the general structure, engineering support, mechanical processing, etc
Oil casing	J55,K55,N80,L80 C90,C95,P110	API SPEC 5CT ISO11960	OD:60-508* WT:4.24-16.13	Used for extraction of oil or gas in oil Wells casing, used in oil and gas well sidewall

DIN2391 standard steel and heat treatment process delivery conditions:
Delivery Condition	Heat Treatment Process
+C	Cold drawn / hard. After the final cold forming no heat treatment.
+LC	Cold drawn / soft. After the final heat treatment limiting deformation cold drawn, allowing a degree of cold deformation
+SR	Steel heat treatment is applied after the last cold deformation process, the result of state steel after due process, the residual stress deformation and machining makes a certain degree of difficulty increases.
+A	In the final step of the steel pipe after cold deformation, placed in a controlled atmosphere furnace for annealing.
+N	In the final step of the steel pipe after cold deformation, placed in a controlled atmosphere furnace at a temperature above the phase transition point to continue annealing.

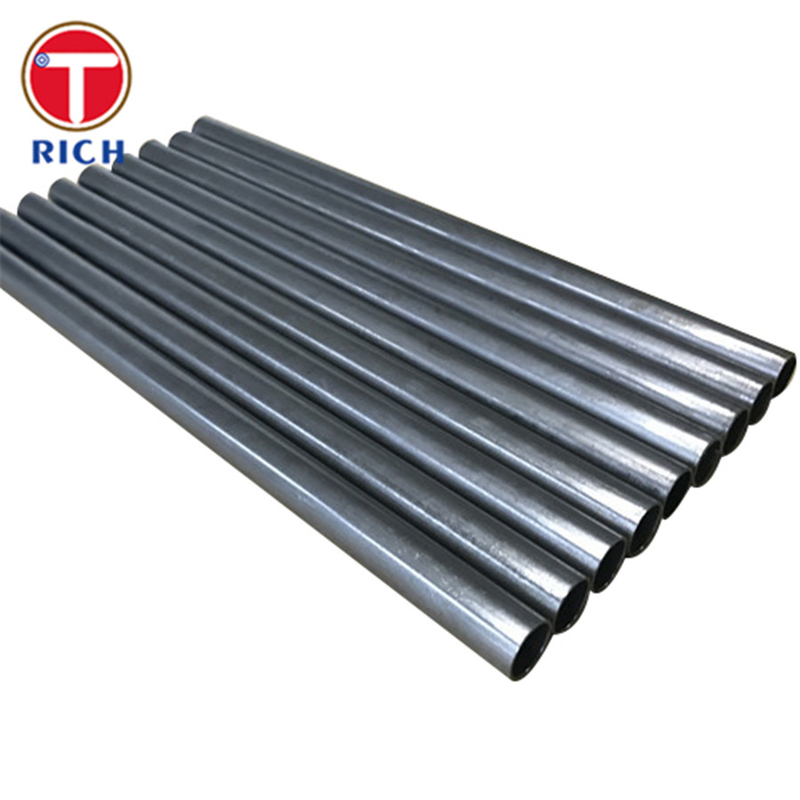

12M Carbon Small Diameter Precision Seamless Steel Tube 0

12M Carbon Small Diameter Precision Seamless Steel Tube 1
