316 Stainless Steel Quilted Grinding Hydraulic Cylinder Pipe

Minimum Order Quantity : 1 Ton Price : USD 3000-4000 Per Ton
Packaging Details : In bundles Delivery Time : 4-6 Weeks
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 500 Tons Per Month
Place of Origin: Zhejiang China Brand Name: TORICH
Certification: ISO 9001 Model Number: 316

Detail Information

Section Shape: Round Technique: Cold Drawn
Thickness: 4 - 50 Mm Outer Diameter(round): 30 - 250 Mm
Application: Hydraulic Pipe Secondary Or Not: Non-secondary
Length: Random Or Fixed End Protector: Plastic Pipe Cap
High Light:

precision hydraulic cylinder tube


316 stainless steel hydraulic cylinder pipe


precision hydraulic cylinder pipe

Product Description

316 Stainless Steel Quilted Grinding Pipe Hydraulic Cylinder Tube


Stainless steel quilted pipe can be directly used for hydraulic cylinder liner, cylinder block,

cylinder pull rod and other hydraulic cylinder products without processing.


High quilting accuracy,

inner hole precision H7-H10,

inner hole roughness less than 0.63nm,

standard straightness less than 0.3mm/m.


High precision stainless steel quilted pipe is used in hydraulic, cylinder, pipeline, textile, printing,

shock absorption, precision bushing and other high precision machinery fields.

Stainless steel tube surface grinding girders and piston seal is the main factor causing the hydraulic

oil cylinder have diarrhoea, if the grinding tube produce longitudinal girders, mark,

even if the update of the piston seal, also cannot effectively troubleshoot,

quilted surface grinding tube line mainly check the dimensional tolerance,

position tolerances whether meet the technical requirements, with or without longitudinal tensile mark,

and mark depth measurement, adopt corresponding solutions.

1. There are trace changes and shallow tensile marks in the stainless steel quilted pipe,

which can be repaired by honing process or coating.

2. If the surface of stainless steel quilting pipe is seriously worn and there are deep longitudinal tensile marks,

it should be mapped according to the real objects and reproduced and replaced by a professional

manufacturer's quilting pipe manufacturing process. Recent data show that TS311 can be used to reduce wear and

repair the large-diameter quilting pipe. Anti-wear repair agent is mainly used for repairing worn and scratched metal parts.


Quilted pipe repair grinding process, alloy blade on the surface scratch out a depth of 1 mm above the groove,

and then use clean grooved surface, with grinding tuned pipe inner contour plate girders TS311 antifriction repairing

adhesive coat in good polished surface, forcibly leveling, ensure the compaction, and higher than that of quilted grinding

tube surface, after being solidified, polished and set aside the finishing allowance.

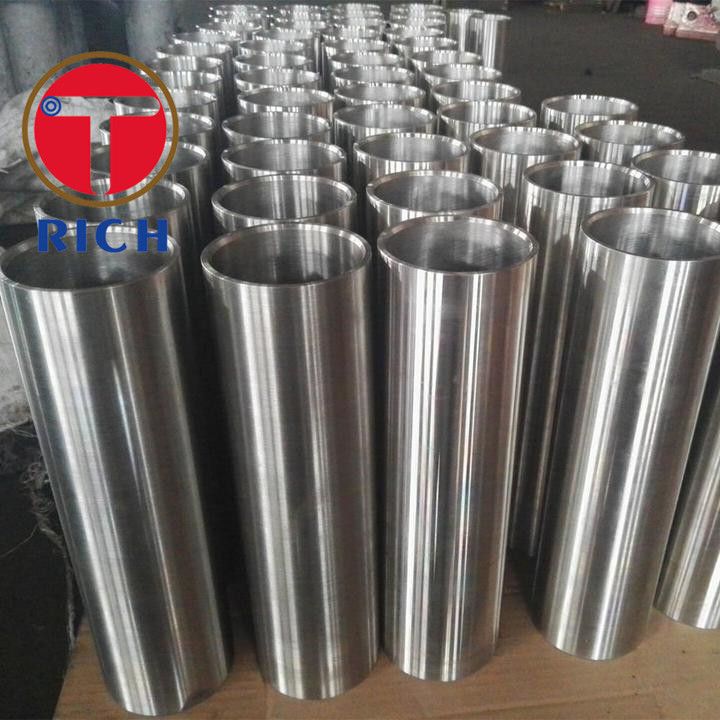

316 Stainless Steel Quilted Grinding Hydraulic Cylinder Pipe 0
