1020 ST52 Hydraulic Cylinder Honed Hollow Piston Rod 5mm - 420mm
Basic Properties
Place of Origin:
ZHEJIANG, CHINA
Brand Name:
TORICH
Certification:
ISO9001, ISO14001, TS16949
Model Number:
EN10305-1
Trading Properties
Minimum Order Quantity:
1Tons
Price:
3000-4000USD PER TON
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
2000Tons per Year
Product Summary
1020 ST52 Honed Hollow Piston Rods TORICH has NICE quality of 1020 Honed Hollow Piston Rods,ST52 Honed Hollow Piston Rods,Honed Hollow Piston Rods. keyword: Honed Hollow Piston Rods Type: Solid / Hollow Material: CK45, 20MnV6,42CrMo4, 40Cr D.: 40-400mm W.T: ≥5mm Alloy Or Not: Non-alloy Length: Up To ...
Product Details
Highlight:
ST52 Honed Hollow Piston Rod
,Hollow Piston Rod 1020
,Chromed Hydraulic Cylinder Rod
Keyword:
Honed Hollow Piston Rods
Standard:
EN10305-1
Material:
1010,1020,st52
Heat Treatment:
Annealed, QT
Surface:
Chromed, Nickeled
OD:
5mm-420mm
WT:
0.5mm - 50mm
Length:
3-9m
Usage:
Hydraulic Cylinder
Type:
Solid / Hollow
Product Description
1020 ST52 Honed Hollow Piston Rods
TORICH has NICE quality of 1020 Honed Hollow Piston Rods,ST52 Honed Hollow Piston Rods,Honed Hollow Piston Rods.
keyword: Honed Hollow Piston Rods
Type: Solid / Hollow
Material: CK45, 20MnV6,42CrMo4, 40Cr
D.: 40-400mm
W.T: ≥5mm
Alloy Or Not: Non-alloy
Length: Up To 12000mm According To Customer's Requirement
Place Of Origin: Zhejiang, China (Mainland)
Surface Treatment : Chromed, Nickeled
Heat Treatment: Annealed, QT
Regular sizes we can produce:
60*50*5000mm
70*60*3500mm
70*60*4000mm
80*70*3500mm
80*70*4000mm
80*70*5500mm
80*70*7500mm
90*80*2000mm
90*80*3500mm
90*80*5500mm
90*80*7500mm
90*75*7500mm
| CHEMICAL COMPOSITION(%) | ||||||||||
| Steel Grade | C% | Mn% | Si% | S% | P% | V% | Ni% | Cr% | Mo% | Cu% |
| 1010 | 0.07-0.13 | 0.3-0.6 | 0.17-0.37 | ≤0.015 | ≤0.025 | ≤0.08 | ≤0.15 | ≤0.15 | ||
| 1020 | 0.18-0.23 | 0.3-0.6 | 0.17-0.37 | ≤0.015 | ≤0.025 | ≤0.08 | ≤0.15 | ≤0.15 | ||
| ST52 | ≤0.18 | ≤1.7 | ≤0.5 | ≤0.025 | ≤0.03 | ≤0.15 | ≤0.5 | ≤0.3 | ≤0.1 | ≤0.3 |
| MECHANICAL PROPERTIES | ||||||||||
| Material | Tensile Strength Rm (Mpa) | Yield Strength Rel (Mpa) | Elogation A% | CHARPY | CONDITION | |||||
| 1010 | 335 | 205 | 24 | - | Normalized | |||||
| 1020 | 410 | 245 | 20 | - | Normalized | |||||
| ST52 | 470-630 | 345 | 20 | - | Normalized | |||||
| SUPPLY CONDITION | Ground and chrome plated |
| CHROME THICKNESS | 20 to 30 micron |
| SURFACE ROUGHNESS | Ra≤0.2 micron and Rt≤2 micro |
| TOLERANCE ON DIA | ISO f7 on the diameter |
| OVALITY | Half of the tolerance ISO f7 |
| STRAGHNESS | ≤0.2MM/M |
| SURFACE HARDNEDD | 850-1150 HV(vickers 100g) |
| COHESION | No craks,breaking or detaching after thermic shock (warming up at 3200 celsius degrees and cooling in water) |
| POROSITY | Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10 |
| CORROSION RESISTANCE | Test in natural salt spray according to ASTM B117-120hours |
| Results evaluation | accordin to ISO4540 RATING7-10 |
| WELDABILITY | Good |

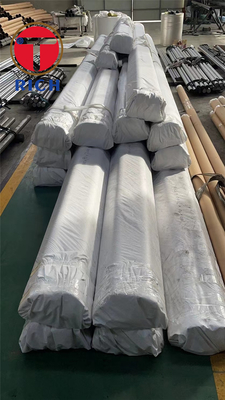

| PACKING | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| CERTIFICATE | All certificate related with material heat treatment and plating is required |
Regular sizes we can produce:
100*90*2000mm
100*90*3500mm
100*90*5500mm
100*90*7000mm
100*90*7500mm
100*85*7500mm
110*100*2000mm
110*100*3500mm
110*100*5500mm
110*100*7000mm
110*95*7500mm
120*110*3500mm
120*110*4500mm
120*110*5500mm

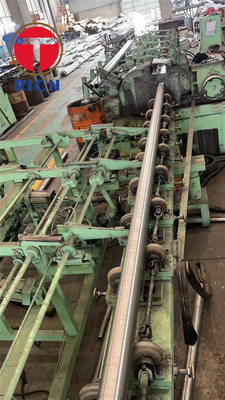

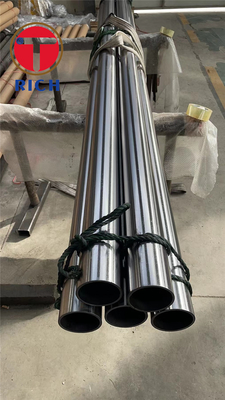

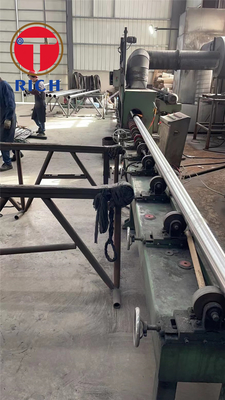

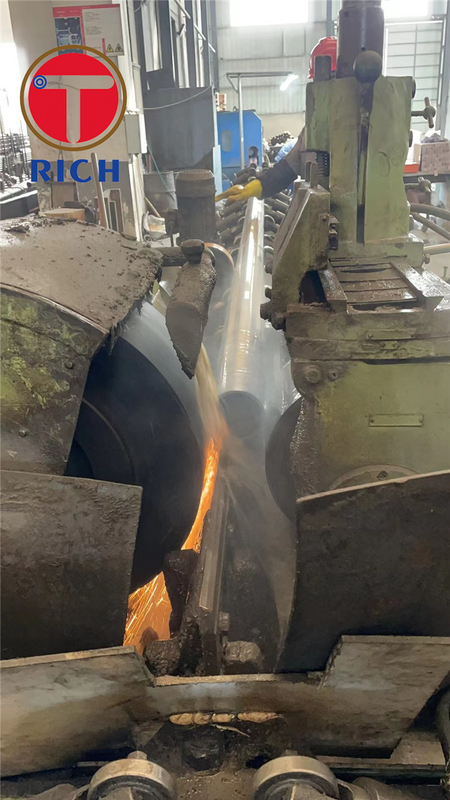

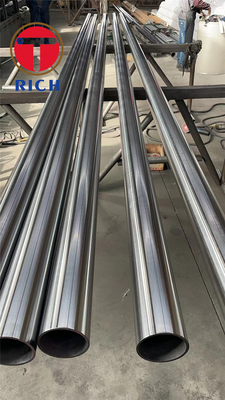

Product show:
