CK45 Shock Absorber ISO9001 BKS Honed Steel Tube Seamless

Minimum Order Quantity : 5Tons Packaging Details : Tubes are packed in wooden boxes or hexagonal bundles.
Delivery Time : 30-45 work days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 2000Tons per Year
Place of Origin: ZHEJIANG, CHINA Brand Name: TORICH
Certification: ISO9001, ISO14001, TS16949 Model Number: EN10305-1

Detail Information

Keyword: BKS Honed Steel Tube Grade: ST35 ST37 ST52 E235 E355
OD: 15 - 200 Mm WT: 0.8 - 16 Mm
Length: Max 12000mm Technique: Cold Drawn Seamless
Application: Shock Absorber Gas Cylinder Delivery Condition: +C, +LC, +SC, +A, +N
High Light:

CK45 Shock Absorber Seamless Pipe

,

BKS Honed Steel Tube

,

CK45 Shock Absorber Honed Steel Tube

Product Description

TORICH Seamless Pipe CK45 Shock Absorber ISO9001 BKS Honed Steel Tube

ST52 E355 BKS Shock Absorber Using CK45 AISI1020 AISI1045 CDS Honed Tube

Material:
Carbon Steel Tube
Outer Diameter:
30-250mm
Wall Thickness:
2-30mm
Material Grade:
ST52,E355,CK45,A106,A53,SKTM11A,STKM13A,STKM13C,S45C,and so on
Delivery Condition:
BK/BKS/GBK/NBK
Delivery time:
within 20-30 days after receiving prpayment
Trade Terms:
any other China main port



Manufacture Method:

Cold drawn, hot rolled+deep hole bored


Certification:

ISO9001, SGS,



Standard&Grade:

DIN2391-2 ST52,EN10305-1 E355,C45E,25CrMo4,42CrMo4, CK45,E410, E470,ASTM A519 SAE1020,SAE1026,SAE1045,SAE1518,SAE1541, SAE4130,SAE4140,SAE4145,SAE4340,etc.



ID Tolerance:

ISO H8



End finish:

Plain ends with square cuts,free of burrs



Bore Roughness:

Ra0.30um max for honed tubes, Ra0.25um Max for Skived&roller burnished tubes


End finish:
Plain ends with square cuts,free of burrs



Usage:
Hydraulic cylinder, Pneumatic Cylinder



Product Feature:

1.High precision (can cut the costs of machining) .
2.Excellent surface finish
3.Good mechanical performance (Aneal ,Bright Anealing,QT heatment on steel tubes to reach customers' Mechanical requsts. )



1.+C /BK

No heat treatment after final cold drawing process.



2.+LC/BKW

After the final heat treatment there's a suitable drawing pass.



3.+SA/BKS

After the final cold drawing process there's a stress relief heat treatment in controlled atmosphere.



4.+A/GBK

After the cold drawing process the tubes are annealed in a controlled atmosphere.



5.+N/NBK

After the final cold drawing operation the tubes are normalized in a controlled atmosphere

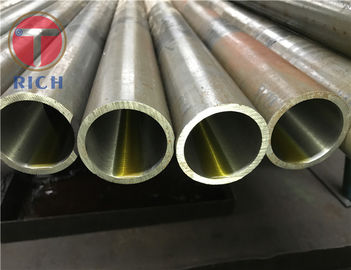

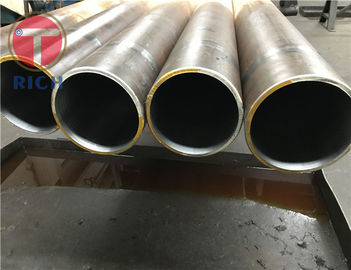

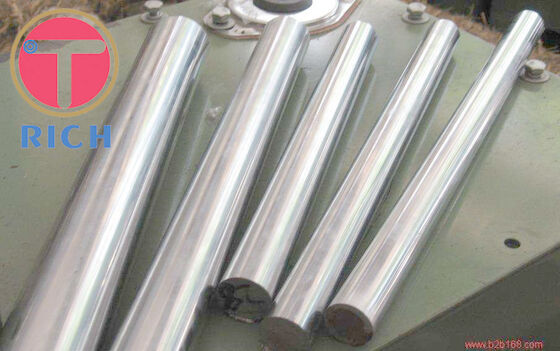

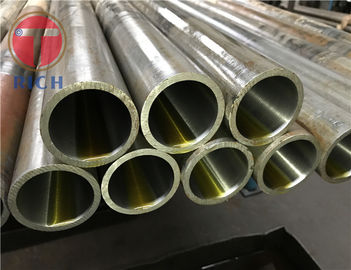

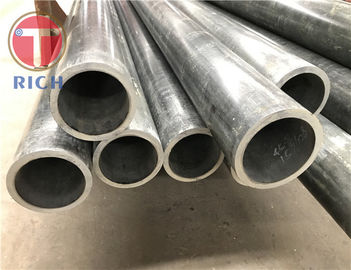

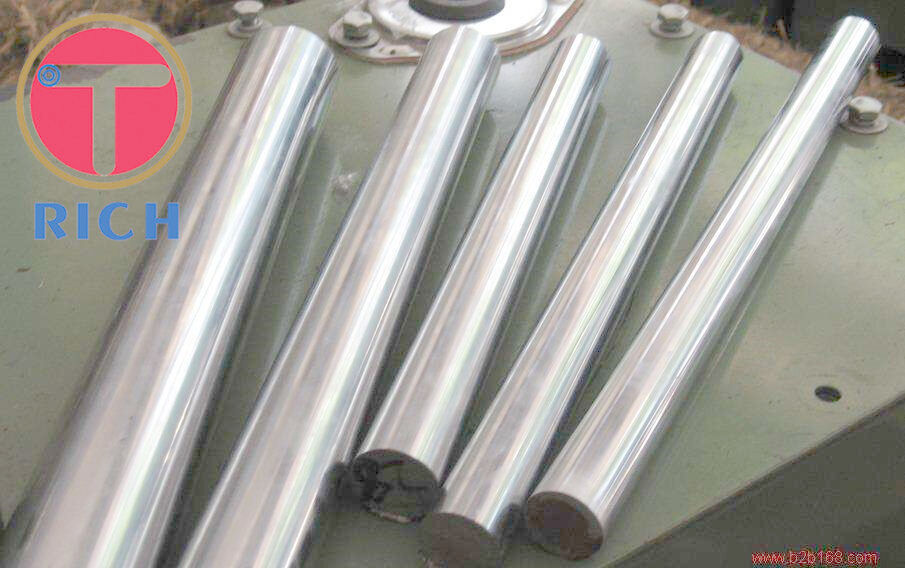

CK45 Shock Absorber ISO9001 BKS Honed Steel Tube Seamless 0CK45 Shock Absorber ISO9001 BKS Honed Steel Tube Seamless 1

Application:
CK45 Shock Absorber ISO9001 BKS Honed Steel Tube Seamless 2
Our Certifications:
CK45 Shock Absorber ISO9001 BKS Honed Steel Tube Seamless 3


FAQ:

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
