316 Stainless Steel Quilted Grinding Hydraulic Cylinder Pipe
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
|Minimum Order Quantity :||5 Tons||Price :||USD 650-750 Per Ton|
|Packaging Details :||Anti Rust Oil Protection, in seaworthy packing||Delivery Time :||4-6 Weeks|
|Payment Terms :||L/C, D/A, D/P, T/T, Western Union, MoneyGram||Supply Ability :||100Tons Per Month|
|Place of Origin:||Zhejiang||Brand Name:||TORICH|
|Certification:||ISO||Model Number:||ASTM A213-2001,|
|Grade Group:||10#-45#, 16Mn, Q195-Q345, ST35-ST52||Thickness:||1 - 35 Mm|
|Outer Diameter(Round):||6 - 350 Mm||Application:||Hydraulic Pipe|
|Technique:||Cold Drawn||Surface Treatment:||Oil, Black Phosphating, Galvanized|
honed hydraulic cylinder tube,
hydraulic cylinder pipe

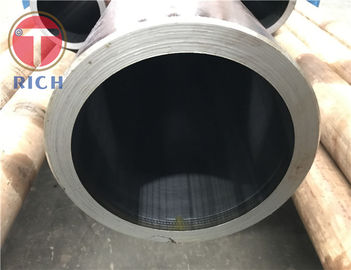

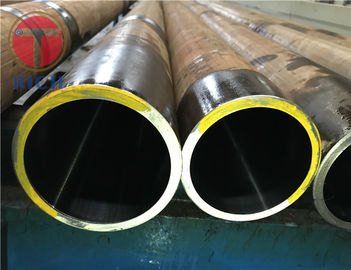

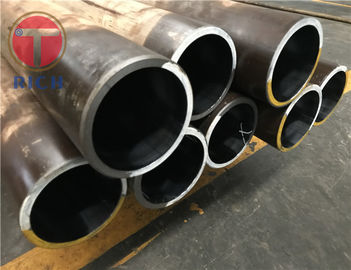

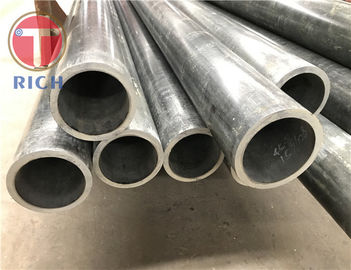

TORICH Diameter 46mm 38mm AISI 1020 1010 4130 34CrMo4 DIN St35.8 St52 Seamless Carbon Hydraulic Steel Pipe Cylinder Honed Tube
Cold drawn, hot rolled+deep hole bored
Carbon steel,alloy steel, stainless steel
DIN2391-2 ST52,EN10305-1 E355,C45E,25CrMo4,42CrMo4, CK45,E410, E470,ASTM A519 SAE1020,SAE1026,SAE1045,SAE1518,SAE1541, SAE4130,SAE4140,SAE4145,SAE4340,etc.
ID of 300mm max for cold drawing,
ID of 500mm for deep hole boring
Plain ends with square cuts,free of burrs
Ra0.30um max for honed tubes, Ra0.25um Max for Skived&roller burnished tubes
Plain ends with square cuts,free of burrs
Hydraulic cylinder, Pneumatic Cylinder
1.High precision (can cut the costs of machining) .
2.Excellent surface finish
3.Good mechanical performance (Aneal ,Bright Anealing,QT heatment on steel tubes to reach customers' Mechanical requsts. )
No heat treatment after final cold drawing process.
After the final heat treatment there's a suitable drawing pass.
After the final cold drawing process there's a stress relief heat treatment in controlled atmosphere.
After the cold drawing process the tubes are annealed in a controlled atmosphere.
After the final cold drawing operation the tubes are normalized in a controlled atmosphere.
Our group including the following members:
A. Torich Internationa Co.,Ltd, in charge of marketing and contracting for sales.
B. Ningbo Timely Import & Export Co.,Ltd, in charge of import and export issues of our group,
also in charge of sourcing and purchasing service for customers in export businesses.
C. Haiyan Sanxin Steel Tube Co.,Ltd, in charge of production and engineering, is the technical support and production base of our group.
1. Torich is the STEEL TUBE MAKER company in China,playing a significant role in domestic market as well as international market.
2. Our products have exported to over 56 countries worldwide, winning a great fame among our customers.
3. There was no quality claim in the past 3 years.
4. First production was started since 1997, our boss worked in steel tube industry for over 10 years before started the own factory, factory engineers with over 30 years manufacturing experience, knowing well about production and inspection technology.
5. We have been exporting steel tubes since 10 years ago, and know well about international standard for steel tubes DIN/EN,ASTM,SAE,BS,GOST,JIS etc,also with great experience of International trading practices.
6. Our team take Timely action within 24 hours after receiving customers' first requirement and enquiry.
7. 100% prompt delivery in the past 3 years.
8. 100% dimensional check and 100% visual inspection on tube surfaces.
9. 100% eddy current test and ultrasonic test for detecting longitudinal and transversal defects.
10.Convenient tranportation: production location is 30 mins high speed train from Shanghai, 2 hours drive from Shanghai
What is your Guarantee?
1.SO9001:2008 and TS16949 certification, SGS, BV, TUV or other third party inspection is available.
2.High quality with competitive price.
3.Advanced technology, experienced engineer, ISO quality system for quality assurance and traceability.
Do you have agent or distributor in our country?
1.We are recruiting area agent and distributor all over the world, welcome to send us your mail or call us for detail discussion.
How is your production capability?
1.2000 tons monthly production capacity, 5000 tons monthly trading capability
2.Prompt and Timely shipment
How to get the sample?
1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
What is your Payment Term?
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
Who are your customers?
1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc
How long will you react on our requirement?
1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!
Any more questions about your doubts, please feel free to send us your emails or call!
