St35 St52 1026 Pre Honed Seamless Precision Steel Tube DIN 2391

Basic Information
Place of Origin: China
Brand Name: Torich
Certification: ISO 9001
Model Number: EN 10305-1
Minimum Order Quantity: 5 tons
Price: 1500USD/ton
Packaging Details: In bundles
Delivery Time: 5-8 weeks
Payment Terms: L/C, T/T
Supply Ability: 5000tons per year
Detail Information
Standard: DIN Thickness: 0.1mm-60mm
Certification: ISO9001-2008 Technique: Cold Drawn
Surface Treatment: Null Grade: Q345
Alloy Or Not: Non-alloy Section Shape: Round
Secondary Or Not: Non-secondary Length: As Customer's Require
High Light:

Pre Honed Seamless Precision Steel Tube

,

1026 Seamless Precision Steel Tube

,

St35 Precision Steel Pipe


Product Description

St35 St52 1026 Pre-Honed Seamless Precision Steel Tube Din 2391



EN 10305-1 Precision steel tubes
EN 10305-1 Precision steel pipes
Hydraulic cylinder Precision steel tubes
Hydraulic cylinder Precision steel pipes
E235 E355 Precision steel tubes
E235 E355 Precision steel pipes
ID honed Precision steel tubes

ID honed Precision steel pipes



DIN 2391 Material Properties



DIN 2391 equivalent ASTM Standard  EN 10305-1, EN 10305-4, ASTM A519, NF 699, GOST 9567-75, NBR 8476, BS 6323 Part 4, NF A 49-330-85, BS 6323-4



DIN 2391 ST52 mechanical Properties





Mechanical properties at room temperature
Steel Grade Minimum values for the delivery condition
BKW BKS GBK (+N) NBK
ST35 480 6 420 10 420 315 14 340-470 235 25
ST45 580 5 520 8 520 375 12 440-570 235 21
ST52 640 4 580 7 580 420 10 490-630 355 22

ST52 Steel Tube properties

DIN 2391 ST52 Chemical Composition

Steel Grade and Chemical Compositions:

Steel Grade C Si Mn P S
max max   max max
ST35 0.17 0.35 ≥0.40 0.025 0.025
ST45 0.21 0.35 ≥0.40 0.025 0.025
ST52 0.22 0.35 ≥1.60 0.025 0.025

ST52 steel tube equivalent are EN10025-1994 1.0570 S355, DIN 2393 & 2394 1.0570 ST 52-3 and DIN 2391-2 1.0580 ST 52. ST52 steel tubes are high strength structural steel, low alloy.



DIN 2391 ST52 pipe properties is that of a Chemical Composition of P max 0.025, C ≤0.22, Mn ≤1.6, Si ≤0.55 and S max 0.025. DIN 2391 ST52 pipes have a Tensile Strength of 600 Mpa Min. The Yield Strength of DIN 2391 ST52 pipes is 520 Mpa Min. DIN 2391 ST52 pipes have an Elongation of 14% min.

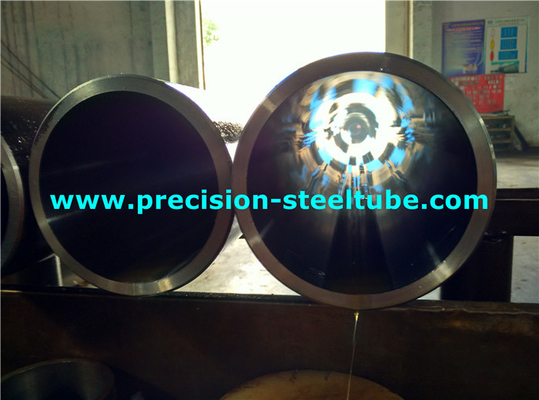

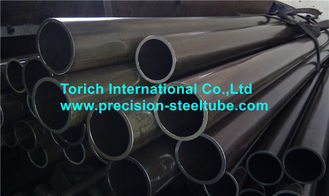

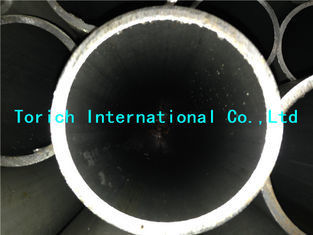

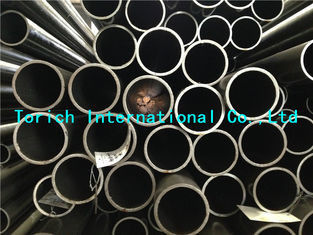

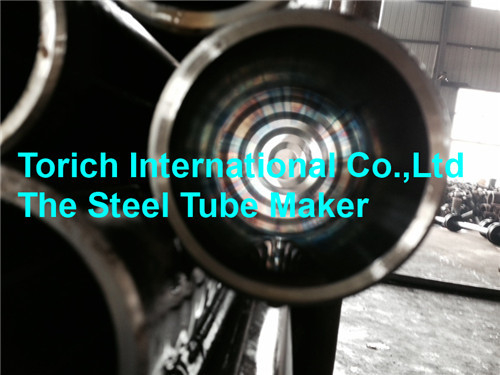

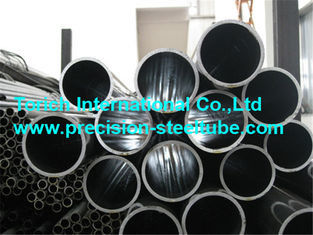

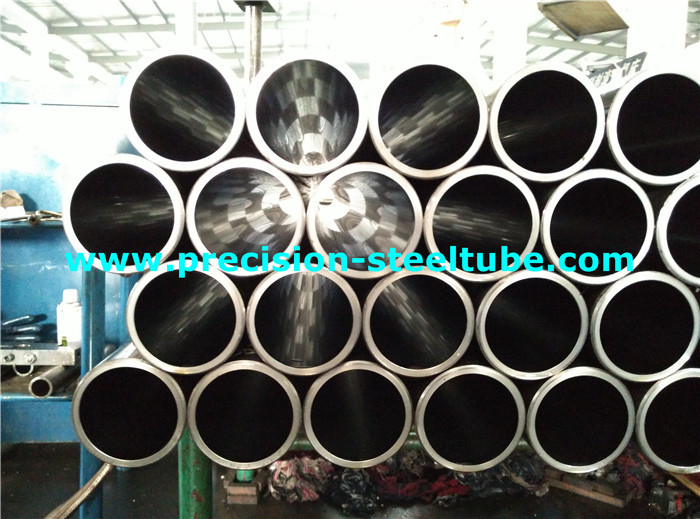

St35 St52 1026 Pre Honed Seamless Precision Steel Tube DIN 2391 0
