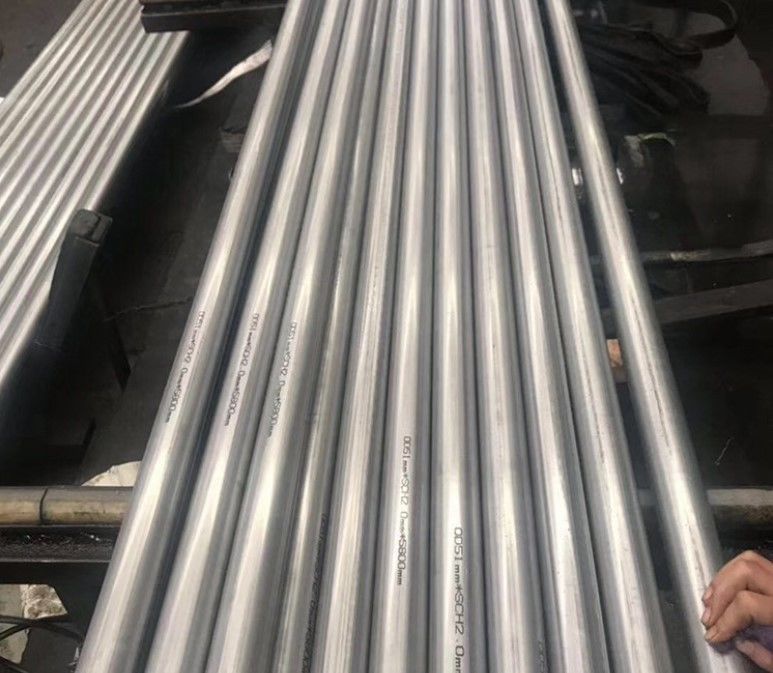

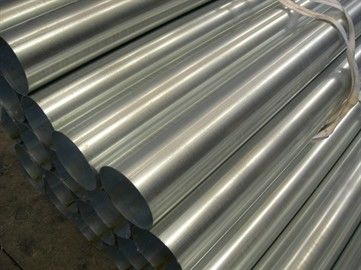

SA1C DX54D Aluminum Coated Automotive Steel Tubes JIS G3314
Product Details
JIS G3314 Automotive Steel Tubes
,DX54D Aluminum Coated Pipes
,SA1D Automotive Steel Tubes
JIS G3314 SA1C,SA1D,SAIE,DX53D DX54D Aluminum Coated Pipes
Outer diameter:12-127mm or according to customer's demand
Wall Thickness:1-2.3mm
Length:1-12m or according to customer's requirements
Material:SA1C,SA1D,SAIE,DX53D DX54D
Standard:JIS G3314
Surface Treatment: Aluminizing
Amount of aluminium coated:80g/m2,120g/m2
Product Specification
| size(mm) | size(mm) |
| 12×1.5 | 48x1.5 |
| 14×1.0 | 50.8*1.2 |
| 15×1.0 | 50.8x2.0 |
| 20.35x0.8 | 54x1.2 |
| 25.4×0.8 | 54x1.5 |
| 25.4×1.0 | 57x1.2 |
| 25.4x1.5 | 60.5x1.5 |
| 28.6×1.5 | 60x2.0 |
| 28.6×1.6 | 63.5x1.5 |
| 31.8×1.5 | 63.5x2.0 |
| 32×0.8 | 70x1.5 |
| 32×1.0 | 71x2.0 |
| 35×1.5 | 76.2x1.5 |
| 35×1.5 | 76x2.0 |
| 38.1×1.2 | 76x2.3 |
| 38.1×1.45 | 84x2.0 |
| 38.1×1.5 | 89x2.0 |
| 38.1×1.6 | 89x1.5 |
| 41.3×1.6 | 90x1.5 |
| 42×1.0 | 90x2.3 |
| 42×1.2 | 100x1.5 |
| 42×1.5 | 101.6x1.5 |
| 42×1.2 | 101.6x2.0 |
| 44.5×1.5 | 101.6x2.3 |
| 44.5×2.0 | 114x1.5 |
| 45x1.2 | 114.3x2.0 |
| 45×1.45 | 127x1.5 |
| 45×1.5 |
Quality Control
1.Choice of manufacturers
To select the most suitable manufacturer according to the requirements in the buyers' order.
2.Signing contract and placing orders
To sign contract with the manufacturer after confirming the price, to specify the details such as quantity, packing, quality, delivery time and so on .
3.Following up manufacturing :
To follow up every step of manufacturing process and ensure that the quantity, quality, packing and delivery time are in conformity with the requirements of the buyers order and relative international standards.
4.Quality inspection:
To fully inspect the goods after finishing manufacturing, issue survey report and present to the overseas buyer. We ensure that all the products conform to the requirements of the order and relative international standards.
Packing and shipment Loading
Supervision of loading in the port:
To follow up and supervise the goods loaded into containers before shipment, ensure again that the quality, quantity and packing meet the requirements of the order , ensure the goods without any damage during the process of container loading and guarantee the delivery time meets the requirements of the order.
-
