Large Diameter Thin Wall Steel Tubes Round For Heavy Truck Exhaust System
Basic Properties
Place of Origin:
Zhejiang,China
Brand Name:
TORICH
Certification:
ISO 9001 ISO 14001 TS16949
Model Number:
ASTM A513
Trading Properties
Minimum Order Quantity:
10 tons
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
50000 tons per year
Product Summary
Large Diameter and Thin Wall Steel Tubes for Heavy Truck Exhaust System from TORICH ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Size : O.D.:6-350mm W.T.:1-12.5mm L:max12000mm Grade: 1008,1010, 1020, 1026 Production: ERW + DOM Steel Grade and Chemical Compositions: ...
Product Details
Highlight:
low carbon steel pipe
,steel mechanical tubing
Product Name:
Large Diameter And Thin Wall Steel Tubes For Heavy Truck Exhaust System From TORICH
Keyword:
127*1.5 Welded Steel Tubes
Application:
For Mechinery,mechanical Engineer
Type:
ERW/HFW
Shape:
Round
Material:
1010,1020,1045,SPHC,SPCC,4130
Length:
Max12000mm
OD:
5-420mm
WT:
0.5-50mm
Brand:
TORICH
Product Description
Large Diameter and Thin Wall Steel Tubes for Heavy Truck Exhaust System from TORICH
ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing
Size : O.D.:6-350mm W.T.:1-12.5mm L:max12000mm
Grade: 1008,1010, 1020, 1026
Production: ERW + DOM
| Steel Grade and Chemical Compositions: | |||||||
| Steel Grade | C | Mn | P | S | Si | Cr | Mo |
| max | max | max | max | min | |||
| 1008 | 0.10 | 0.5 | 0.035 | 0.035 | |||
| 1010 | 0.08-0.13 | 0.30-0.60 | 0.035 | 0.035 | |||
| 1018 | 0.14-0.20 | 0.30-0.60 | 0.035 | 0.035 | |||
| 1020 | 0.17-0.23 | 0.30-0.60 | 0.035 | 0.035 | |||
| 1026 | 0.22-0.28 | 0.60-0.90 | 0.035 | 0.035 | |||
| 1035 | 0.31-0.38 | 0.60-0.90 | 0.035 | 0.035 | |||
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.035 | 0.035 | 0.15-0.35 | 0.80-1.10 | 0.08-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.00 | 0.035 | 0.035 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
Packing:

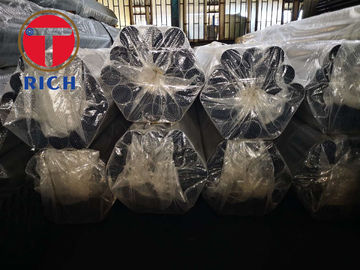

In Hexagonal Bundles, with anti corrosion oil protection, with seaworthy packing
Deliver condition:
1. A.W.H.R. "as welded" from hot-rolled steel
2. A.W.C.R. "as welded" from cold-rolled steel
3. S.D.C.R. "sink-drawn", cold-rolled steel
5. M.D. mandrel drawn
6. S.S.I.D. special smooth inside diameter
Please specify the delivery condition when sending the enquiry!
Thermal condition:
1. No final thermal treatment
2. Stress relieved
3. Annealed
4. Normalized
Applications: for Machinery, Mechanical Engineer, Automotive Parts,Agricultural.

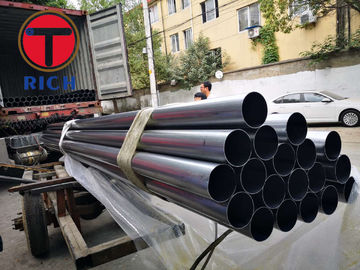

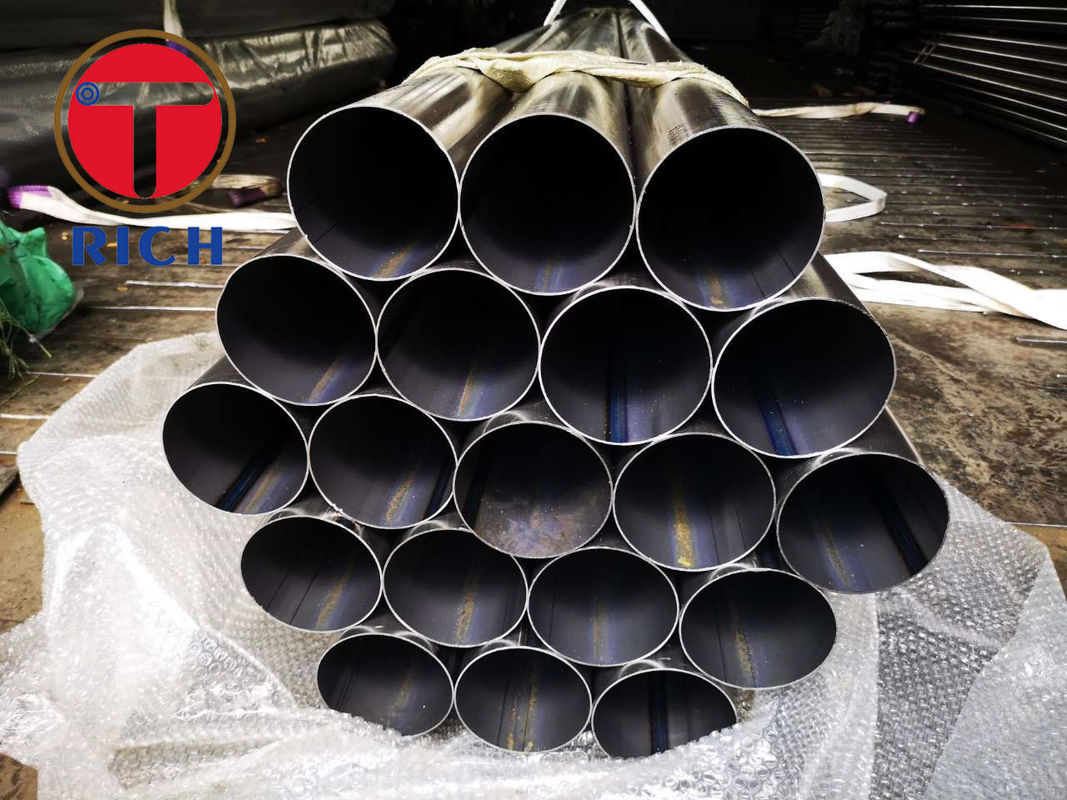

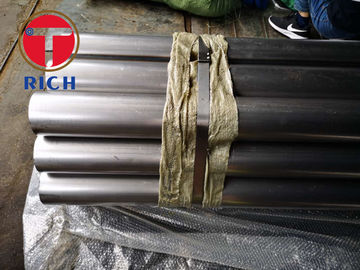

Product pictures
Large Diameter and Thin Wall Steel Tubes for Heavy Truck Exhaust System from TORICH
