JIS G3460 Alloy Steel Pipe for low temperature service

Name: JIS G3460 Alloy Steel Pipe for low temperature service
Brand: TORICH INTERNATIONAL LIMITED
SKU: JIS G3460
Price: 28,750.50 USD
Availability: InStock

Brand Name:	TORICH
Model Number:	JIS G3460
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

JIS G3460 Alloy Steel Pipe For Low Temperature Service.

Model No:

JIS G3460

Technique:

Cold Drawn

Surface Treatment:

Oiled

Type:

Seamless

Alloy Or Not:

Not Alloy

Section Shape:

Round

Application:

For Boilers,Superheaters,Steam Linepipes Of Boilers

Packaging Details:

In wooden boxes or hexagonal bundles in seaworthy packing

Highlight:

JIS G3460 Steel Pipe

JIS G3460 Alloy Steel Pipe

Product Description

JIS G3460 Alloy Steel Pipe for low temperature service

JIS G3460 STPL380, STPL450, STPL690 Chemical Composition:

Steel Grade	Chemical Composition %
Steel Grade	C	Si	Mn	P	S	Ni
STPL 380	0.25 max.	0.35 max.	1.35 max.	0.035 max.	0.035 max.
STPL 450	0.18 max.	0.10~0.35	0.30~0.60	0.030 max.	0.030 max.	3.20 ~ 3.80
STPL 690	0.13 max.	0.10~0.35	0.90 max.	0.030 max.	0.030 max.	8.50 ~ 9.50

-JIS G3460 STPL380, STPL450, STPL690 Mechanical Property:

Steel Grade	Tensile strength	Yield point or proof stress	Elongation %
	kgf/mm2 {N/mm2}	kgf/mm2 {N/mm2}	No. 11 or No. 12 test piece	No. 5 test piece	No. 4 test piece
	kgf/mm2 {N/mm2}	kgf/mm2 {N/mm2}	Longitudinal	Transverse	Longitudinal	Transverse
STPL 380	39 {382}min.	21{206} min.	35 min.	25 min.	30 min.	22 min.
STPL 450	46{451}	25{245} min.	30 min.	20 min.	24 min.	16 min.
STPL 690	70{686}	53{520} min.	21 min.	15 min.	16 min.	10 min.

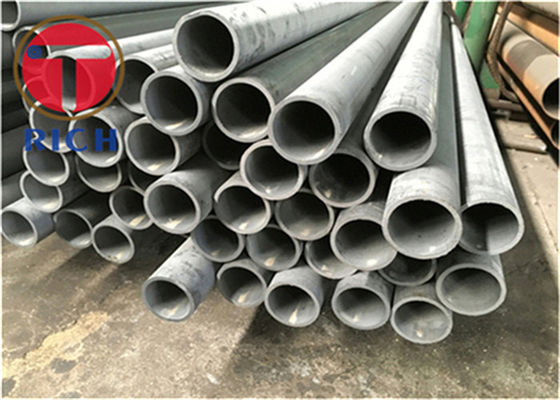

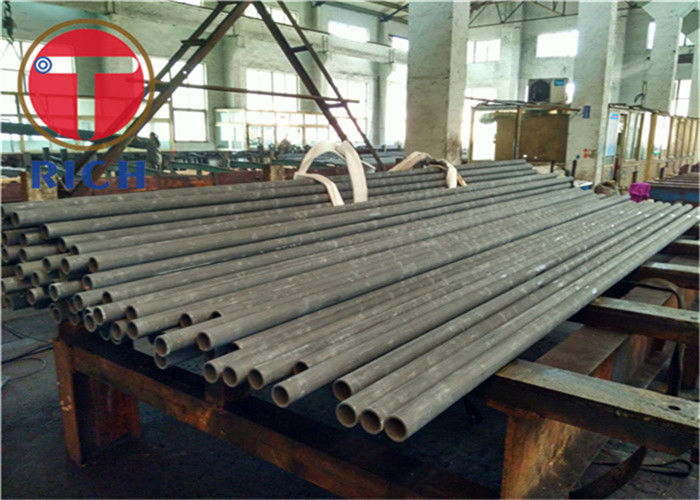

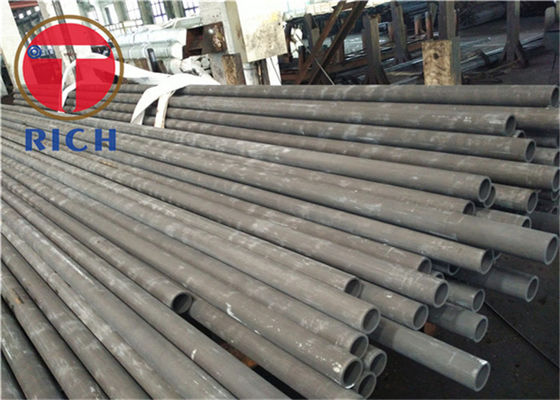

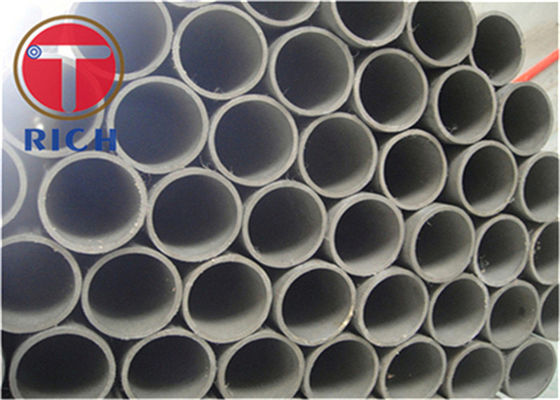

Product Pictures:

JIS G3460 Alloy Steel Pipe for low temperature service 0

Company Introduction:

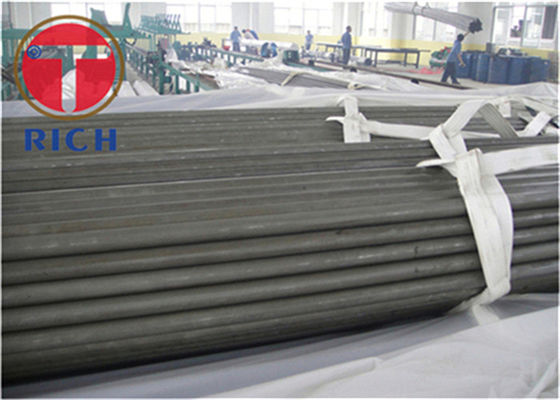

Packaging and Delivery:

JIS G3460 Alloy Steel Pipe for low temperature service 3

FAQ:

Q: Are you trading company or manufacturer?

A: We are a professional steel pipes materials manufacturer.

Q: How long is your delivery time?

A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.

Q: Do you provide free sampleas?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
