JIS G3472 Electric Resistance Welded Carbon Steel Tubes For Automobile
Basic Properties
Place of Origin:
CHINA
Brand Name:
TORICH
Model Number:
JIS G3472
Trading Properties
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Summary
JIS G3472 Electric resistance welded carbon steel tubes for automobile Grade: STAM290GA STAM290GB STAM340G STAM40G STAM470G STAM500G STAM440H STAM470H STAM500H STAM540H Thickness: 2.0-25.0mm Out Diameter: 10.2-660 mm Length:5.8M/12M.max Application: Boiler, electricity, mechanical, structural,gas ...
Product Details
Highlight:
Electric Resistance Carbon Steel Tubes
,JIS G3472 Welded Carbon Steel Tubes
,Carbon Steel Tubes For Automobile
Product Name:
JIS G3472 Electric Resistance Welded Carbon Steel Tubes For Automobile
Model No:
JIS G3472
Technique:
Cold Drawn
Surface Treatment:
Oiled
Type:
Seamless
Alloy Or Not:
Not Alloy
Section Shape:
Round
Application:
For Boilers,Superheaters,Steam Linepipes Of Boilers
Product Description
JIS G3472 Electric resistance welded carbon steel tubes for automobile
Grade: STAM290GA STAM290GB STAM340G STAM40G STAM470G STAM500G STAM440H STAM470H STAM500H STAM540H
Thickness: 2.0-25.0mm Out Diameter: 10.2-660 mm
Length:5.8M/12M.max
Application: Boiler, electricity, mechanical, structural,gas cylinder, chemical, offshore and oil service.
Surface Finishing:Anti-corrosion and high-temperature resistant with black painting.
Packing: Bundles, seaworthy wooden cases.With or without end caps, varnish or as per clients requirements.
Surface Treatment:
Surface Corrosion proofing water based paint
| Designation | Chemical Composition % | ||||
| C | Si | Mn | P | S | |
| STAM 290GA | 0.12 max. | 0.35max. | 0.60 max. | 0.035 max. | 0.035 max. |
| STAM 290GB | |||||
| STAM 340G | 0.20 max. | 0.35 max. | 0.60 max. | 0.035 max. | 0.035 max. |
| STAM 390G | 0.25 max. | 0.35 max. | 0.30-0.90 | 0.035 max. | 0.035 max. |
| STAM 440G | 0.25 max. | 0.35 max. | 0.30-0.90 | 0.035 max. | 0.035 max. |
| STAM 440H | |||||
| STAM 470G | 0.25 max. | 0.35 max. | 0.30-0.90 | 0.035 max. | 0.035 max. |
| STAM 470H | |||||
| STAM 500G | 0.30 max. | 0.35 max. | 0.30-1.00 | 0.035 max. | 0.035 max. |
| STAM 500H | |||||
| STAM 540H | 0.30 max. | 0.35 max. | 0.30-1.00 | 0.035 max. | 0.035 max. |

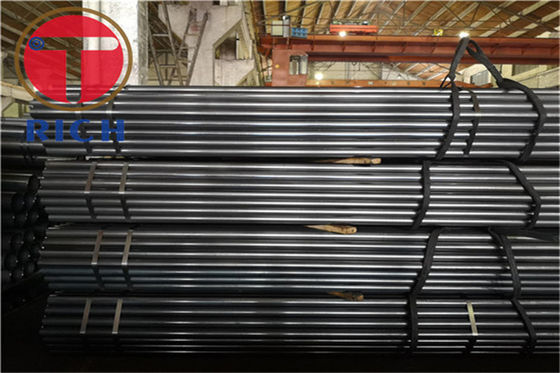

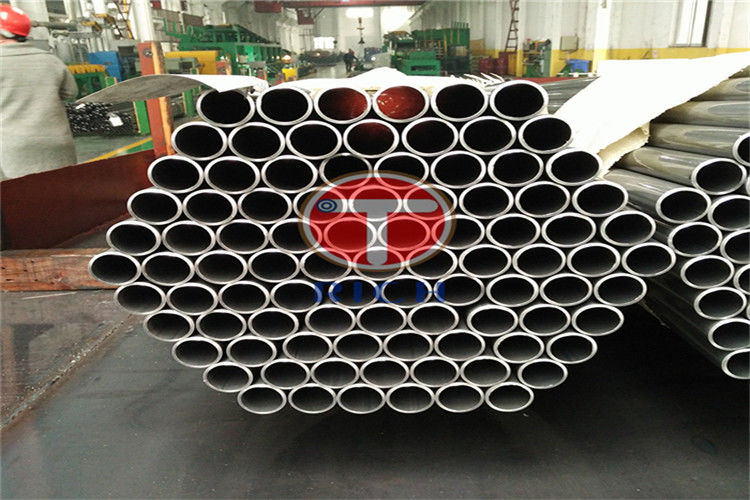

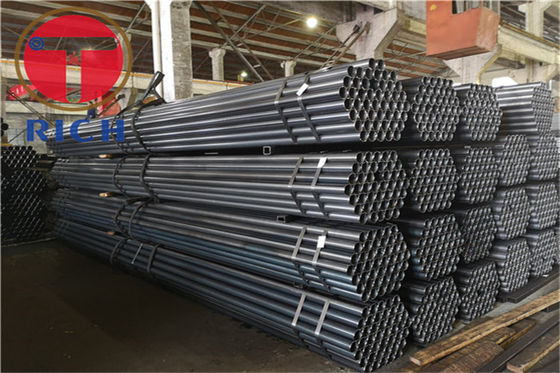

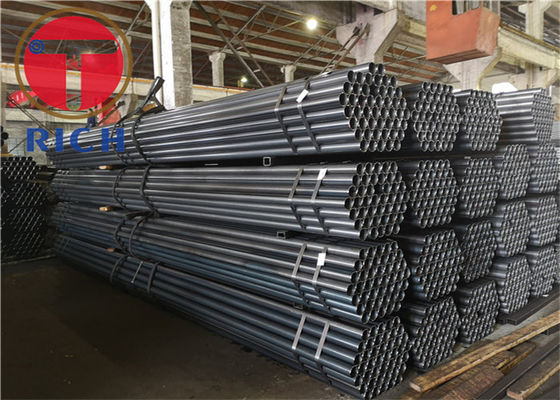

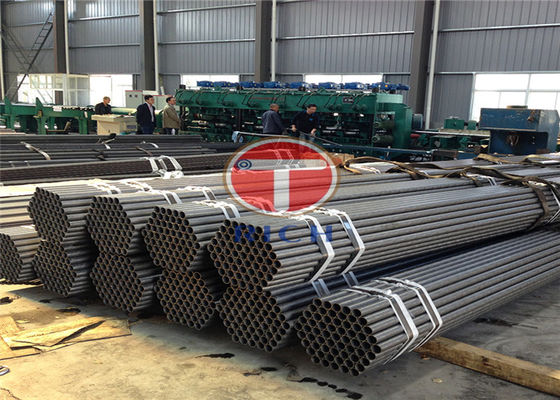

Product Pictures:
Company Introduction:
Packaging and Delivery:
FAQ:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free sampleas?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
