TORICH JIS G3429 STH12 STH21 Automotive Precision Carbon Steel Tube
Product Details
STH21 Precision Steel Tube
,STH12 Precision Steel Tube
,JISG3429 Precision Steel Tube
Torich JIS G3429 STH12 STH21 Automotive Precision Steel Tube
Introduction:
Standard: JISG3429
Type:Carbon
Diameter: Od: 5-420mm, Wall thickness: 0.5-50mm length:12mmax
Grade: STH 21, STH11,STH12,STH22,STH31
Produce method:Seamless
Usage: Pipes are used in oil, air, etc.
Feature: High pressure
Chemical components:
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| STH11 | ≤0.5 | 0.1-0.35 | ≤1.8 | ≤0.035 | ≤0.035 | - | - | - |
| STH12 | 0.3-0.41 | 0.1-0.35 | 1.35-1.7 | ≤0.03 | ≤0.03 | - | - | - |
| STH21 | 0.25-0.35 | 0.1-0.35 | 0.4-0.9 | ≤0.03 | ≤0.03 | ≤0.25 | 0.8-1.2 | 0.15-0.3 |
| STH22 | 0.33-0.38 | 0.1-0.35 | 0.4-0.9 | ≤0.03 | ≤0.03 | ≤0.25 | 0.8-1.2 | 0.15-0.3 |
| STH31 | 0.35-0.4 | 0.1-0.5 | 1.2-1.5 | ≤0.03 | ≤0.03 | 0.5-1.0 | 0.3-0.6 | 0.15-0.25 |
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking

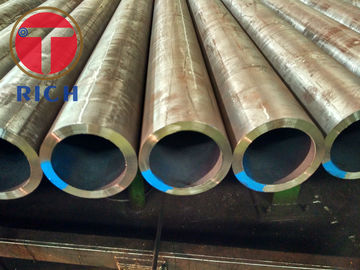

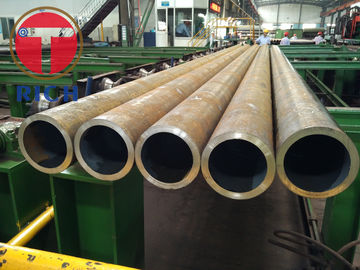

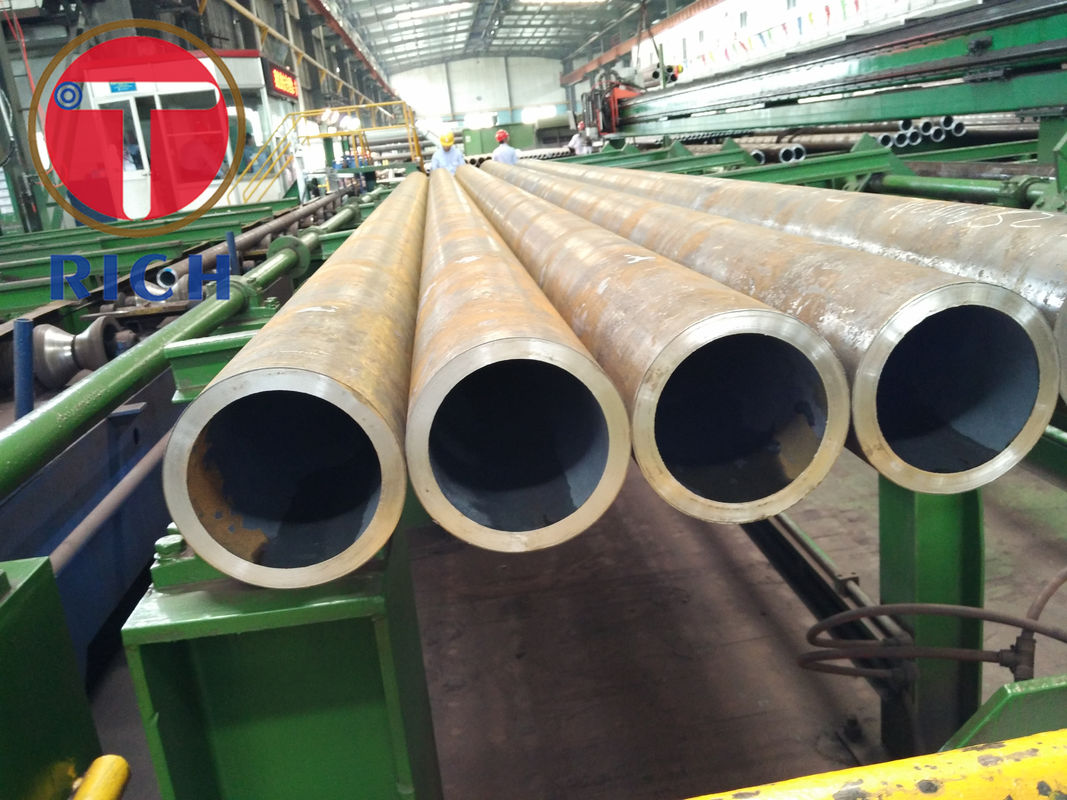

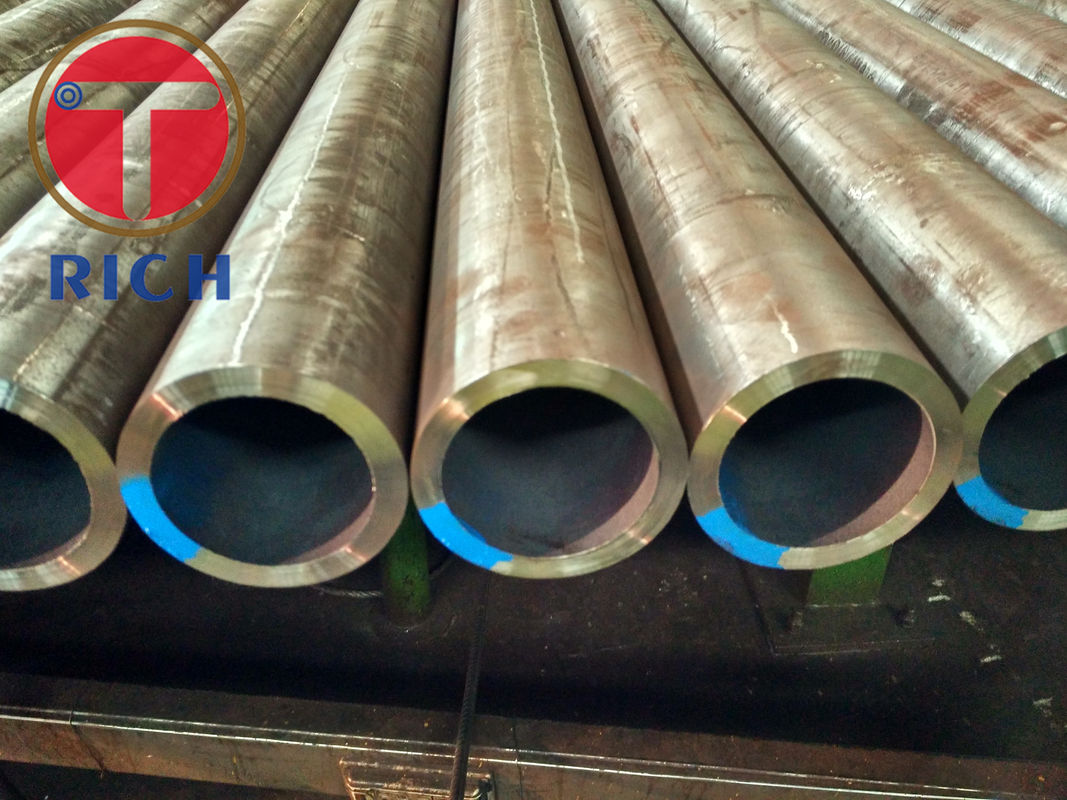

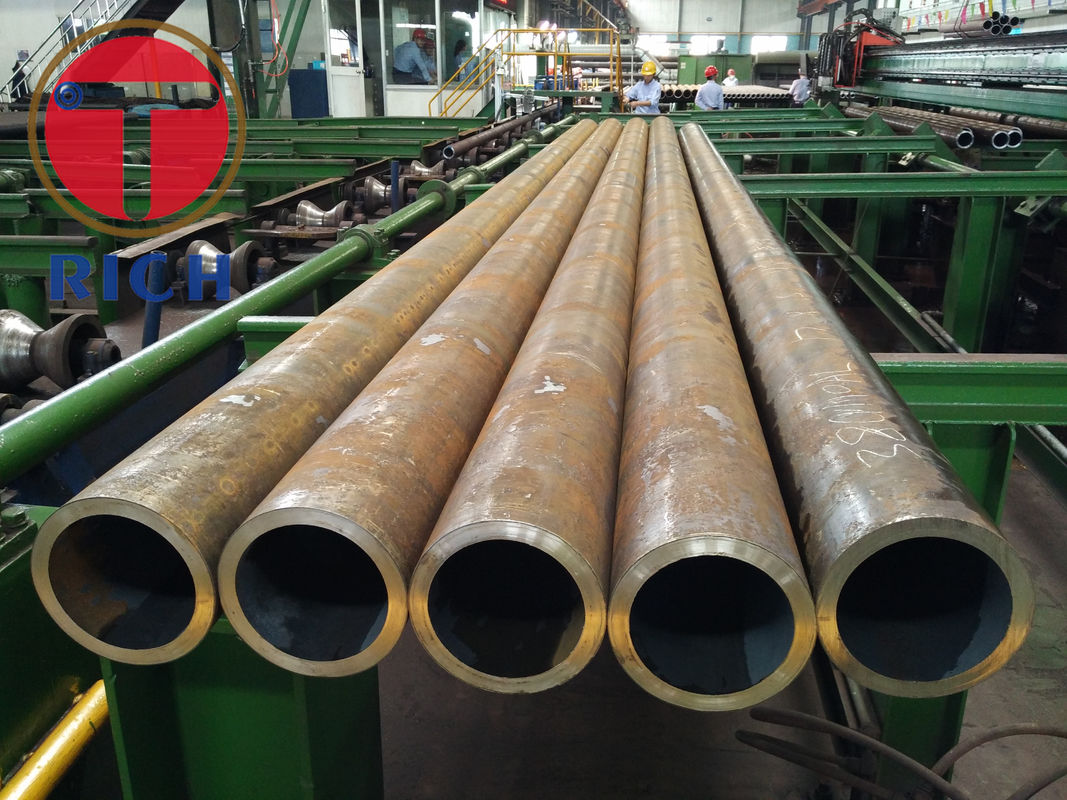

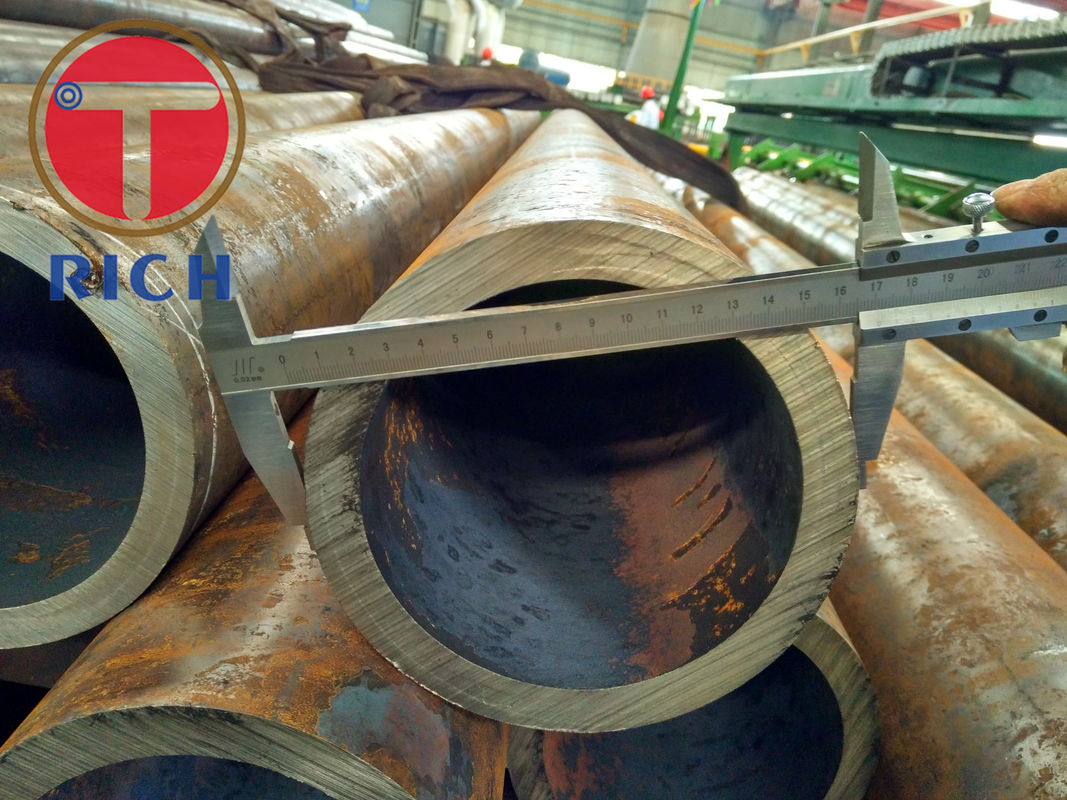

Product show:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:Do you have agent or distributor in our country?
A:We are recruiting area agent and distributor all over the world, welcome to send us your mail or call us for detail discussion.
Q:How is your production capability?
A:1.2000 tons monthly production capacity, 5000 tons monthly trading capability
2.Prompt and Timely shipment
Q:How to get the sample?
A:1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
-
