Name: JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping
Brand: TORICH INTERNATIONAL LIMITED
SKU: JIS G3452
Price: 3,501.00 USD
Availability: InStock

Home > products > Welded Steel Tube >

JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping

SGP Welded Carbon Steel Pipes

JIS G3452 Welded Carbon Steel Pipes

Place of Origin:

China

Brand Name:

TORICH

Certification:

ISO 9001 ISO14001 TS 16949 KR LR NK

Model Number:

JIS G3452

Request A Quote

Product Details

Product Name:

Carbon Steel Pipes For Ordinary Piping

Material:

Carbon Steel

Grade:

SGP

Standard:

JIS G3452

Size Range:

OD 5-420mm*WT 0.5-50mm*12000mm Below

Application:

For Ordinary Piping

Surface:

Black Or Zinc Coating

Relevant Standard:

KS D 3507 ASTM A 53 API 5L DIN 2440 DIN2441 BS 1387 BS 3601

Highlight:

SGP Welded Carbon Steel Pipes

JIS G3452 Welded Carbon Steel Pipes

Payment & Shipping Terms

Minimum Order Quantity

5TONS

Price

negotiation

Packaging Details

Packed in bundles or wooden box or upon requests

Delivery Time

30-60days after received your payment

Supply Ability

5,000tons per year

ASTM A252 Gr 2 Welded Steel Tube Large Diameter Straight Seam Welded Steel Pipe For Structure

Get Best Price

video

Od813mm X Wt6mm Large Diameter Welded Steel Pipe

Get Best Price

video

Cold Rolling ASTM A513 Welded Steel Tubes with DOM production

Get Best Price

video

Electric Resistance Welded Steel Tube Cold Rolling For Automotive Shock Absorber

Get Best Price

86-574-88086983

Contact Now

Product Description

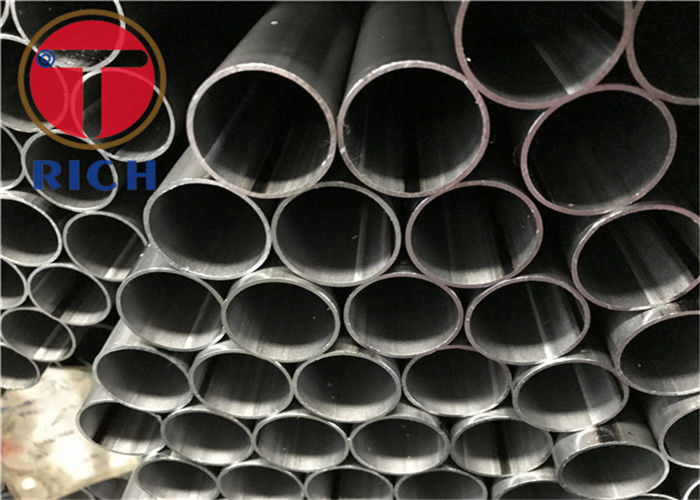

 JIS G3452 SGP Welded Carbon Steel Pipes for Ordinary Piping

Application for ordinary piping
Diameter: 5-420mm, Wall thickness: 0.5-50mm
Length: 12mmax
Grade: SGP
Standard: JISG3452

Black pipe: without zinc coating
Galvanized pipe: with zinc coating
Produce method:ERW
Steel Grade:SGP
Relevant standard: KSD3507, ASTMA53, API5L, DIN2440, DIN2441, BS1387, BS3601, JISB0203, JISB0253, JISB2301

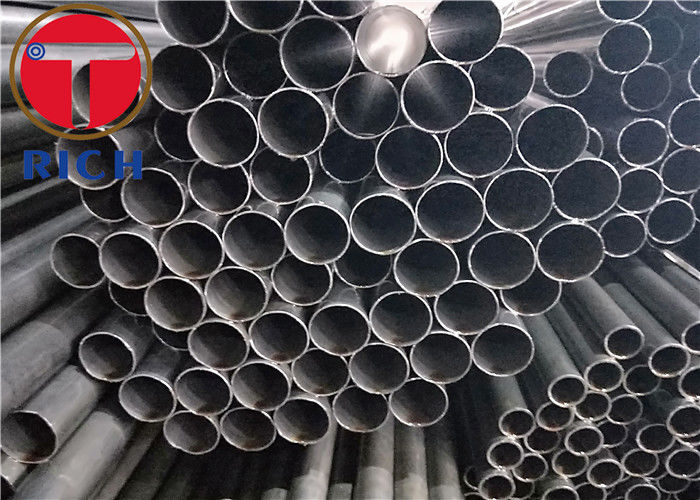

Black pipe without zinc coating

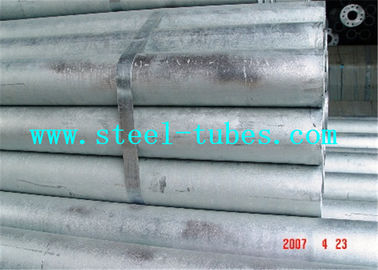

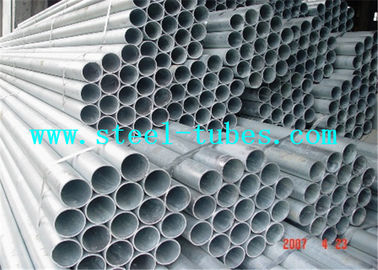

Galvanized pipe with zinc coating

CHEMICAL COMPOSITION unit (%)
Steel grade	P	S
SGP	0.040max	0.040max

Note: Special steel grade is also available, according to customer request.

MECHANICAL PROPERTIES
Steel grade	Tensile strength Mpa	Elongation%
SGP	290 min	30min

Dimensions weights and Demensional Tolerances
Nominal Diameter		OD(mm)	OD Tolerances		WT mm	WT Tolerances	Unit mass excluding socket kg/m
A	B	OD(mm)	Pipes to be cut in taper thread	Other pipes	WT mm	WT Tolerances	Unit mass excluding socket kg/m
6	1/8	10.5	±0.5mm	±0.5mm	2.0	+Not specified -12.5%	0.419
8	1/4	13.8	±0.5mm	±0.5mm	2.3		0.652
10	3/8	17.3	±0.5mm	±0.5mm	2.3		0.851
15	1/2	21.7	±0.5mm	±0.5mm	2.8		1.31
20	3/4	27.2	±0.5mm	±0.5mm	2.8		1.68
25	1	34.0	±0.5mm	±0.5mm	3.2		2.43
32	1 1/4	42.7	±0.5mm	±0.5mm	3.5		3.38
40	1 1/2	48.6	±0.5mm	±0.5mm	3.5		3.89
50	2	60.5	±0.5mm	±1%	3.8		5.31
65	2 1/2	76.3	±0.7mm	±1%	4.2		7.47
80	3	89.1	±0.8mm	±1%	4.2		8.79
90	3 1/2	101.6	±0.8mm	±1%	4.2		10.1
100	4	114.3	±0.8mm	±1%	4.5		12.2
125	5	139.8	±0.8mm	±1%	4.5		15.0
150	6	165.2	±0.8mm	±1.6mm	5.0		19.8
175	7	190.7	±0.9mm	±1.6mm	5.3		24.2
200	8	216.3	±1.0mm	±0.8%	5.8		30.1
225	9	241.8	±1.2mm	±0.8%	6.2		36.0
250	10	267.4	±1.3mm	±0.8%	6.6		42.4
300	12	318.5	±1.5mm	±0.8%	6.9		53.0
350	14	355.6	-	±0.8%	7.9		67.7
400	16	406.4	-	±0.8%	7.9		77.6
450	18	457.2	-	±0.8%	7.9		87.5
500	20	508.0	-	±0.8%	7.9		97.4

JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping 0

JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping 2
