electric resistance welded steel tube
"
Electric Resistance Welded Steel Tube SA178 Grade A Carbon For Boiler
Electric Resistance Welded SA178 Grade A Carbon Boiler Steel Tube 1. Details: Standard SA178 OD 12.7-127mm WT 0.9-9mm Length 4-12m Material Grade A, Grade C, Grade D Production method ERW (Electric Resistance Welded) Heat treatment Yes Key words boiler tube, resistance welded steel tube, steel tube carbon, welded steel tube Surface Quality:The internal and external surfaces of the steel tube are not allowed to have cracks, scabs, folds, delaminations, laps, and burns. Allows
ASTM A984 Gr.35 Black Electric-Resistance-Welded Steel Tube For Building
ASTM A984 Gr.35 Gr.50 Gr.60 Gr.70 Gr.80 Welded Steel Tube Introduction ASTM A984 is a specification that covers electric-resistance-welded (ERW) steel tubes used in various applications, particularly in construction and building materials. This specification includes several grades, each with distinct mechanical properties and chemical compositions. This article provides an overview of the specifications, chemical compositions, mechanical properties, and applications of ASTM
Electric Resistance Welded Steel Tube , ERW / DOM 50mm Steel Tubing
ASTM A513 Electric resistance welded carbon and alloy steel mechanical tubing Applications: for Machinery, Mechanical Engineer, Automotive Parts, Automotive Industry Size range: O.D.:6-350mm W.T.:1-12.5mm L:max12000mm Production: ERW + DOM Steel Grade and Chemical Compositions: Steel Grade C Mn P S Si Cr Mo max max max max min 1008 0.10 0.5 0.035 0.035 1010 0.08-0.13 0.30-0.60 0.035 0.035 1018 0.14-0.20 0.30-0.60 0.035 0.035 1020 0.17-0.23 0.30-0.60 0.035 0.035 1026 0.22-0.28
Electric Resistant Welded Steel Tube Astm A214 Carbon Steel For Boilers
product name: ASTM A214 Carbon Steel For Boilers,Superheaters,Heat-Exchangers, Condensers Electric Applications: for Boilers,Superheaters,Heat-Exchangers, Condensers Size range: O.D.:6-76mm W.T.:0.9-19.0mm L: according to customer requirement Manufacture: Tubes are made by electric-resistance welding. Surface Condition: The finished tubes are free of scale., slight amount of oxidation is not considered as scale Heat treatment: After welding, all tubes are heat treated at a
Electric Resistance Welded Steel Tube ERW Steel Tubes For Heavy Truck Exhaust System
OD127mm*WT1.5mm ERW Steel Tubes with Erased Seam for Heavy Truck Exhaust System ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Size : O.D.:6-350mm W.T.:1-12.5mm L:max12000mm Grade: 1008,1010, 1020, 1026 Production: ERW + DOM Steel Grade and Chemical Compositions: Steel Grade C Mn P S Si Cr Mo max max max max min 1008 0.10 0.5 0.035 0.035 1010 0.08-0.13 0.30-0.60 0.035 0.035 1018 0.14-0.20 0.30-0.60 0.035 0.035 1020 0.17-0.23 0.30-0.60 0.035 0

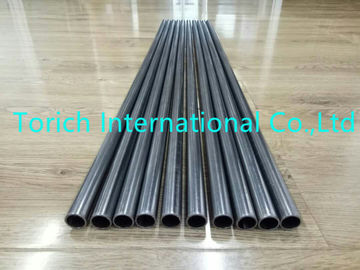

Electric Resistance Welded Steel Tube Cold Rolling For Automotive Shock Absorber
Best selling 2 Inch ASTM A513 Mechanical Tubing 1010/1020/4130 Tube,free sampleBest selling 2 Inch ASTM A513 Mechanical Tubing 1010/1020/4130 Tube,free sample Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size
Oil Seamless Carbon Steel Tube , Electric Resistance Welded Steel Pipe
TORICH GB/T9711-2011 Electric Resistance Welded Steel Oil Pipe TORICH GB/T9711-2011 Electric Resistance Welded Steel Oil Pipe Standard: GB/T9711-2011 PSL1,GB/T9711-2011 PSL2 GB/T3091-2008,API SPEC.5L PSL1,API SPEC.5L PSL2, API SPEC.5CT Size range: OD: 88.9-660.4mm WT: 2.11-24.61mm Length: 5.8-22m Material: Q235-Q345,L245-L415,X42-X70,J55 Usage: Oil, Gas, Chemical Pipe Characteristic: Good concentricity High Precision Good surface quality Stable quality Good OD and ID
ASTM A135 Grade A Welded Steel Tube Electric Resistance Welded Steel Pipe For Gas Delivery
ASTM A135 Grade A Welded Steel Tube Electric-Resistance-Welded Steel Pipe For Gas Delivery In the realm of steel tubing and pipes, ASTM A135 Grade A stands out as a reliable choice for applications requiring electric-resistance-welded steel pipes tailored for gas delivery. This article delves into the material, specifications, key features, chemical composition, mechanical properties, steel grade, applications, and possible alternative grades associated with ASTM A135 Grade A
Electric-Resistance-Welded Low Carbon tube ERW steel pipe for Bending and Flaring
Electric-Resistance-Welded Low Carbon tube ERW steel pipe for Bending and Flaring SpecificationsStandard:Electric-Resistance-Welded Low Carbon tube ERW steel pipeMaterial:SAE1010, SAE1020, SAE1026 etc.Application: 1. Bending Tube2. Flaring Tube3. Boiler Pipe4. Automotive Industry5. Chemistry industry6. Electric industrySurface Treatment:1.Bared2.Black Painted (varnish coating)3.Galvanized4.Oiled5.PE,3PE, FBE, corrosion resistant coating, Anti corrosion coating.Sizes: OD:5-500
