Electric Resistance Welded Steel Tube Cold Rolling For Automotive Shock Absorber

Electric Resistance Welded Steel Tube Cold Rolling For Automotive Shock Absorber

Brand Name: TORICH
Model Number: ASTM A513/SAE J525/EN10305/DIN2393
MOQ: 5 tons
Price: USD 500-1200 per ton
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50000 tons per year
Detail Information
Place of Origin:
Zhejiang,China
Certification:
ISO9001,ISO14001,TS16949
Product Name:
Welded Steel Tubes For Automotive Shock Absorber,engine Application
Keyword:
Welded Steel Tubes
Usage:
For Automotive Shock Absorber,engine Application
Shape:
Round
Technique:
ERW(electric Resistance Welded)
Material:
1010,1020,1045,4130,4140
OD:
5-420mm
WT:
0.5-50mm
Length:
Max12000mm
Package:
Standard Marine Package
Packaging Details:
Welded steel tubes for automotive shock absorber,engine application,packing in standard marine package
Supply Ability:
50000 tons per year
Highlight:

welded steel pipe

,

electric resistance welded steel tube

Product Description

Best selling 2 Inch ASTM A513 Mechanical Tubing 1010/1020/4130 Tube,free sampleElectric Resistance Welded Steel Tube Cold Rolling For Automotive Shock Absorber 0Best selling 2 Inch ASTM A513 Mechanical Tubing 1010/1020/4130 Tube,free sample

Applications: for Machinery, Mechanical Engineering


1. Standard:
ASTM A513 cold rolling welded precision steel tubes

2. Steel Grade:
SAE1010, SAE1020
, other materials upon agreement with customers.


3. Production method:
Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance


4. Size range:
O.D.:6-350mm     W.T.:1-15mm      L:max12000mm


5. Packing:
In Hexagonal Bundles, with anti corrosion oil protection, with seaworthy packing


Deliver condition:

1. A.W.H.R.    "as welded" from hot-rolled steel
2. A.W.C.R.      "as welded" from cold-rolled steel
3. S.D.C.R.       "sink-drawn", cold-rolled steel
5. M.D.              mandrel drawn
6. S.S.I.D.          special smooth inside diameter

Please specify the delivery condition when sending the enquiry!


Thermal condition:
1. No final thermal treatment
2. Stress relieved
3. Annealed
4. Normalized


                                       Steel Grade and Chemical Compositions:
Steel  Grade C Mn P S Si Cr Mo
max   max max max min
1008 0.10  0.5 0.035  0.035
1010 0.08-0.13 0.30-0.60 0.035  0.035
1018 0.14-0.20 0.30-0.60 0.035  0.035
1020 0.17-0.23 0.30-0.60 0.035  0.035
1026 0.22-0.28 0.60-0.90 0.035  0.035
1035 0.31-0.38 0.60-0.90 0.035  0.035
4130 0.28-0.33 0.40-0.60 0.035  0.035  0.15-0.35 0.80-1.10 0.08-0.25
4140 0.38-0.43 0.75-1.00 0.035  0.035  0.15-0.35 0.80-1.10 0.15-0.25

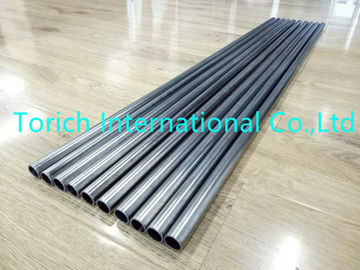

Electric Resistance Welded Steel Tube Cold Rolling For Automotive Shock Absorber 1

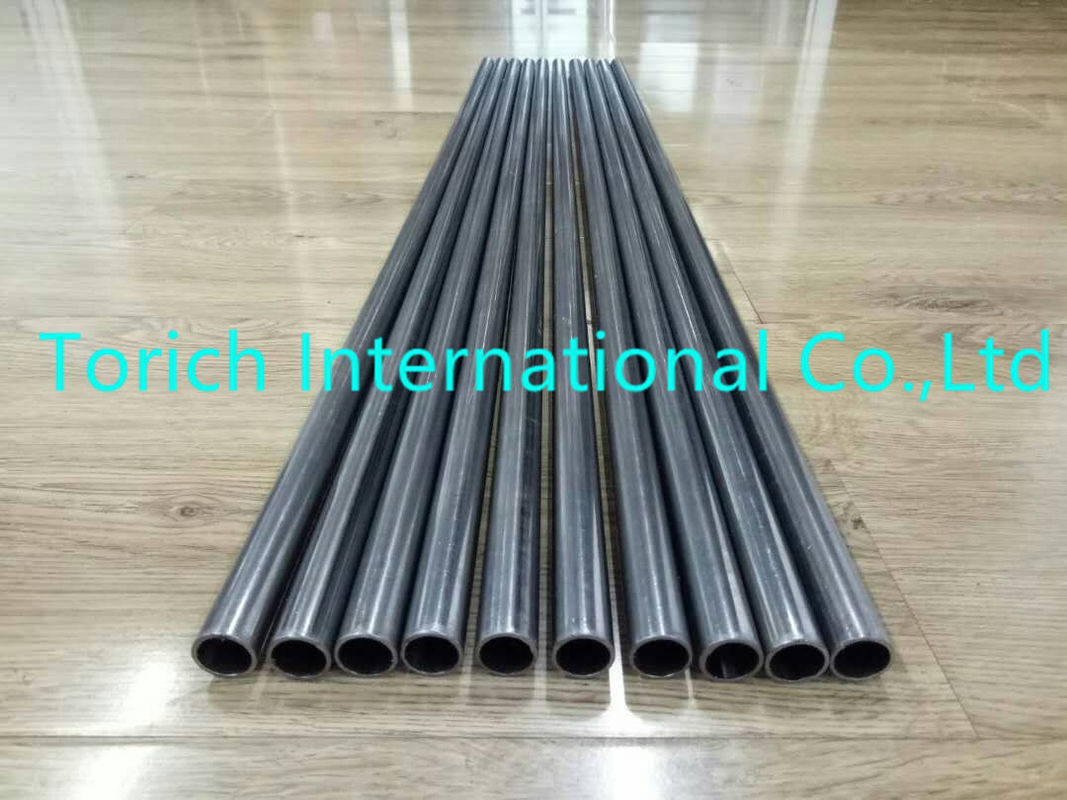

Electric Resistance Welded Steel Tube Cold Rolling For Automotive Shock Absorber 2Electric Resistance Welded Steel Tube Cold Rolling For Automotive Shock Absorber 3Electric Resistance Welded Steel Tube Cold Rolling For Automotive Shock Absorber 4
