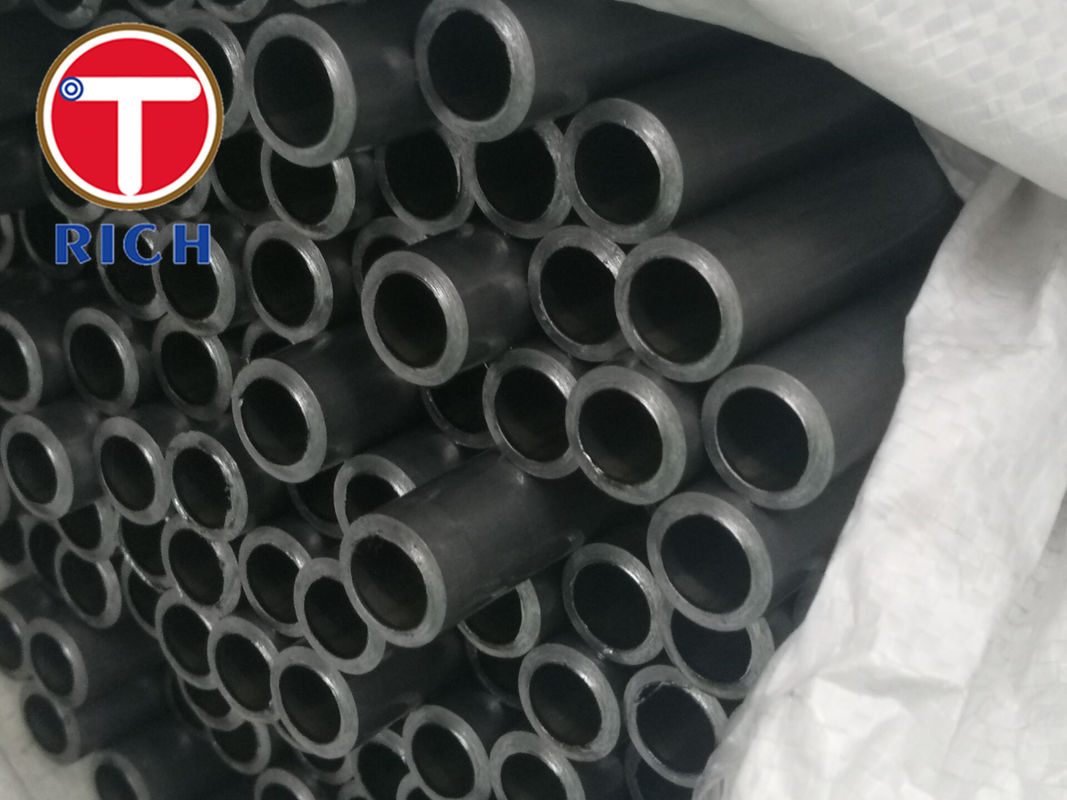

Smooth Surface Automotive Steel Tubes Gas Spring Tube DIN2393 EN10305-2

Minimum Order Quantity : 5Tons Packaging Details : Tubes are packed in wooden boxes or hexagonal bundles.
Delivery Time : 30-45 work days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 2000Tons per Year
Place of Origin: ZHEJIANG, CHINA Brand Name: TORICH
Certification: ISO9001, ISO14001, TS16949 Model Number: DIN2393 EN10305-2

Detail Information

Keyword: Gas Spring Tube Grade: E195, E235, E355, St37, St52, St35.4
OD: 15 - 200 Mm WT: 0.8 - 16 Mm
Length: Max 12000mm Technique: Cold Drawn Welded
Application: Shock Absorber Gas Cylinder Delivery Condition: +C, +LC, +SC, +A, +N
High Light:

low carbon steel pipe

,

steel mechanical tubing

Product Description

TORICH DIN2393 EN10305-2 Cold Drawn Welded Precision Gas Spring Tube for Wall Bed​





Quick Detail:

Product name DIN2393 EN10305-2 Cold Drawn Welded Precision Gas Spring Tube for Wall Bed
Steel Grade E155, E195, E235, E275, E355, 10#, 20#, 45#, St37, St52, St35.4, St52.4, ST35, ST37.4
Size Range OD range:15-200mm WT range: 0.8-16mm
Tolerance OD: (+/-0.06mm) WT: (+/-0.03mm)
ID surface 0.4μm
Straightness ≤0.5mm/1m
Roundness ≤0.5mm
Regular specifications 23.2X1.6, 42X3, 25.4X0.9, 15x1, 19x1.5, 20x1, 20x1.5
Delivery Condition +C, +LC, +SC, +A, +N
Standard DIN 2393, ASTM-A513-t6, EN10305, ASTM A519, GOST 5005 -82, DIN2394, JIS-G3445, DIN2391 BS6323, GOST8734-75, IS3074, ASTM A513
Production process Material incoming inspection Surface treatment,Cold rolling Inspection,Rust preventive work,Warehouse storage

Application

Motorcycle front fork, Motor outer shell, Automobile shock absorber cylinder, Dust cover, Automobile shock absorber reservior, refrigaretion gas reservior

Standard Reference:
EN10305-2 <Welded cold drawn tubes>
EN10305-4 <Seamless cold drawn tubes for hydraulic and pneumatic power systems>
EN10305-6 <Welded cold drawn tubes for hydraulic and pneumatic power systems>
JIS-G3445 <Carbon steel tubes for Machine Structural Purpose>
DIN2393 <Welded precision steel tubes>
GB/T8713 <Precision ID seamless tubes for hydropneumatic purposes>
GB/T3639 <Cold-rolled and cold drawn precision seamless steel tubes>

Application:
Smooth Surface Automotive Steel Tubes Gas Spring Tube DIN2393 EN10305-2 0
Smooth Surface Automotive Steel Tubes Gas Spring Tube DIN2393 EN10305-2 1
Our Certifications:
Smooth Surface Automotive Steel Tubes Gas Spring Tube DIN2393 EN10305-2 2

PRODUCTION & QUALITY CONTROL


1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking.

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.



FAQ:

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
