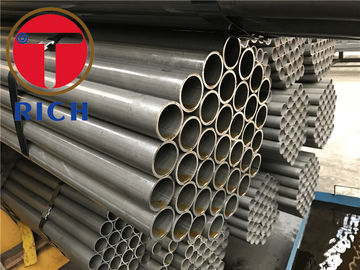

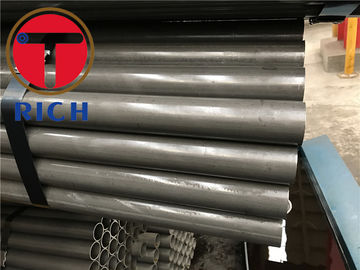

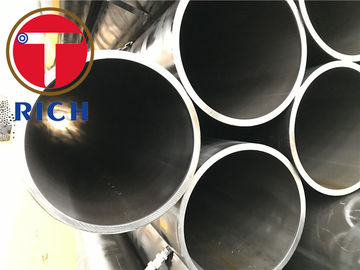

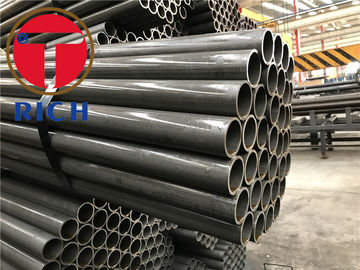

SAEJ525 DOM Steel Tube

Name: SAEJ525 DOM Steel Tube
Brand: TORICH INTERNATIONAL LIMITED
SKU: SAEJ525
Price: 650 USD
Availability: InStock

Brand Name:	Torich
Model Number:	SAEJ525
MOQ:	5 Tons
Price:	USD 650 per Ton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 Tons per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang China

Certification:

ISO

O.D.:

30-350mm

W.T.:

1-15mm

Name:

Cold Drawn Steel Tube

Surface Treatment:

Oiled

Material:

Carbon Steel

Packaging Details:

In hexagonal bundles or in wooden box

Supply Ability:

500 Tons per Month

Highlight:

drawn over mandrel steel tube

drawn over mandrel steel tubing

Product Description

Quick Detail:

SAE J525 Welded Cold Draw Low Carbon Steel Tubing annealed for bending and flaring

Size range: O.D.:30-350mm W.T.:1-15mm L: 12000mm or Cut to Short Pieces as specified length

Applications: for Bending and Flaring, Auto Parts

Manufacture:

The tubing is made from flat-rolled steel shaped into a tubular form, the edges of which are joined and fused together by electric-resistance welding. After forming and welding, the tubing is normalized and subject to a cold-drawing operation that shall result in a 15% minimum reduction in cross-sectional are, of which 8% shall consist in a reduction in wall thickness. Sequent to cold working, the tubing shall be normaIized via an atmospherically controlled method to produce a finished product that will meet all requirement of SAJ525

Dimensions and Tolerances:

The tolerances applicable to the tubing outside diameter and inside diameter are shown in Table 1.

The tolerances applicable to the tubing wall thickness are shown in Table 2

Dimensional tolerances can only apply to two of the three tubing dimensions ( OD, ID, or wall)

Unless otherwise agreed upon between customer and us., dimensional tolerances shall apply to the tube OD and wall dimensions.

Table 1- TUBING OUTSIDE DIAMETER TOLERANCE
Nominal Tubing OD mm	Tolerance OD ±mm	Tolerance ID ±mm
Up to 9.50	0.05	0.05
Over 9.50 to 15.88 inclusive	0.06	0.06
Over 15.88 to 50.80 inclusive	0.08	0.08
Over 50.8 to 63.50 inclusive	0.10	0.10
Over 63.50 to 76.20 inclusive	0.13	0.13
Over 76.20 to 100.00 inclusive	0.15	0.15
WT tolerance shall be not more than 10%

Table 2- TUBING WALL THICKNESS TOLERANCE
Nominal Wall Thickness	Nominal OD Through 22mm ±mm	Nominal OD 22-48mm ±mm	Nominal OD 48-100mm ±mm
0.89	0.05/0.05	0.05/0.05	0.05/0.05
1.00	0.05/0.05	0.05/0.08	0.05/0.08
1.25	0.05/0.05	0.05/0.08	0.05/0.08

1.50	0.05/0.05	0.05/0.08	0.05/0.08
1.65	0.05/0.05	0.05/0.08	0.05/0.08
2.00	0.05/0.05	0.05/0.08	0.05/0.08
2.11	0.05/0.05	0.05/0.08	0.05/0.08

2.410	0.05/0.05	0.05/0.08	0.08/0.08
2.500	0.05/0.08	0.05/0.10	0.08/0.08
2.770	0.05/0.08	0.05/0.10	0.08/0.08
3.000	0.05/0.08	0.05/0.10	0.08/0.08
3.050	0.05/0.08	0.05/0.10	0.08/0.08

3.40	-	0.05/0.10	0.08/0.08
3.75	-	0.05/0.10	0.08/0.08
4.00	-	0.08/0.10	0.08/0.10
4.19	-	0.08/0.10	0.08/0.10
4.57	-	0.10/0.10	0.08/0.13
5.00	-	0.10/0.13	0.10/0.13

Table 2- CHEMICAL REQUIREMENTS
Element	%
Carbon	0.06-0.18
Manganese	0.30 to 0.60
Phosphpris	0.040 max
Sulfur	0.050 max

Table 3- MECHANICAL PROPERTIES
Properties	Value
Yield Strength,min	170 Mpa
Ultimate Strenth,min	310 Mpa
Elongation in 50mm, min	35%
Hardness ( Rockwell B),max	65.00

Production Steel Tube:

Eddy Current Test and Ultrasonic Test:

SAEJ525 DOM Steel Tube 0

Packing:

SAEJ525 DOM Steel Tube 1
