Cold Drawn DOM Steel Tube ASTM A513 for Machinery Automotive
Product Details
drawn over mandrel steel tube
,dom metal tubing
| Standard | ASTM A513 |
| Material | 1008 1010 1018 1020 1026 1035 4130 4140 |
| Size | WT: 1-12.5mm; OD: 6-350mm; Length: max 12000mm |
| Applications | For Machinery, Mechanical Engineer, Automotive Parts |
| Production Method | Electric-Resistance-Welded And Cold Drawn |
| Delivery Condition | Sink-drawn, Normalizing,mandrel-drawn |
| Test | Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test etc |
| Advantage | Cutting For Customer Good Packing with Pallet Better Concentricity |
Chemical Composition
| Steel Grade | C max | Mn | P max | S max | Si max | Cr min | Mo |
| 1008 | 0.10 | 0.5 | 0.035 | 0.035 | | | |
| 1010 | 0.08-0.13 | 0.30-0.60 | 0.035 | 0.035 | | | |
| 1018 | 0.14-0.20 | 0.30-0.60 | 0.035 | 0.035 | | | |
| 1020 | 0.17-0.23 | 0.30-0.60 | 0.035 | 0.035 | | | |
| 1026 | 0.22-0.28 | 0.60-0.90 | 0.035 | 0.035 | | | |
| 1035 | 0.31-0.38 | 0.60-0.90 | 0.035 | 0.035 | | | |
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.035 | 0.035 | 0.15-0.35 | 0.80-1.10 | 0.08-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.00 | 0.035 | 0.035 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
Mechanical Properties
| Steel Grade | Yield Strength ksi Mpa | Ulitmate Strength ksi Mpa | Elongation % | RB min | RB max |
| 1008 | 30 207 | 42 290 | 15 | 50 | |
| 1010 | 32 221 | 45 310 | 15 | 55 | |
| 1020 | 38 262 | 52 359 | 12 | 62 | |
| 1026 | 45 310 | 62 427 | 12 | 68 | |
| 1035 | 50 345 | 66 455 | 10 | 75 | |
| 4130 | 55 379 | 72 496 | 10 | 80 | |
| 4140 | 70 485 | 90 621 | 10 | 85 | |
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

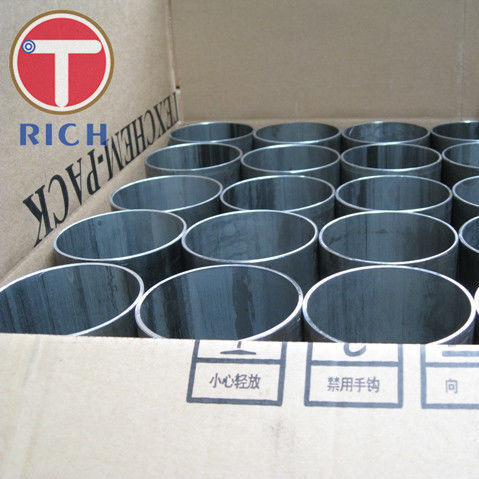

PACKING:
Each tube in a plastic bag, then put tubes in a seaworthy woven bag ,each unit weight 400kg-500kg/bundle.
With strong wood structure box packing by containers loading and shipping.
Or as customer's requirement.
20 ft container - GP: 5.8m (Length) * 2.13m (Width) * 2.18m (Height) ------ Max Gross Weight: 25MT/container.
40 ft container - GP: 11.8m (Length) * 2.13m (Width) * 2.18m (Height) ------ Max Gross Weight: 27MT/container.
40 ft container - HG: 11.8m (Length) * 2.13m (Width) * 2.72m (Height) ------ Max Gross Weight: 27MT/container.
Port Shanghai
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
-
