Cold Drawn DOM Steel Tube , EN10305-2 Motorcycle Steel Tube Welded Precision
Product Details
drawn over mandrel steel tube
,drawn over mandrel steel tubing

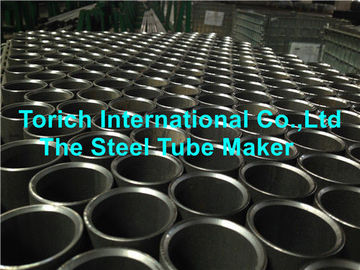

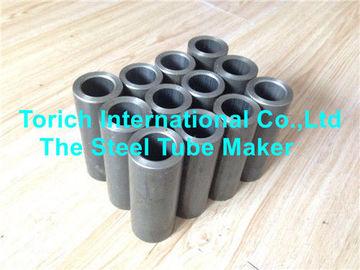

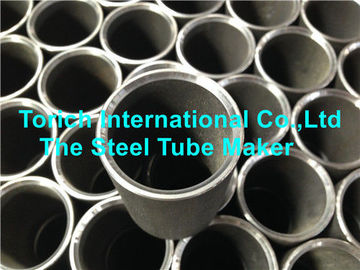

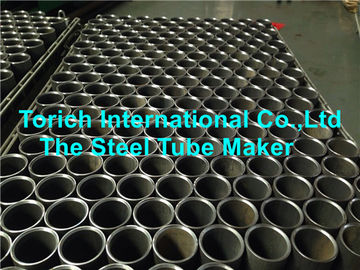

Torich Motorcycle Steel Tube EN10305-2 Welded Precision Cold Drawn DOM Steel Tube
EN10305-2 DOM Pipe for Motorcycle Shock Absorbers
Basic detail information
1. Grade:E155 E195 E235 E275 E355
2. Size: O.D.:6-350mm W.T.:1-35mm L:max12000mm
3. Standard: EN10305-2
4. Certification: ISO9001, ISO14001,TS16949
5.Applications: for Auto industry/for machinery use/Oil Cylinder Tube/Motorcycle shock absorber
Auto shock absorber inner cylinder/Telescopic Cylinders
6.Characteristic:High precision with smooth ID tolerance and roughness
Cold drawn ERW tubes as per EN 10305-2 is use in Cylinder making.It is high quality tube ,which is defferent form seamless tubes and welded.When in production process,It will puls a finishing stage with cold drawn.So the tubes
will be a better dimensional tolerances. better suface and the strong.
Steel Grade and Chemical Compositions
| Steel Grade | C | Si | Mn | P | S | |
| Steel name | Steel number | max | max | max | max | max |
| E155 | 1.0033 | 0.11 | 0.35 | 0.70 | 0.025 | 0.025 |
| E195 | 1.0034 | 0.15 | 0.35 | 0.70 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 |
| E275 | 1.0225 | 0.21 | 0.35 | 1.40 | 0.025 | 0.025 |
| E355 | 1.0580 | 0.22 | 0.35 | 1.60 | 0.025 | 0.025 |
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of Motorcycle Steel Tube EN10305-2 Welded Precision Cold Drawn DOM Steel Tube for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
-
