Cold Drawn Seamless Carbon Steel Tubes Round Shape Tube Machining For Automotive
Product Details
thin wall steel tubing
,steel mechanical tubing
| Standard | ASTM A500 GB/T3094 |
| Matrial | 10# 20# Grade A,B,C,D Carbon Steel |
| Size | OD: 12-1200mm WT: 1-22mm Length: Customer's Requirement |
| Application | For Automotive Purpose |
| Manufacture | Tubes are made by seamless process. The tubing may be stress relieved or annealed, as is considered necessary by the tubing manufacturer, to conform to the requirements of this specification. |
| Test and Inspection | Mechanical Test, Tension Test Flattening Test, Hardness Test |
| Element | Grade A, B and D | Grade C | ||
| Heat Analysis | Product Analysis | Heat Analysis | Product Analysis | |
| Carbon, max | 0.26 | 0.30 | 0.23 | 0.27 |
| Manganese, max | 1.35 | 1.40 | 1.35 | 1.40 |
| Phosphorus, max | 0.035 | 0.045 | 0.035 | 0.045 |
| Sulfur, max | 0.035 | 0.045 | 0.035 | 0.045 |
| Copper, min | 0.20 | 0.18 | 0.20 | 0.18 |

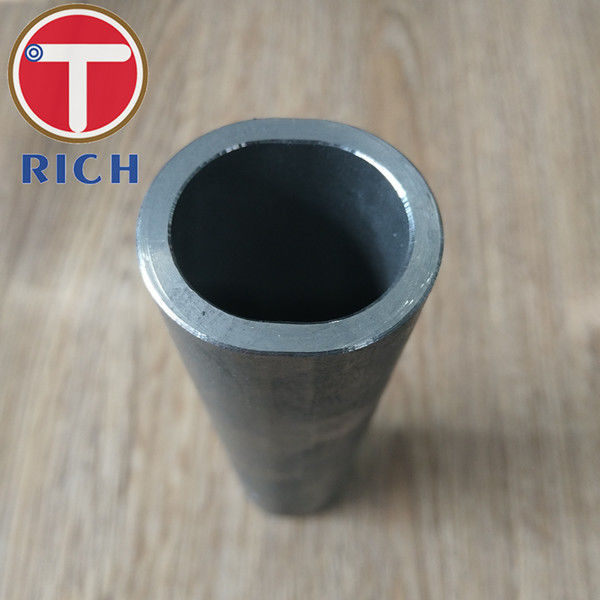

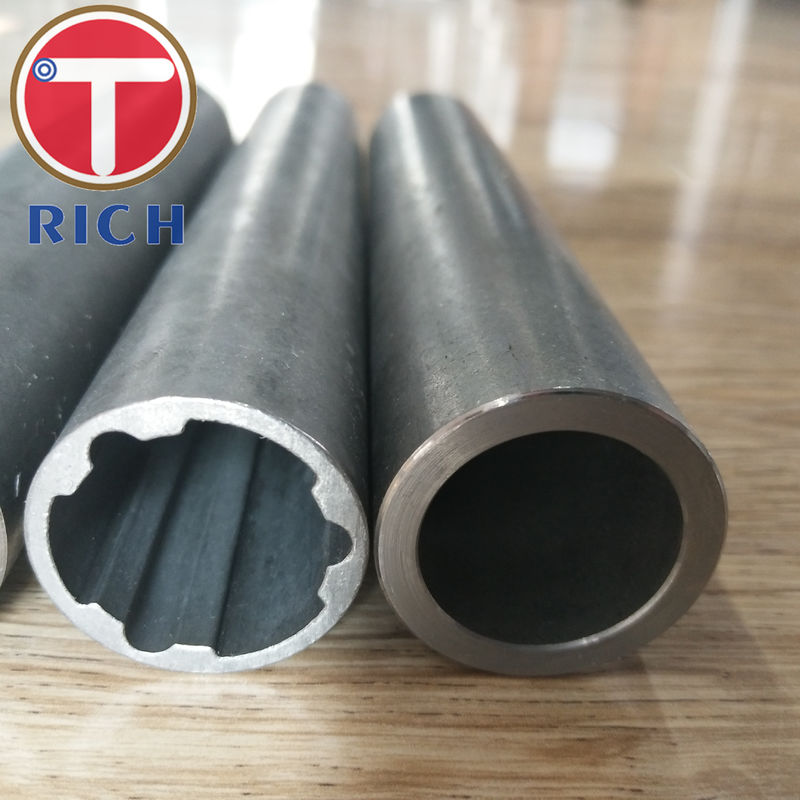

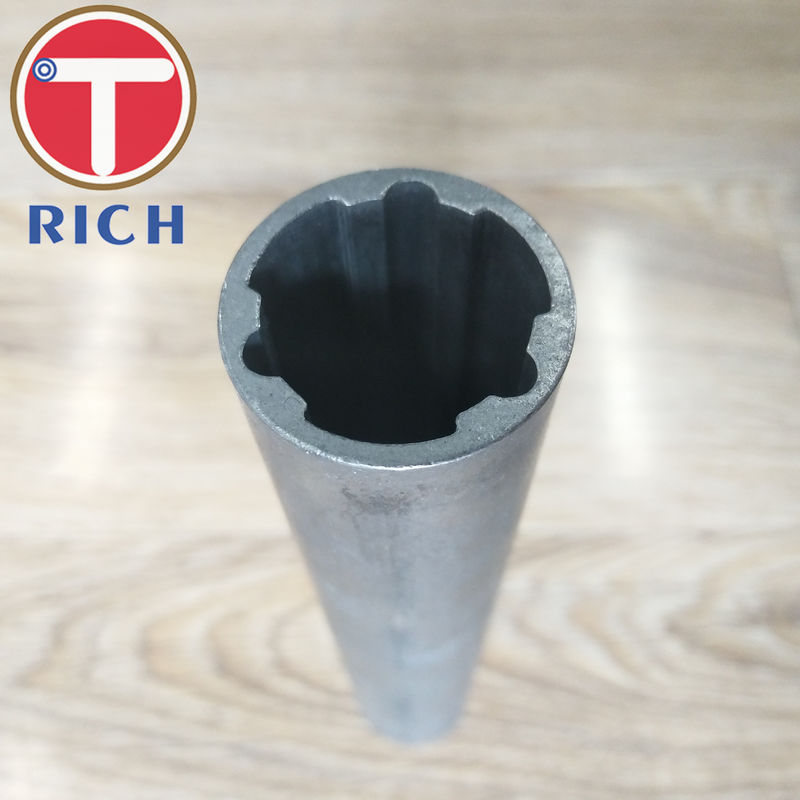

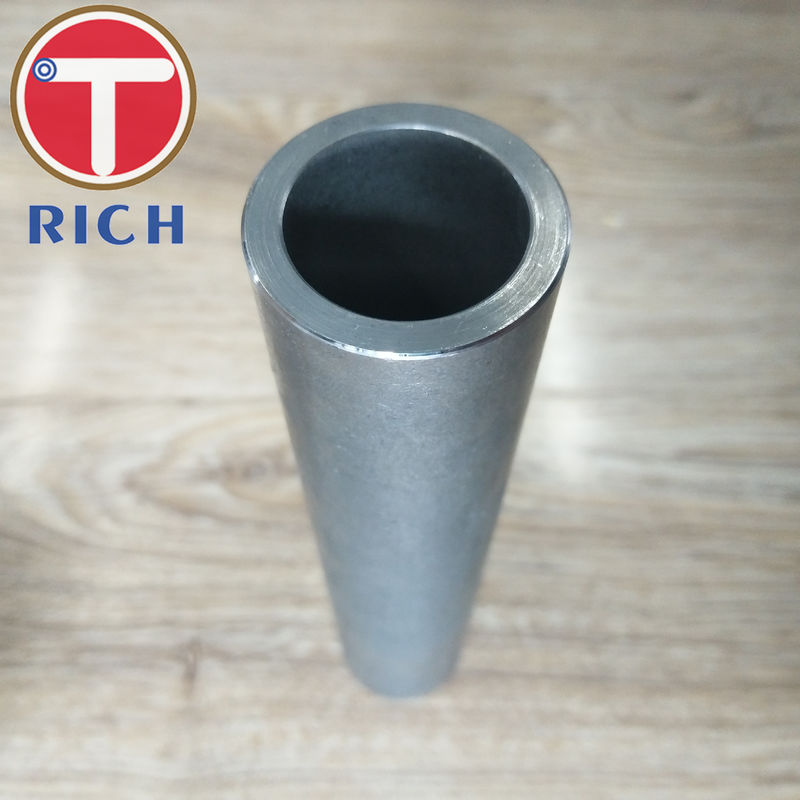

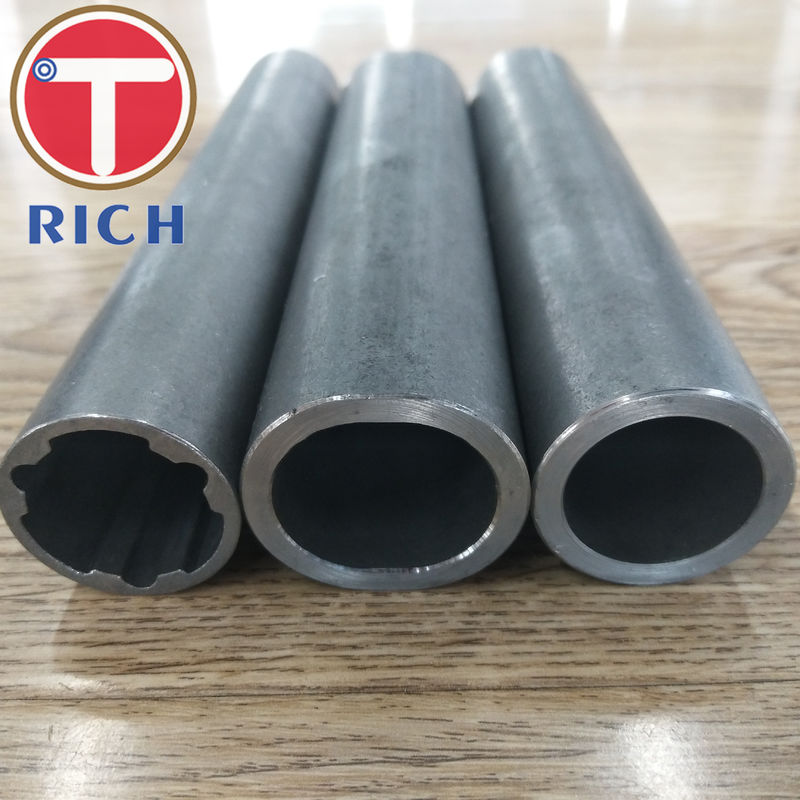

Product Show
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
