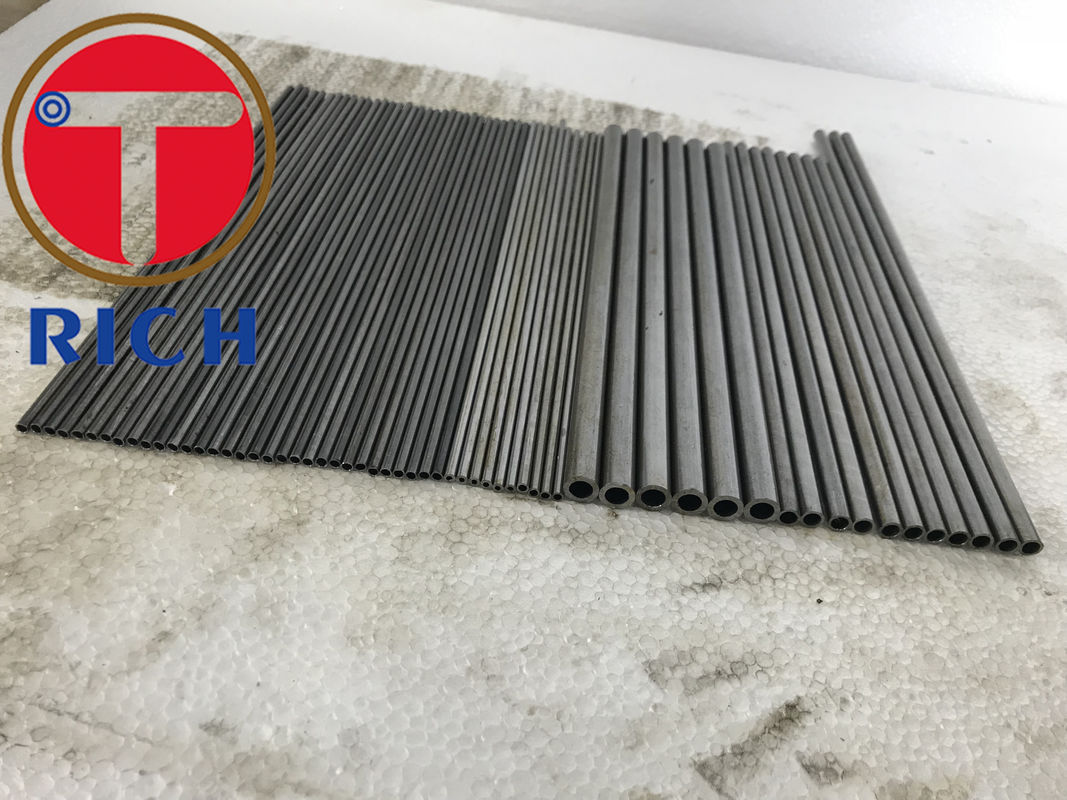

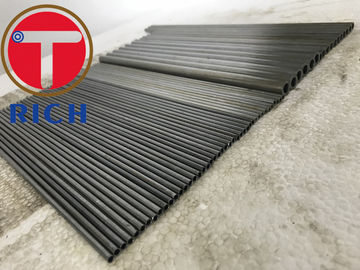

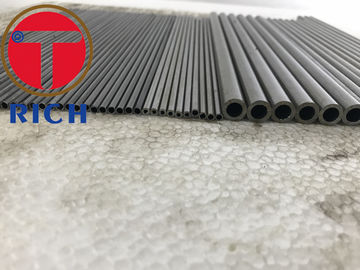

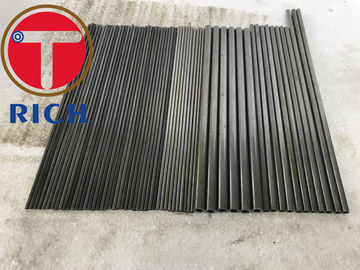

Small Diameter Hydraulic Cylinder Tube Carbon Steel Seamless With Thick Wall

Basic Properties
Place of Origin: Zhejiang China
Brand Name: TORICH
Certification: ISO
Model Number: ASTM A53-2007
Trading Properties
Minimum Order Quantity: 5 TONS
Price: USD 3000 per Ton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Tons per Month
Tags

honed hydraulic cylinder tubing

hydraulic cylinder pipe

honed hydraulic cylinder tube
Product Summary
JIS S10C Small Diameter Seamless Capillary Steel Tube Chemical Composition(%) Mechanical Property C Si Mn S P Cr Ni Cu Mo Yield Strength Tensile Strength ( σs ) ( σb ) 0.07~0.14 0.17~0.37 0.35~0.65 ≤0.04 ≤0.35 ≤0.15 ≤0.25 ≤0.25 / ≥205(25) (MPa) ≥ 410(42) (MPa) End Shape Beveled end, plain end, ...

Product Details

Highlight:

honed hydraulic cylinder tube

,

hydraulic cylinder pipe
Standard: ASTM, DIN, GB, JIS
Grade: 10#, 20#, 45#, 16Mn, A213
Thickness: 0.5 - 8 Mm
Outer Diameter(Round): 3 - 80 Mm
Alloy Or Not: Non-alloy
Color Of Steel Tube: Slivery
Tensile Strength Of Steel Tube:: ≥ 410(MPa)
Yield Strength Of Steel Tube: ≥205 (MPa)
Product Description

JIS S10C Small Diameter Seamless Capillary Steel Tube



Chemical Composition(%) Mechanical Property
C Si Mn S P Cr Ni Cu Mo Yield Strength Tensile Strength
( σs ) ( σb )
0.07~0.14 0.17~0.37 0.35~0.65 ≤0.04 ≤0.35 ≤0.15 ≤0.25 ≤0.25 / ≥205(25) (MPa) ≥ 410(42)
(MPa)
End Shape Beveled end, plain end, vanished, or adding plastic caps to protect the two ends as per customer's requirements
Surface Oiled, Galvanized, Phosphate etc
Treatment
Technique Cold drawn
Application 1. Automotive and mechanical pipes
2. Petroleum cracking pipes
3. High Pressure Boiler Pipe
4. Low and middle pressure fluid transportation pipeline
5. Chemical fertilizer equipment pipes
6. Heat exchanger pipes
Delivery 1. BK (+C) No heat treatment after last cold forming process.
Conditions 2. BKW (+LC) After last heat treatment there is a light finishing pass (cold drawing)
  3. BKS (+SR) After the final cold forming process the tubes are stress relieve annealed.
  4. GBK (+A) After the final cold forming process the tubes are annealed in a controlled atmosphere.
  5. NBK (+N) After the final cold forming process the tubes are annealed above the upper transformation point in acontrolled atmosphere.
Package 1. Bundle Packing.
2. Plain end or vanished as per customer's request.
3. Wrapped in waterproof paper.
4. Sackcloth with several steel strips.
5. Pack in heavy tri-wall boxes.



QUALITY CONTROL



1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.





Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us









Mr. Richard SHEN

Managing Director
