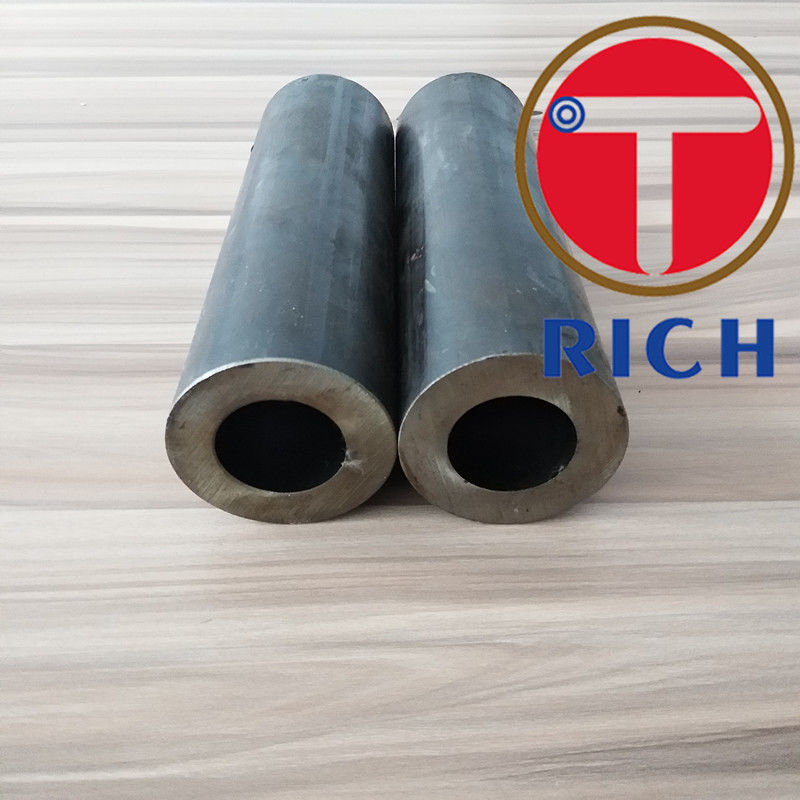

Heavy Wall Honed Seamless Cold Drawn Steel Tube Mechanical En10305-1 Astm A513
Product Details
cold drawn seamless tube
,cold drawn steel tube
EN10305-1/ASTM A513 Cold Drawn Heavy Wall Mechanical Seamless Honed Tube
Standard: ASTM A513
Grade Group: A53-A369
Thickness: 0.5 - 50 mm
Outer Diameter(Round): 5 - 420 mm
Surface Treatment: Bright
Technique: Cold Drawn, Cold Drawing
Material: SAE1010,SAE1020,SAE1026,SAE4130,SAE4140
L: max12000mm
1. ASTM A519 Oil cylinder Seamless Carbon and Alloy Steel Mechanical Tubing
2. Steel Grade: SAE1010,SAE1020,SAE1026,SAE4130,SAE4140
3. Porudction Method: Cold drawing + Honing + Skiving Roller Bunish
4. Packing: Could be in Cartons or Wooden Box
We offer Cut to short lengths according to customer reqirement and drawings.
| Chemical composition | ||||||
| Steel Grade | C% | Si% | Mn% | P% | S% | AL% |
| St30Al or E215 | ≤0.10 | ≤0.05 | ≤0.7 | ≤0.025 | ≤0.025 | ≥0.025 |
| St35 or E235 | ≤0.17 | ≤0.35 | 0.4-1.2 | ≤0.025 | ≤0.025 | |
| St45 or E255 | ≤0.21 | ≤0.35 | 0.4-1.1 | ≤0.025 | ≤0.025 | |
| St52 or E355 | ≤0.22 | ≤0.55 | ≤1.6 | ≤0.025 | ≤0.025 | |
| Mechanical properties at room temperature | |||||||||
| Delivery condition | BK | BKW | GBK | NBK (N) | |||||
| steel Grade | Rm Mpa (Min) | A %(Min) | Rm Mpa(Min) | A %(Min) | Rm Mpa(Min) | A %(Min) | Rm Mpa(Min) | ReH Mpa(Min) | A %(Min) |
| St30Al or E215 | 430 | 8 | 380 | 12 | 280 | 30 | 290 to 430 | 215 | 30 |
| St35 or E235 | 480 | 6 | 420 | 10 | 315 | 25 | 340 to 480 | 235 | 25 |
| St45 or E255 | 580 | 5 | 520 | 8 | 390 | 21 | 440 to 570 | 255 | 21 |
| St52 or E355 | 640 | 4 | 580 | 7 | 450 | 22 | 490 to 630 | ||
PACKING
In hexagonal bundles packaging with woven
