Precision Steel Hydraulic Cylinder Tube GB/T 24187 Cold Drawn For Evaporator
Product Details
honed hydraulic cylinder tubing
,hydraulic cylinder pipe
TORICH GB/T 24187 Cold-Drawn Precision Single Welded Steel Tubes
Spec:
Material:C Si Mn P S
Size Range:OD:3.18-18mm
WT:0.3-1.3mm
General Length:1.5-4m
Tolerance:
According to the following tables or customers’ request.
Table 1 Outer diameter, wall thickness and theoretical weight
| OD/mm | WT/mm | |||||||||
| 0.30 | 0.40 | 0.50 | 0.60 | 0.65 | 0.70 | 0.80 | 0.90 | 1.00 | 1.30 | |
| theoretical weight /(kg/m) | ||||||||||
| 3.18 | 0.0213 | 0.0274 | 0.0330 | |||||||
| 4.00 | 0.0274 | 0.0355 | 0.0432 | 0.0503 | ||||||
| 4.76 | 0.0330 | 0.0430 | 0.0525 | 0.0616 | 0.0659 | 0.0701 | ||||
| 5.00 | 0.0348 | 0.0454 | 0.0555 | 0.0651 | 0.0697 | 0.0742 | ||||
| 6.00 | 0.0422 | 0.0552 | 0.0678 | 0.0799 | 0.0858 | 0.0915 | 0.1026 | 0.1132 | 0.1233 | |
| 6.35 | 0.0448 | 0.0587 | 0.0721 | 0.0851 | 0.0914 | 0.0975 | 0.1095 | 0.1210 | 0.1319 | |
| 7.94 | 0.0565 | 0.0744 | 0.0917 | 0.1086 | 0.1169 | 0.1250 | 0.1409 | 0.1563 | 0.1712 | 0.2129 |
| 8.00 | 0.0570 | 0.0750 | 0.0925 | 0.1095 | 0.1178 | 0.1260 | 0.1421 | 0.1576 | 0.1726 | 0.2148 |
| 9.53 | 0.0683 | 0.0901 | 0.1113 | 0.1321 | 0.1423 | 0.1524 | 0.1722 | 0.1915 | 0.2104 | 0.2639 |
| 10.00 | 0.0718 | 0.0947 | 0.1171 | 0.1391 | 0.1499 | 0.1605 | 0.1815 | 0.2020 | 0.2220 | 0.2789 |
| 12.00 | 0.0866 | 0.1144 | 0.1418 | 0.1687 | 0.1819 | 0.1951 | 0.2210 | 0.2464 | 0.2713 | 0.3430 |
| 12.70 | 0.0917 | 0.1213 | 0.1504 | 0.1790 | 0.1932 | 0.2072 | 0.2348 | 0.2619 | 0.2885 | 0.3655 |
| 14.00 | 0.1014 | 0.1342 | 0.1665 | 0.1983 | 0.2140 | 0.2296 | 0.2604 | 0.2908 | 0.3206 | 0.4072 |
| 15.88 | 0.1153 | 0.1527 | 0.1896 | 0.2261 | 0.2441 | 0.2621 | 0.2975 | 0.3325 | 0.3670 | 0.4674 |
| 16.00 | 0.1162 | 0.1539 | 0.1911 | 0.2279 | 0.2461 | 0.2641 | 0.3000 | 0.3352 | 0.3699 | 0.4713 |
| 18.00 | 0.1310 | 0.1736 | 0.2158 | 0.2575 | 0.2781 | 0.2987 | 0.3393 | 0.3795 | 0.4192 | 0.5354 |
| Theoretical weight of no additional coating, density of steel is 7.85 kg/ | ||||||||||
Table2 Allowable deviation of outer diameter of steel pipe
| Outer diameter | Common precision | High precision |
| ＜4.76 | ±0.08 | ±0.05 |
| 4.76-8.00 | ±0.12 | ±0.07 |
| ＞8.00-12.00 | ±0.16 | ±0.10 |
| ＞12.00 | ±0.20 | ±0.12 |
Table 3 Permissible deviation of steel tube wall thickness
| Wall thickness | Permissible deviation |
| ＜0.70 | ±0.05 |
| ≥0.70 | ±0.07 |
Table 4 Allowable deviation of specified length of steel pipe
| Length | Allowable deviation |
| ≤2000 | +4 0 |
| ＞2000-5000 | +7 0 |
| ＞5000-8000 | +10 0 |
TABLE 5 Chemical Composition Of Steel Strip (Mass Fraction)%
| Category | C | Si | Mn | P | S |
| Cold rolled low carbon steel strip | ≤0.08 | ≤0.03 | ≤0.30 | ≤0.030 | ≤0.030 |
| Cold rolled ultra low carbon steel strip | ≤0.008 | ≤0.03 | ≤0.25 | ≤0.020 | ≤0.030 |
TABLE 6 Mechanical Properties Of Cold Rolled Low Carbon Steel Strip
| Thickness /mm | Tensile Strength
| Yield Strength
| Elongation A/% |
| 0.25~＜0.35 | ≥270 | ≥32 | |
| 0.35~＜0.50 | ≥34 | ||
| ≥0.50 | ≥36 | ||
| a Replace with b Sample type of sample number D14 in GB/T 228-2002. | |||
TABLE 7 Mechanical Properties Of Cold Rolled Ultra-low Carbon Steel Strip
| Thickness /mm | Tensile Strength
| Yield Strength
| Elongation A/% |
| ≤0.50 | ≥280 | 130~250 | ≥38 |
| ＞0.50 | ≥40 | ||
| a Replace with b Sample type of sample number P14 in GB/T 228-2002. | |||
TABLE 8 Mechanical properties of steel pipe
| Category | Tensile Strength
| Yield Strength
| Elongation A/% |
| Ordinary steel pipe(MA) | ≥270 | ≥180 | ≥14 |
| Soft steel tube(MB) | ≥230 | 150~220 | ≥35 |
| a Replace with b Sample type of sample number S7 in GB/T 228-2002. | |||
Characteristic:
TORICH QUALITY ASSURANCE
Good surface quality
Good OD and ID tolerance controlled to Technical Standard
Stable quality
100% Eddy Current Test
Processing:W-H W-C
Widely used in the field of:Condenser, evaporator, cooler tube fuel pipe of refrigeration,automobile and electric appliance industrial

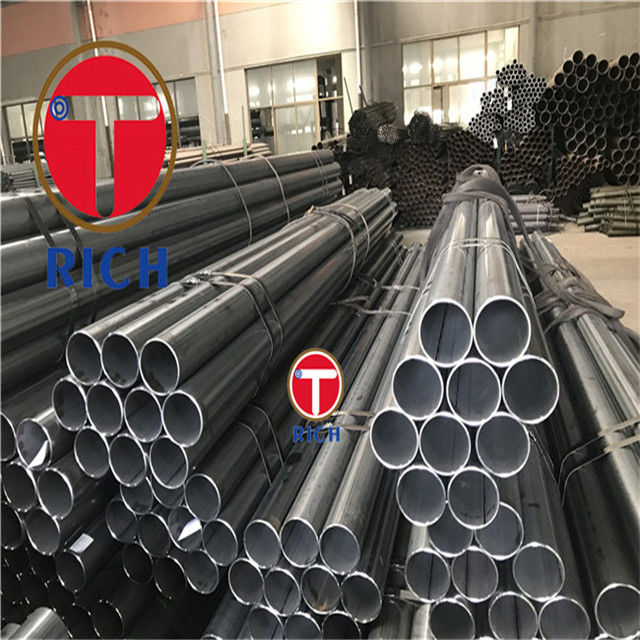

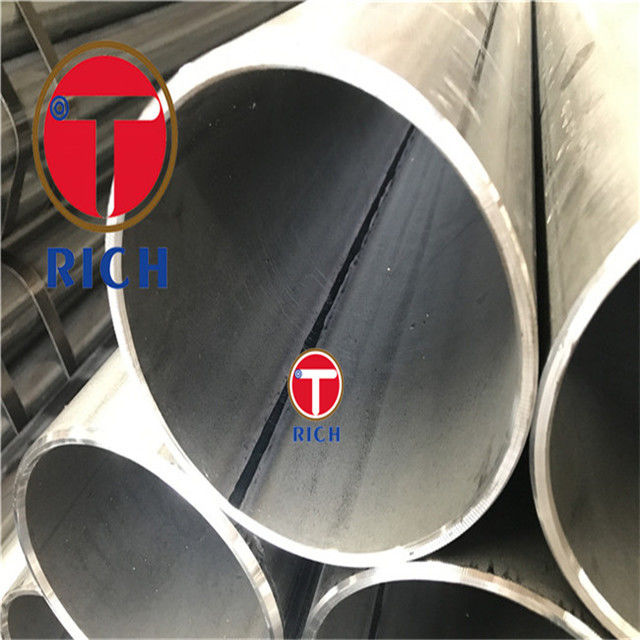

Product Images:
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
-
