Galvanized DIN 2440 EN10255 Threaded Welded Seamless Steel Pipe For Transportations
Product Details
structural steel tubing
,cold formed steel tube

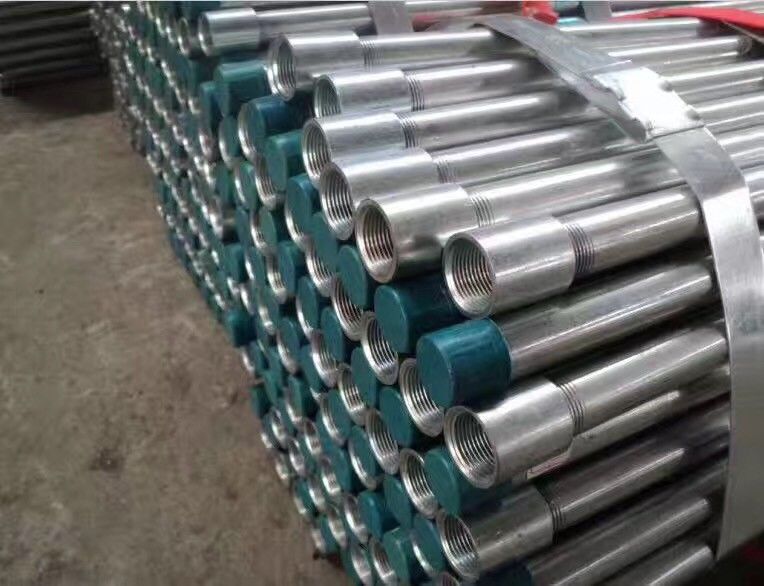

Good Quality DIN2440 EN10255 Seamless Steel Pipe for Transportations
The pipe follow the DIN2440 EN10255 is for circular non- alloy steel tubes suitable for welding and threading and provides a number of options for the finish of tube ends and coatings. This standard covers tubes of steel outside diameter 10.2mm to 1651mm (thread size 1/8 to 6) in two series, medium and heavy, and three types of designated thicknesses.
Medium-weight threaded steel tubes
Application:
air, water, non-aggressive gas and fluid transportation
Steel Name: S195T
Steel Number: 1.0026
Chemical Composition:
C 0.20 max
Mn 1.40 max
P 0.035 max
S 0.030 max
Mechanical Properties
| Upper Yield strength ReH min | 195(MPa) |
| Tensile strength Rm | 320 to 520 (MPa) |
| Elongation A min% | 20 |
Type of length and tolerance
Welded:
Standard 6 or 6.4m (+150 -50) mm
Random 4≤ L≤ 16 with a range of 2m per order item
Up to 10% of tubes supplied may be below the minimum length ordered, but not shorter than 75% of the minimum range length
Exact L≤6 (+10,0)mm
6〈L≤12 (+15,0)mm
L＞12 (+by agreement,0)
Seamless:
Standard 6 or 6.4m (+150 -50) mm
Random 4≤ L≤ 16 with a range of 2m per order item
Up to 10% of tubes supplied may be below the minimum length ordered, but not shorter than 75% of the minimum range length
Exact L≤6 (+10,0)mm
6〈L≤12 (+15,0)mm
L＞12 (+by agreement,0)
Packing:
Production Workshop:
-
