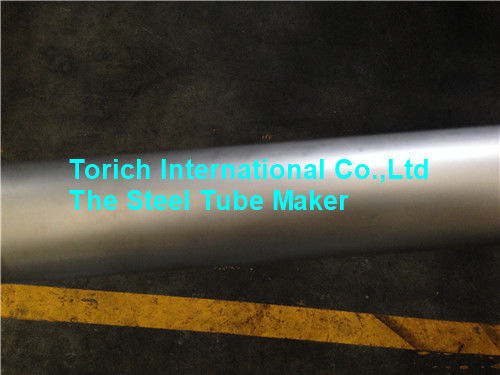

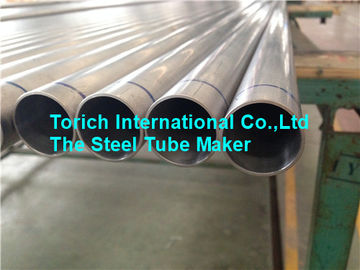

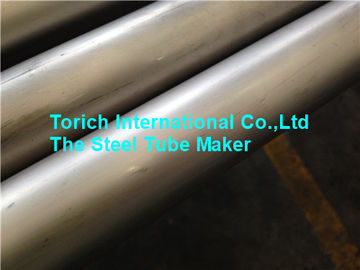

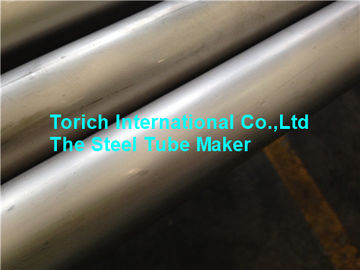

Aircraft Engine Hastelloy X Alloy Steel Pipe Nickel Based Superalloy With Iron
Product Details
alloy steel seamless tube
,seamless alloy steel pipe
Alloy Steel Pipe HastelloyX
Hastelloy X is a kind of nickel-based superalloy with high iron content, which is mainly solution strengthened by chromium and molybdenum solution strengthening. It has good resistance to oxidation and corrosion resistance. It has good cold & hot formability and weldability because its moderate lasting and creep strength under 900℃. Used in the manufacture of aircraft engine combustion chamber components and other high temperature components. It can be long-term used under 900℃, and short-term working temperature can up to 1080℃.
Similar Grade of Hastelloy X: GH3536, GH536,GH22, GH334, GH739, SG-5, UNS N06002, NC22FeD, NiCr22FeMo, Nimonic PE13, Hastelloy H
Application for Hastelloy X: Used in the manufacture of aircraft engine combustion chamber components and other high temperature components
Chemical Composition of Hastelloy X:
| Chemical Composition (%) | ||||||||||||||
| C | Cr | Ni | Co | W | Mo | Al | Ti | Fe | B | Cu | Mn | Si | P | S |
| 0.05-0.15 | 20.5-23.0 | Margin | 0.50-2.50 | 0.20-1.00 | 8.0- 10.0 | ≤0.50 | ≤0.15 | 17.0-20.0 | ≤0.010 | ≤0.5 | ≤1.00 | ≤1.00 | ≤0.025 | ≤0.015 |
Hastelloy X Physical Properties:
Hastelloy X Density: ρ: 8.28g/cm³
Hastelloy X Melting Temperature Rage: 1295℃-1381℃
Coefficient of Thermal Conductivity of Hastelloy X:
| coefficient of thermal conductivity | |||||||||
| Temperature ℃ | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 |
| λ/(w/(m.℃)) | 13.38 | 17.97 | 20.27 | 22.4 | 24.62 | 26.79 | 29.05 | 31.14 | 33.44 |
Specific Heat Capacity for Hastelloy X:
| Specific Heat Capacity | ||||||||||
| Temperature ℃ | 17 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 |
| C/J/( kg · K ) | 372.6 | 372.6 | 389.4 | 456.4 | 427.1 | 452.2 | 464.7 | 515 | 535.9 | 561 |
Expansion Coefficient for Hastelloy X:
| expansion coefficient | |||||||||
| Temperature/℃ | 20-100 | 20-200 | 20-300 | 20-400 | 20-500 | 20-600 | 20-700 | 20-800 | 20-900 |
| α1/10-6℃-1 | 12.1 | 12.5 | 13.4 | 14 | 14.3 | 14.8 | 15.5 | 15.8 | 16.1 |
Resistivity of Hastelloy X:
| resistivity | |||||||||
| Temperature/℃ | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 |
| Resistor Ω·m | 1.18 | 1.2 | 1.21 | 1.22 | 1.24 | 1.25 | 1.26 | 1.27 | 1.29 |
Hastelloy X is widely used in aircraft engine and the civilian industry in adroad, and in our country, it mainly used in the manufacture of hot end of combustion chamber parts and other components, and honeycomb structure, etc. Besides, long-term used at high temperature will have certain age hardening phenomenon.
-
