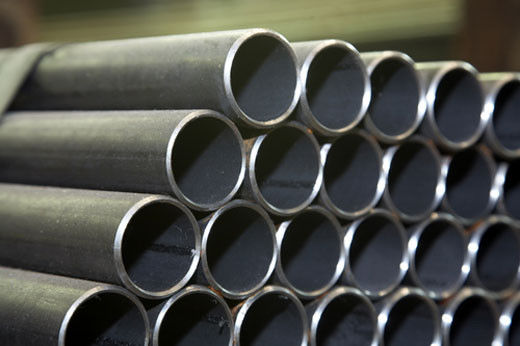

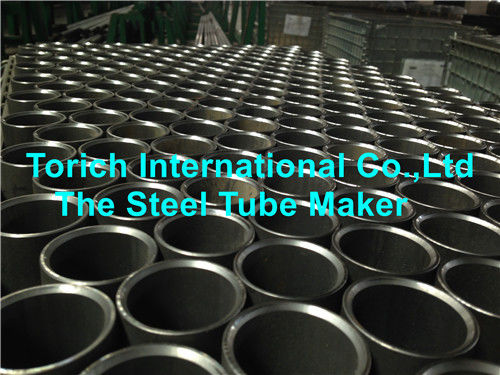

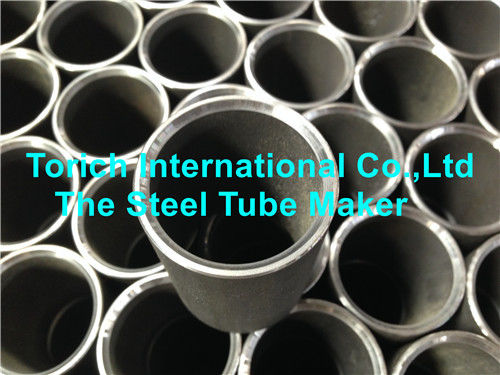

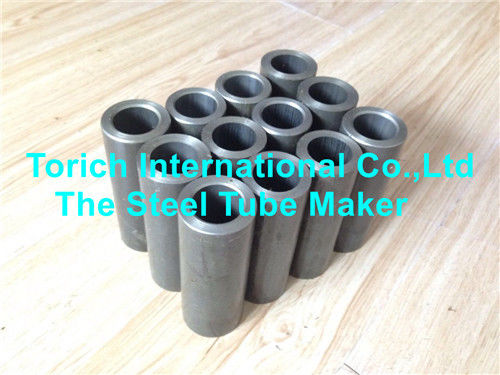

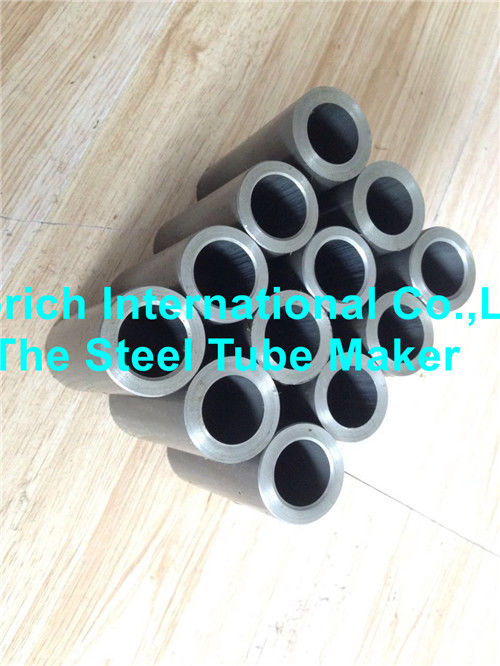

JIS G3445 STKM 15A Drawn Over Mandrel Steel Tube Seamless And Electric Resistance
Product Details
drawn over mandrel steel tube
,drawn over mandrel steel tubing
JIS G3445 STKM 15A Drawn Over Mandrel Steel Tube Seamless And Electric Resistance
Product Name:Carbon steel tubes for machine structural purposes
Appllication: Machine Auto competent Furniture Bicycle Mechanical parts Mechanical Elements machine elements
1.Grade
STKM 11A
STKM 12 (ABC)
STKM 13(ABC)
STKM 14(ABC)
STKM 15(AC) etc
Standard JIS G3445
2.OD:4-60mm,Wall thickness:0.5-7mm
3.Characteristic:The tubes are high precision in tolerance
4.Kindly advise heat treatment requirement if any.
HR CW SR A N HF
HR:hot rolled CW:cold worked SR:stress relieved A:annealed N:normalized HF: hot formed.
5.STKM 15A Chemical composition % max:C:0.25-0.35 S:0.35 Mn:0.30-1.00 P:0.04 S:0.04
Mechanical properties:min Tensile strength 470Mpa Yield Strength:275 Mpa Elongation:22%
| Tolerances on OD | |
| Division | Tolerance on OD |
| No.1 | under 50mm ±0.5mm |
| No.2 | under 50mm ±0.25mm |
| No.3 | under 25mm ±0.12mm |
Note:1. For hot finished seamless steel tube, the outside diameter tolerance No.1 shall be applied.
2.The tolerance on outside diameter of quenched and tempered tubes shall be as agreed upon by the purchaser and manufacturer.
| Tolerances on WT | |
| Division | Tolerance on WT |
| No.1 | under 4mm +0.6mm -0.5mm |
| No.2 | under 3mm ±0.3mm |
| No.3 | under 2mm ±0.15mm |
Note: For the finished seamless steel tubes the tolerances No.1 shall be applied.
The tolerances on the tube length shall be in the range of 0 to+50mm.However,when tolerances outside this range are especially required,agreement shall be made between the purchaser and manufacturer.
(DOM)Drawn Over Mandrel :
The first stages of manufacturing : ERW ,but in the finishing stages : Entire flash weld is removed and the tube is clod drawn over a mandrel.which provides the tube with a better dimensional tolerances,good surface finish and the strongest weld strength achievable.
-
