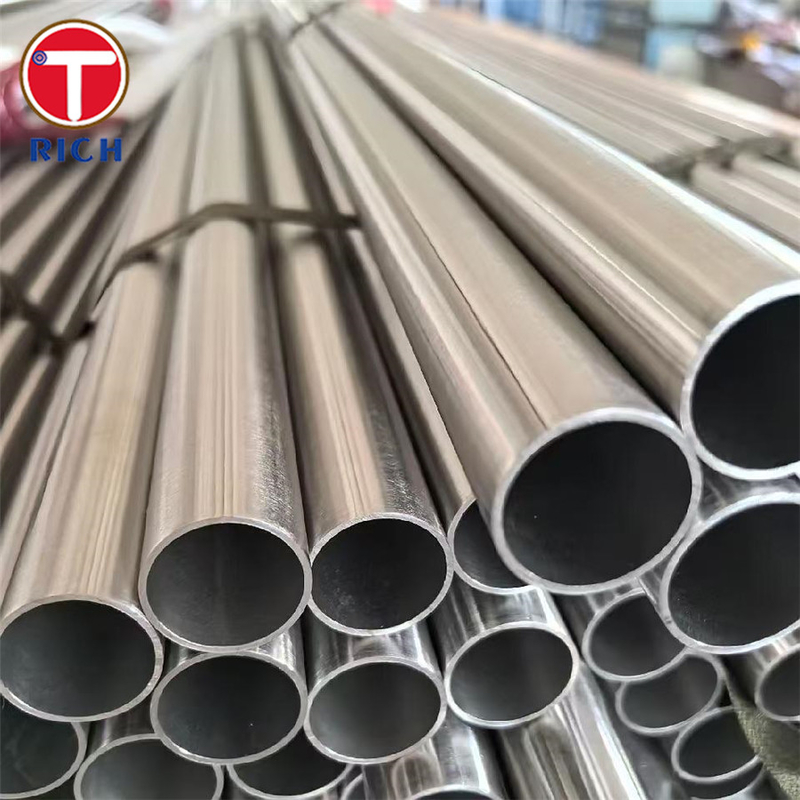

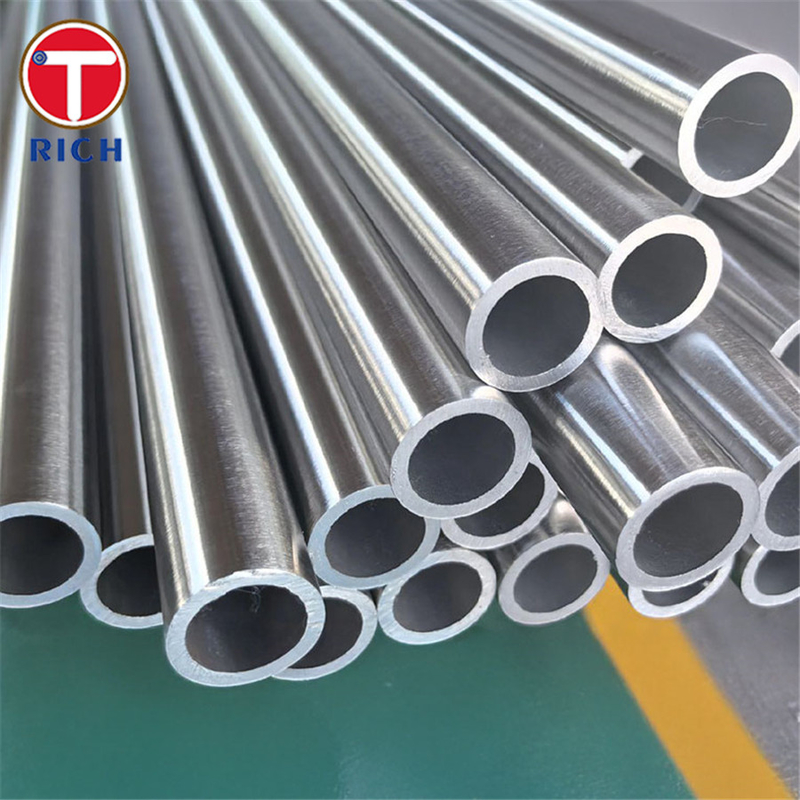

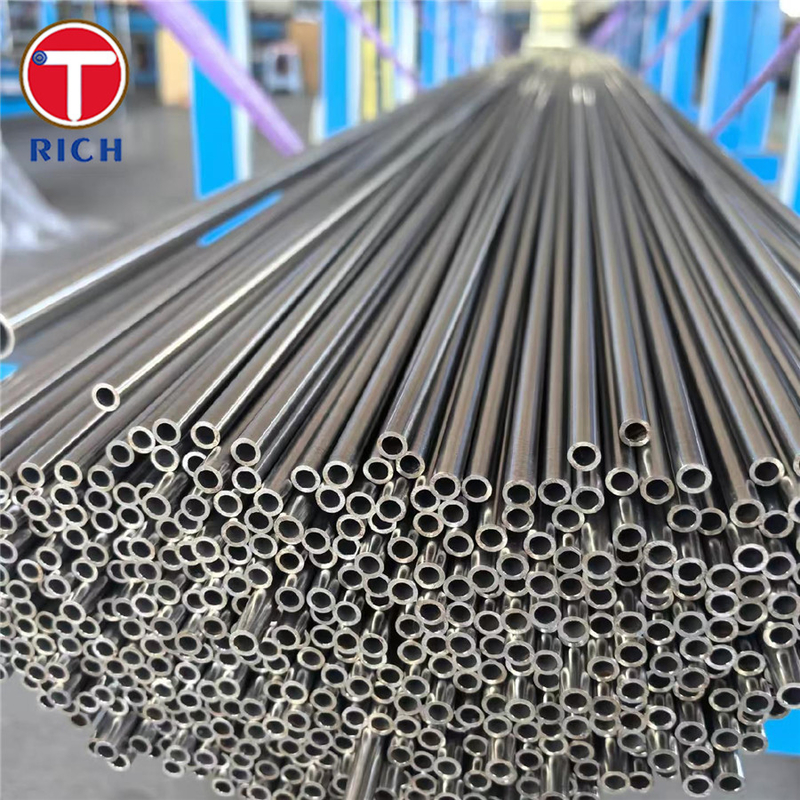

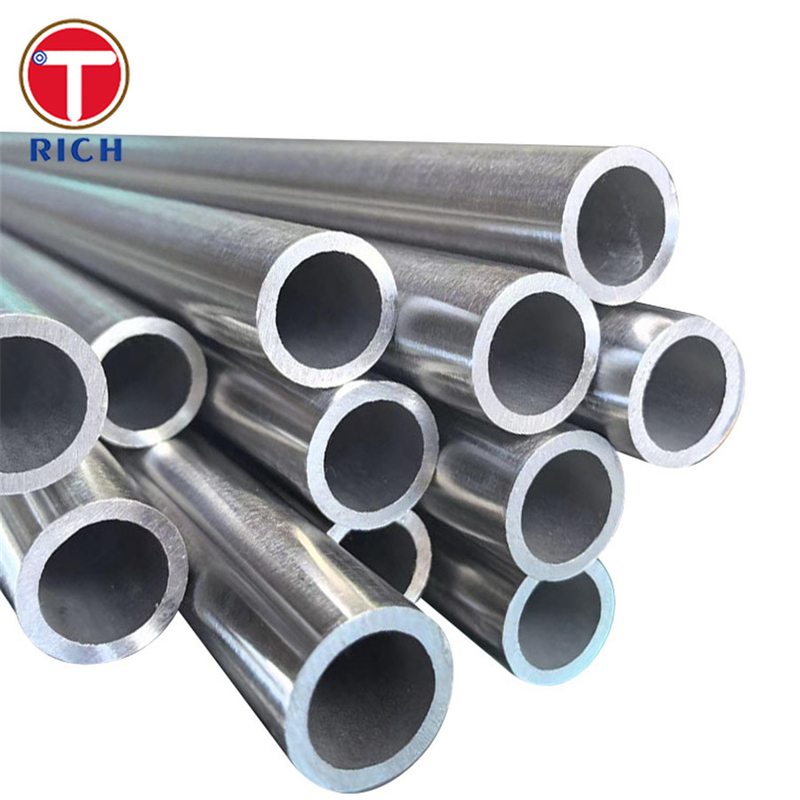

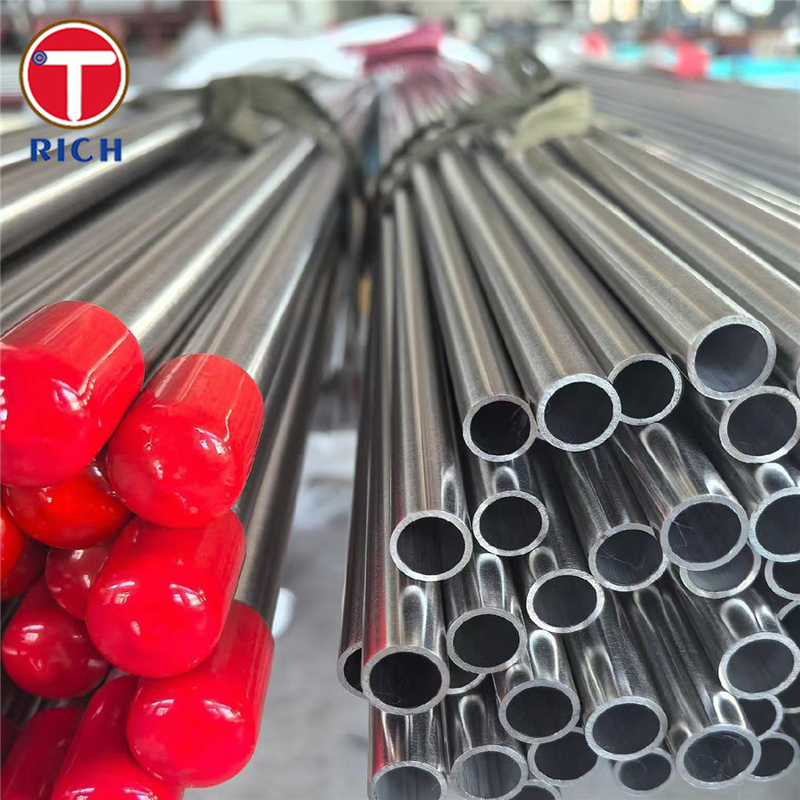

20X20H14C2 AISI 309 Stainless Steel Seamless Pipe For High Temperature Container
Material
20X20H14C2 (also known as AISI 309) stainless steel is a chromium-nickel alloy steel known for exceptional oxidation and corrosion resistance at elevated temperatures. Its chemical composition and microstructure make it ideal for manufacturing seamless pipes used in high-temperature containers, furnaces, and heat exchangers.
Specification
- Standard: ASTM A213 / A312, ASME SA213 / SA312
- Form: Seamless pipe
- Size Range: Generally available from 1/8 inch to 24 inches (OD)
- Wall Thickness: Schedule 5 to Schedule 160, or as per custom requirements
- Length: Usually 6 meters, 12 meters, or cut to length
- Heat Treatment: Annealed condition for enhanced ductility and toughness
Key Features
- Excellent resistance to oxidation up to 1100°C (2000°F)
- High tensile strength and good creep resistance at elevated temperatures
- Superior corrosion resistance in mildly oxidizing environments
- Good formability and weldability
- Suitable for repeated thermal cycling without degradation
- Resistant to carburization and thermal shock
Chemical Composition
| Element |
Content (%) |
| Carbon (C) |
0.08 max |
| Chromium (Cr) |
23.0 – 25.0 |
| Nickel (Ni) |
12.0 – 15.0 |
| Manganese (Mn) |
1.00 max |
| Silicon (Si) |
1.00 max |
| Phosphorus (P) |
0.040 max |
| Sulfur (S) |
0.030 max |
| Copper (Cu) |
0.75 max |
| Nitrogen (N) |
0.10 max |
Mechanical Properties
| Property |
Value |
| Tensile Strength (MPa) |
515 min |
| Yield Strength (MPa) |
205 min |
| Elongation (%) |
40 min |
| Hardness (HRB) |
≤ 95 |
| Modulus of Elasticity |
~200 GPa |
Equivalent Grades
| Standard |
Equivalent Grade |
| ASTM |
AISI 309, 309S, 309H |
| EN |
1.4828 |
| GOST |
08H13N10 |
| JIS |
SUS309 |
| GB |
20Cr20Ni14C2 |
Application
20X20H14C2 AISI 309 stainless steel seamless pipes are primarily used in environments where high temperature resistance is critical. Typical applications include:
- High temperature containers and vessels
- Furnace and heat exchanger tubes
- Boiler components subjected to oxidizing environments
- Petrochemical and power generation industries
- Aerospace components exposed to elevated temperatures
- Automotive exhaust systems and catalytic converters
TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and
trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and
credibility among domestic and foreign customers.
The company's production plant covers an area of over 10,000 square meters, with an annual production
capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.
The group holds shares in more than ten domestic production entities, whose main products include
seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.
Over the past 30 years, the company has been gradually developing new technologies and materials to meet
the growing needs of customers and various diversified needs, exporting to more than 56 countries and still
increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
