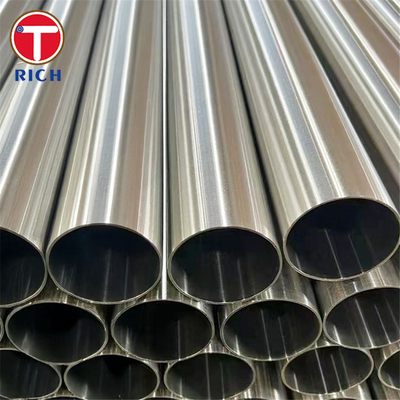

08X17H13M2T Round Stainless Steel Tube 316Ti Stainless Steel Pipe For High Temperature
Basic Properties
Place of Origin:
Zhejiang/China
Brand Name:
TORICH
Certification:
ISO9001 ISO 14001 TS16949
Model Number:
08X17H13M2T 316Ti
Trading Properties
Minimum Order Quantity:
1Ton
Price:
Negotiable
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
60000 Ton/Tons per Year
Product Summary
08X17H13M2T Round Stainless Steel Tube 316Ti Stainless Steel Pipe For High Temperature Material 08X17H13M2T is a Russian designation for a titanium-stabilized austenitic , equal to 316Ti grade. it's miles designed to be used in excessive-temperature environments in which corrosion resistance and ...
Product Details
Highlight:
316Ti Round Stainless Steel Tube
,08X17H13M2T Stainless Steel Pipe
,High Temperature Round Stainless Steel Tube
Certification:
ISO,SGS,Other,ROHS
Steel Grade:
300 Series,200 Series,400 Series,TP316,200/300 Series
Application:
High Temperature Service
Type:
Seamless And Welded,round
Welding Line Type:
ERW,Seamless,Spiral Welded,TIG
Standard:
GB,ASTM,DIN,AISI,JIS
Thickness:
0.5-100mm,
Outer Diameter:
6-760mm
Length:
1m-12m,6m Or As Customers' Request,30mm Or Custom,0-12m,2.5-8m
Product Name:
Stainless Steel Tubing,Fast Sell Square Stainless Steel Pipe Price Per Ton
Surface:
BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Material:
200 Series/300 Series/400series,200,202,AISI 201,400 Series
Shape:
Square,Round.square.Rectangle,
Finish:
Brush Polish,hairline,BA,mirror ETC,pickled
Technique:
Cold Rolled Hot Rolled,Cold Drawing
Grade:
201/202/304 /304L/316/316L321/310s/410/420/430/440/439ect,201,316L,202,304L 316 316L 310s 321 321H 347 347H
Name:
Seamless Stainless Steel Tubing,stainless Steel Telescopic Tube,Stainless Steel Circular Corrugated Water Pipe
Secondary Or Not:
Non-secondary
Usage:
For Fluid Transport
Process:
Hot-rolling
Test:
Extended Test, Water Pressure Test,
Processing Service:
Punching, Cutting
Sample:
Sample Freely
Specification:
Customized
Product Description
08X17H13M2T Round Stainless Steel Tube 316Ti Stainless Steel Pipe For High Temperature
Material
08X17H13M2T is a Russian designation for a titanium-stabilized austenitic , equal to 316Ti grade. it's miles designed to be used in excessive-temperature environments in which corrosion resistance and mechanical sturdiness are essential.
Specification
- Elegant: GOST 9941-80 one, ASTM A213, A312 / EN 1.4571 / JIS SUS 316Ti
Shape: spherical tube/pipe
Size: Outer diameter and wall thickness as in step with requirement, normally beginning from 6mm to 630mm diameter, with numerous wall thicknesses.
Duration: typically furnished in random or steady lengths in step with patron specifications
Floor Stop: Pickling, polished, or as requested
Key Features
- incredible corrosion resistance in oxidizing and mildly lowering atmospheres
immoderate resistance to intergranular corrosion due to titanium stabilization
nicely mechanical houses at improved temperatures (as much as 870°C)
robust resistance to pitting and crevice corrosion in chloride environments
applicable weldability and formability
lengthy issuer lifestyles in immoderate temperature and stress programs
Chemical Composition
| Element | C | Si | Mn | P | S | Cr | Ni | Mo | Ti | N | Fe |
|---|---|---|---|---|---|---|---|---|---|---|---|
| % | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | 5×C min to 0.70 | ≤0.10 | Balance |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength (σb) | ≥520 MPa |
| Yield Strength (σ0.2) | ≥210 MPa |
| Elongation (δ5) | ≥40% |
| Hardness (HB) | ≤200 |
| Impact Toughness (ISO-V) | ≥40 J (at room temperature) |
| Operating Temperature Range | Up to 870°C |
Equivalent Grades
| Country/Standard | Grade |
|---|---|
| ASTM | A182 F316Ti, A213 TP316Ti |
| EN | 1.4571 |
| GOST | 08X17H13M2T |
| JIS | SUS 316Ti |
| GB (China) | 0Cr17Ni12Mo2Ti |
Application
- warm temperature exchangers and boilers strolling beneath excessive temperatures
Chemical processing system uncovered to corrosive media
Furnace additives and excessive-temperature piping systems
Petrochemical corporation piping and system
Offshore structures and marine packages at risk of chloride-triggered corrosion
meals processing device in which corrosion resistance is critical
power plants and superheater tubes
This specialised 08X17H13M2T (316Ti) is exceedingly suitable for environments requiring sustained mechanical power and corrosion resistance at multiplied temperatures, making it a dependable choice for business programs disturbing sturdiness and safety.
TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and
trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and
credibility among domestic and foreign customers.
The company's production plant covers an area of over 10,000 square meters, with an annual production
capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.
The group holds shares in more than ten domestic production entities, whose main products include
seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.
Over the past 30 years, the company has been gradually developing new technologies and materials to meet
the growing needs of customers and various diversified needs, exporting to more than 56 countries and still
increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
