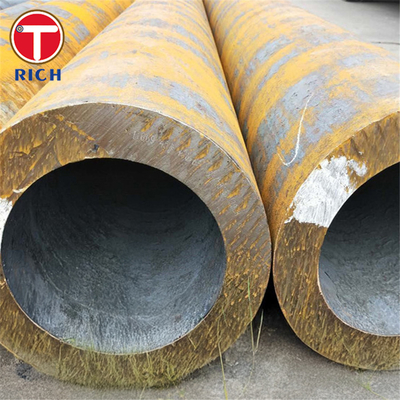

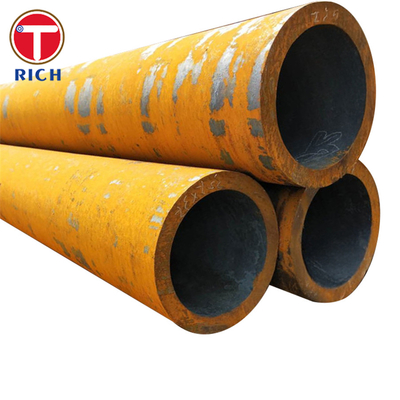

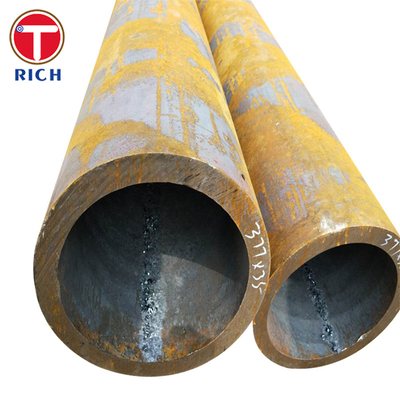

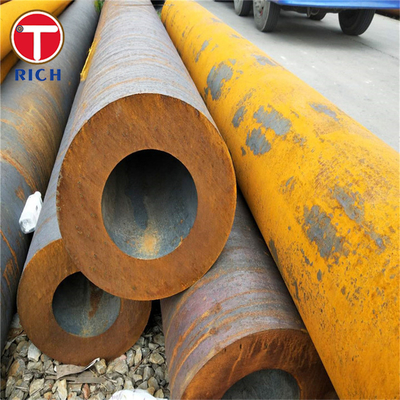

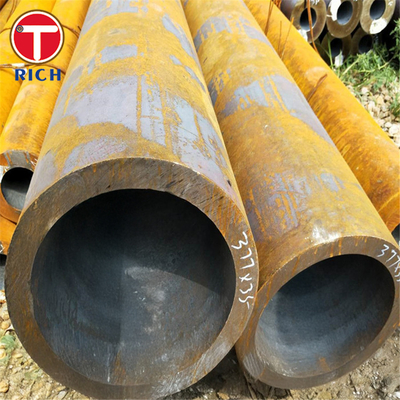

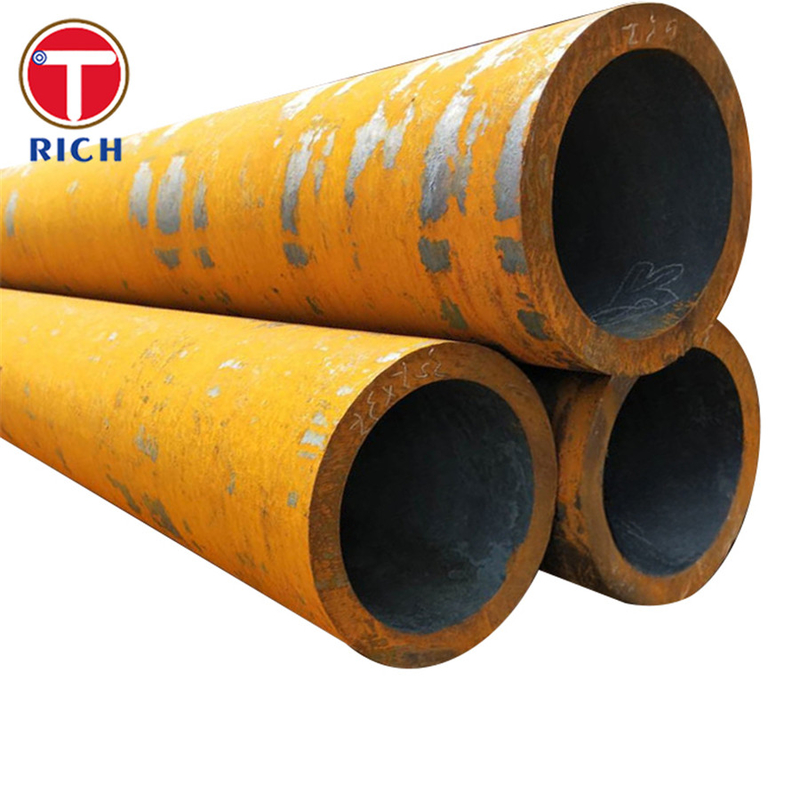

60Si2Mn Spring Steel Pipe Silicon Manganese Alloy Spring Steel Tube For Automobile
Product Details
60Si2Mn Spring Steel Pipe
,Automobile Spring Steel Pipe
,Silicon Manganese Alloy Spring Steel Tube
60Si2Mn Spring Steel Pipe: Silicon Manganese Alloy Spring Steel Tube for Automobile
Material
60Si2Mn is a high-quality silicon-manganese alloy spring steel known for its excellent mechanical properties and high strength. It is widely used in the manufacturing of spring components, especially in the automotive industry. This steel grade is characterized by its ability to withstand significant stress and strain, making it ideal for applications requiring durability and resilience.
Specification
60Si2Mn spring steel pipes are typically produced in accordance with specific industry standards to ensure quality and performance. These specifications include dimensions, tolerances, and surface finish requirements. The pipes are often available in various sizes and thicknesses to meet the diverse needs of different applications.
Key Features
- High Strength: Offers excellent tensile strength and fatigue resistance.
- Durability: Capable of withstanding repeated stress without deformation.
- Corrosion Resistance: Provides moderate resistance to corrosion, enhancing longevity.
- Versatility: Suitable for a wide range of applications, particularly in the automotive sector.
- Cost-Effective: Provides a balance of performance and affordability.
Chemical Composition
The chemical composition of 60Si2Mn spring steel is crucial for its performance characteristics. The table below outlines the typical composition:
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.56 - 0.64 |
| Silicon (Si) | 1.50 - 2.00 |
| Manganese (Mn) | 0.60 - 0.90 |
| Phosphorus (P) | ≤ 0.035 |
| Sulfur (S) | ≤ 0.035 |
Mechanical Properties
The mechanical properties of 60Si2Mn spring steel are essential for its application in demanding environments. The table below presents these properties:
| Property | Value |
|---|---|
| Tensile Strength | 1274 - 1471 MPa |
| Yield Strength | ≥ 1176 MPa |
| Elongation | ≥ 5% |
| Hardness | 42 - 48 HRC |
Similar Standards and Steel Grades
60Si2Mn spring steel is comparable to several international standards and steel grades. Below is a list of similar standards:
- ASTM: A29/A29M
- EN: 51CrV4
- GOST: 60S2
- JIS: SUP7
- GB: 60Si2Mn
Application
60Si2Mn spring steel pipes are predominantly used in the automotive industry for manufacturing various components such as:
- Suspension Springs: Essential for vehicle suspension systems to absorb shocks and maintain stability.
- Torsion Bars: Used in vehicle suspension to provide resistance to twisting forces.
- Valve Springs: Critical for engine performance, ensuring proper valve operation.
- Clutch Springs: Integral to the functioning of manual transmission systems.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
-
