ASTM B677 Incoloy 926 Tube UNS N08925, UNS N08354
UNS N08926 Nickel-Based Alloy Seamless Pipe
Introduction
Incoloy 926 is a high-performance nickel-based alloy known for its exceptional resistance to corrosion, particularly in harsh environments. This alloy is widely used in the chemical processing industry due to its ability to withstand aggressive chemicals and high temperatures. The ASTM B677 specification covers seamless pipes and tubes made from nickel-chromium-iron-molybdenum-copper alloys, including Incoloy 926.
Material Specification
- Standard: ASTM B677
- Alloy Designation: Incoloy 926
- UNS Numbers: N08925, N08354, N08926
- Form: Seamless Pipe and Tube
Key Features
- Corrosion Resistance: Excellent resistance to pitting, crevice corrosion, and stress-corrosion cracking.
- High Strength: Maintains strength at elevated temperatures.
- Versatility: Suitable for a wide range of applications in chemical processing, marine, and oil and gas industries.
- Durability: Long service life even in aggressive environments.
Chemical Composition
| Element |
Composition (%) |
| Nickel (Ni) |
24.0 - 26.0 |
| Chromium (Cr) |
19.0 - 21.0 |
| Molybdenum (Mo) |
6.0 - 7.0 |
| Copper (Cu) |
0.5 - 1.5 |
| Iron (Fe) |
Balance |
| Manganese (Mn) |
≤ 2.0 |
| Silicon (Si) |
≤ 0.5 |
| Carbon (C) |
≤ 0.02 |
| Phosphorus (P) |
≤ 0.03 |
| Sulfur (S) |
≤ 0.01 |
| Nitrogen (N) |
0.15 - 0.25 |
Mechanical Properties
| Property |
Value |
| Tensile Strength |
≥ 650 MPa |
| Yield Strength (0.2% Offset) |
≥ 295 MPa |
| Elongation |
≥ 35% |
| Hardness |
≤ 90 HRB |
Steel Grade
- Incoloy 926: Known for its enhanced resistance to corrosion and high mechanical strength.
Application
- Chemical Processing: Ideal for use in environments with sulfuric and phosphoric acids.
- Marine Engineering: Suitable for seawater applications due to its resistance to chloride-induced corrosion.
- Oil and Gas: Used in sour gas environments and for downhole tubing.
- Pollution Control: Employed in flue gas desulfurization systems.
Possible Alternative Grades
- Incoloy 825: Offers good corrosion resistance but with lower molybdenum content.
- Inconel 625: Known for its high strength and resistance to oxidation.
- Hastelloy C276: Provides excellent resistance to a wide range of corrosive environments.
TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and
trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and
credibility among domestic and foreign customers.

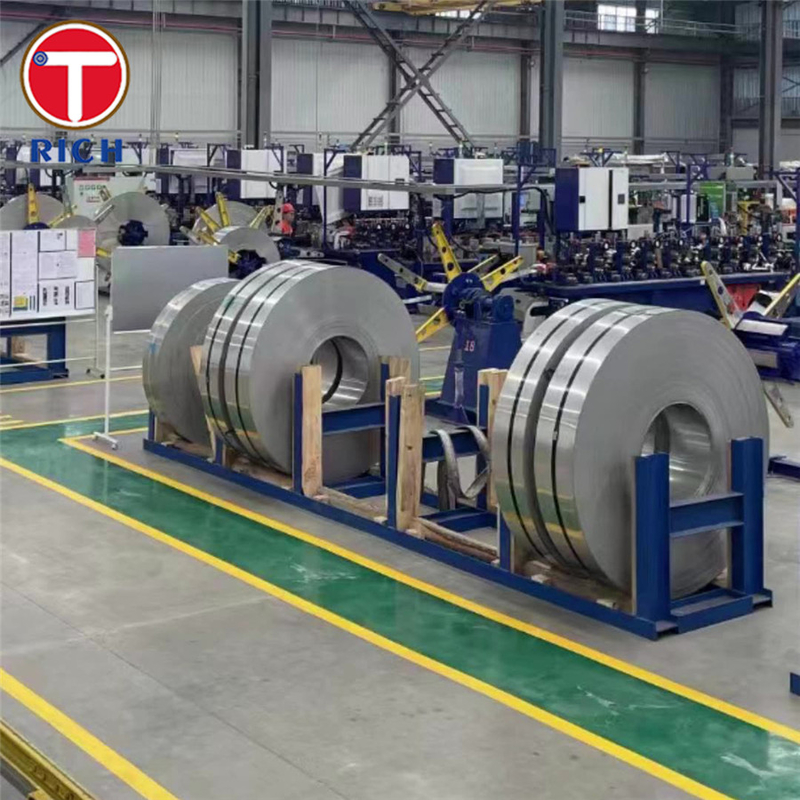

The company's production plant covers an area of over 10,000 square meters, with an annual production
