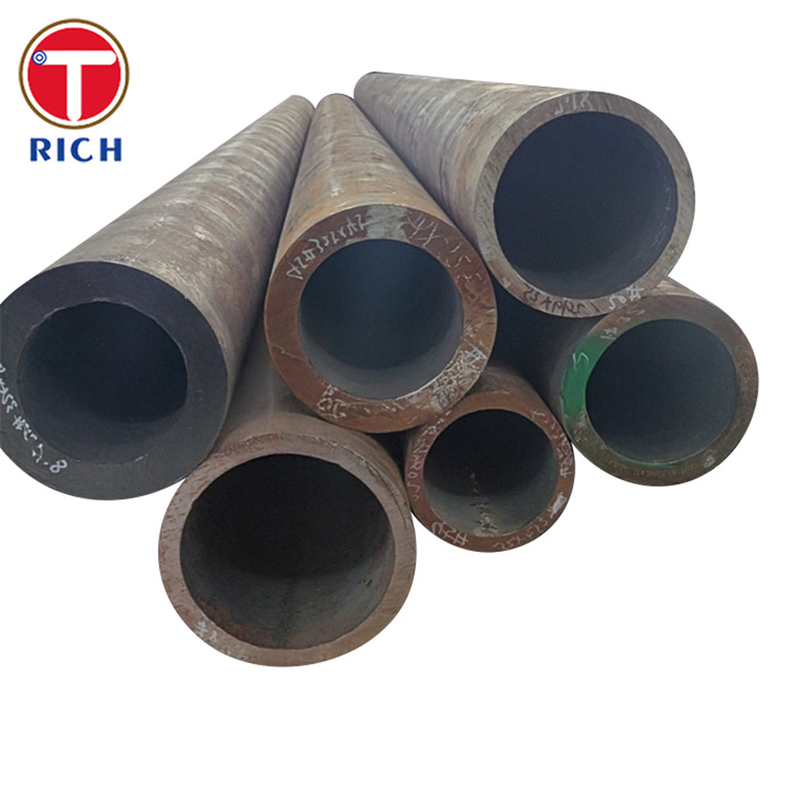

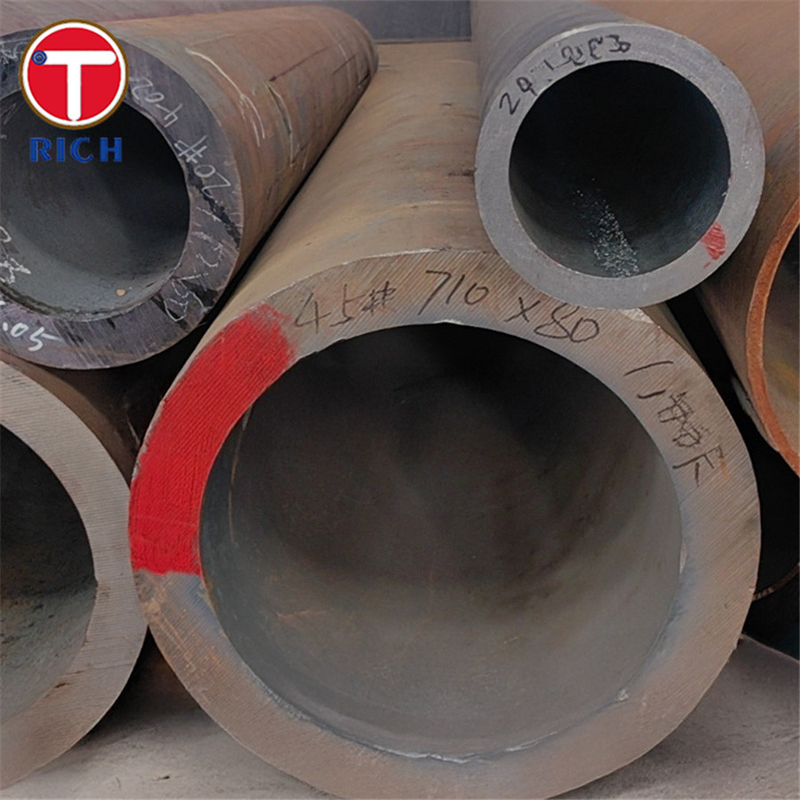

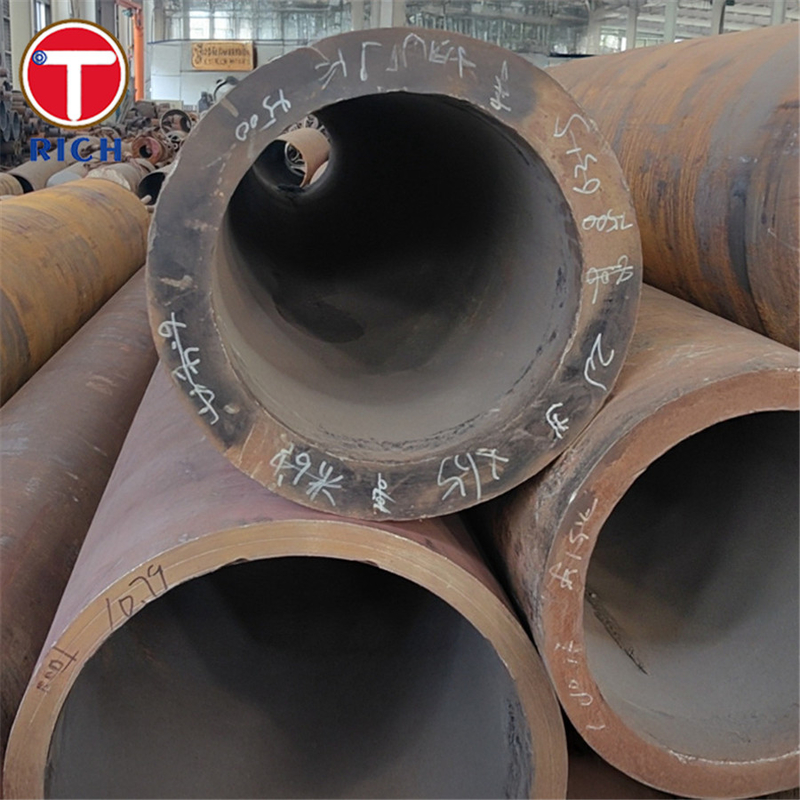

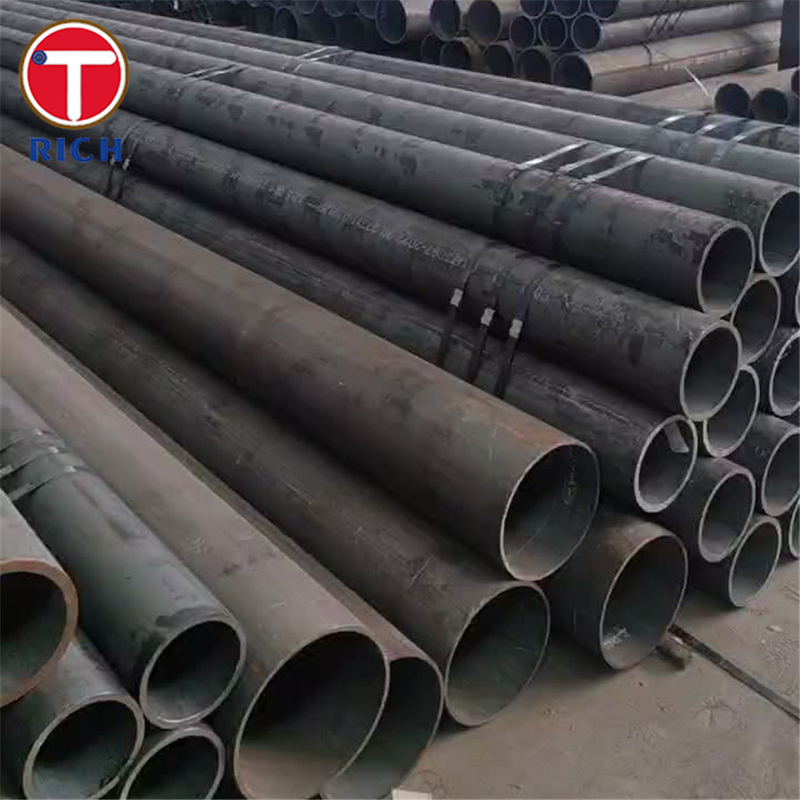

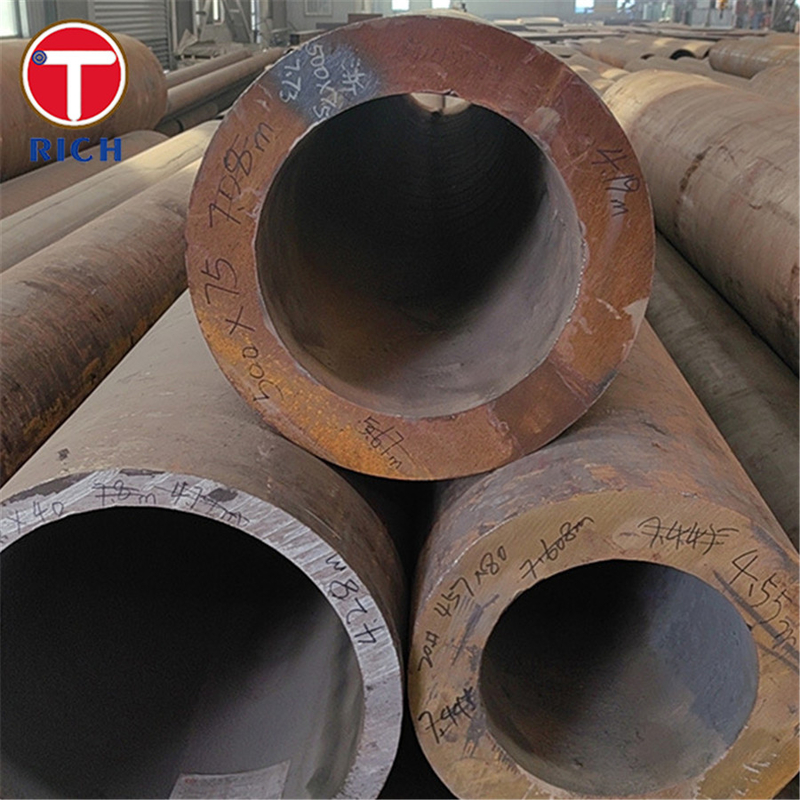

BS 3603 Grade 430 LT, Grade 503 LT, Grade 509 LT CFS Tube: Cold Finished Seamless Carbon Steel Tube for Pressure Purposes
Material Specification
BS 3603 is a British Standard specification that covers cold finished seamless carbon steel tubes designed for pressure purposes. These tubes are known for their high strength, durability, and ability to withstand high pressure, making them ideal for various industrial applications. The grades under this specification, such as Grade 430 LT, Grade 503 LT, and Grade 509 LT, offer specific mechanical and chemical properties tailored to meet different requirements.
Key Features
- High Strength: Designed to withstand high pressure and stress.
- Durability: Excellent resistance to wear and tear, ensuring a long service life.
- Versatility: Suitable for a wide range of applications in different industries.
- Precision: Cold finished for enhanced dimensional accuracy and surface finish.
Chemical Composition
The chemical composition of BS 3603 grades is crucial for determining their suitability for specific applications. Below is a table presenting the typical chemical composition for these grades:
| Element |
Grade 430 LT (%) |
Grade 503 LT (%) |
Grade 509 LT (%) |
| Carbon (C) |
0.16 max |
0.20 max |
0.22 max |
| Manganese (Mn) |
1.00 max |
1.30 max |
1.40 max |
| Silicon (Si) |
0.35 max |
0.35 max |
0.35 max |
| Phosphorus (P) |
0.040 max |
0.040 max |
0.040 max |
| Sulfur (S) |
0.040 max |
0.040 max |
0.040 max |
Mechanical Properties
The mechanical properties of these grades are designed to ensure performance under pressure. The table below outlines the typical mechanical properties:
| Property |
Grade 430 LT |
Grade 503 LT |
Grade 509 LT |
| Tensile Strength (MPa) |
430 min |
503 min |
509 min |
| Yield Strength (MPa) |
275 min |
355 min |
380 min |
| Elongation (%) |
20 min |
18 min |
16 min |
| Impact Energy (J) |
27 min |
27 min |
27 min |
Steel Grade
- Grade 430 LT: Known for its moderate strength and good ductility.
- Grade 503 LT: Offers higher strength, suitable for more demanding applications.
- Grade 509 LT: Provides the highest strength among the three, ideal for the most challenging environments.
Application
These tubes are primarily used in industries where high pressure and temperature conditions are prevalent, such as:
- Oil and gas pipelines
- Chemical processing plants
- Power generation facilities
- Hydraulic systems
Possible Alternative Grades
While BS 3603 provides excellent options for pressure applications, alternative grades may be considered depending on specific requirements:
- ASTM A106 Grade B: A widely used alternative for seamless carbon steel pipes.
- EN 10216-2 P265GH: Suitable for high-temperature applications.
- DIN 17175 St35.8: Commonly used in boiler and pressure vessel construction.
TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and
trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and
credibility among domestic and foreign customers.
The company's production plant covers an area of over 10,000 square meters, with an annual production
capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.
The group holds shares in more than ten domestic production entities, whose main products include
seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.
Over the past 30 years, the company has been gradually developing new technologies and materials to meet
the growing needs of customers and various diversified needs, exporting to more than 56 countries and still
increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
