EN10305-1 Hydraulic Cylinder Tube OD9.52 ID 7.52 WT 1mm Thick Wall Precision Steel Tube

Name: EN10305-1 Hydraulic Cylinder Tube OD9.52 ID 7.52 WT 1mm Thick Wall Precision Steel Tube
Brand: TORICH INTERNATIONAL LIMITED
SKU: En10305-1
Price: 15,000.30 USD
Availability: InStock

Brand Name:	TORICH
Model Number:	En10305-1
MOQ:	1 Ton
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	60000 Ton/Tons per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang/China

Certification:

ISO 9001 ISO14001 TS16949

Application:

Hydraulic Pipe

Standard:

ASTM,DIN,GB,JIS

Thickness:

1 - 200 Mm

Certification:

ISO,ISO9001-2008,ISO9001

Technique:

Cold Drawn,Hot Rolled,Cold Rolled,Hot Rolled/Cold Drawn

Surface Treatment:

Customerized

Grade:

E215 E235 E355

Alloy Or Not:

Non-alloy

Standard2:

EN10305-1

Section Shape:

Round,Rectangular

Outer Diameter(round):

3 - 80 Mm

Special Pipe:

Precision Seamless Pipe

Secondary Or Not:

Non-secondary

Length:

As Customer's Require

Product Name:

Steel Tubes,Cold Drawn Precision Round Carbon Steel Tube

Type:

Seamless

Material:

Steel

Packaging Details:

In bundles or in wooden boxes.

Supply Ability:

60000 Ton/Tons per Year

Highlight:

Thick Wall Hydraulic Cylinder Tube

Precision Steel Tube Hydraulic Cylinder Tube

EN10305-1 Hydraulic Cylinder Tube

Product Description

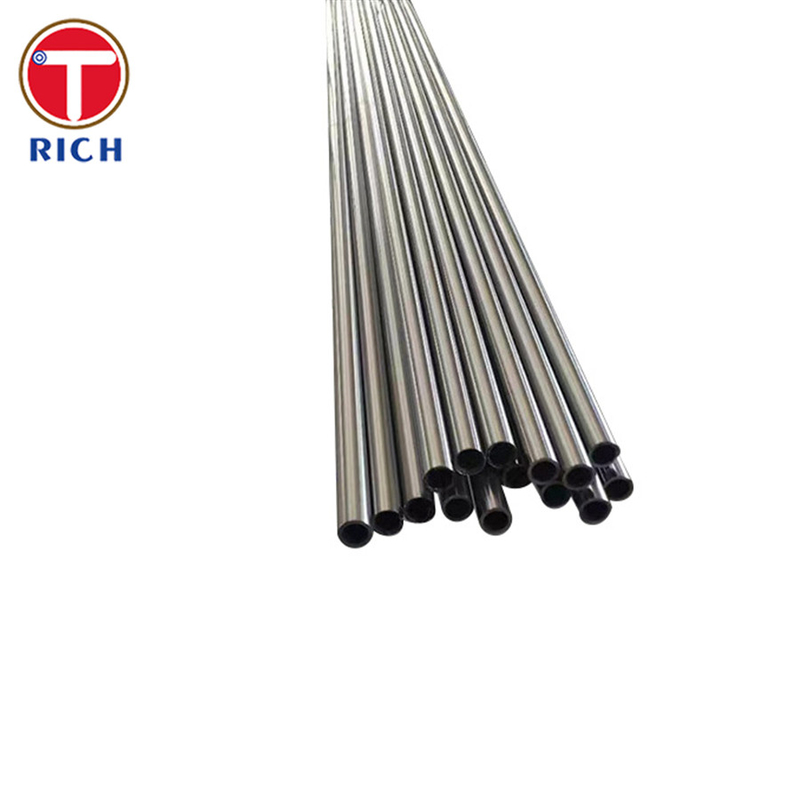

EN10305-1 Hydraulic Cylinder Tube OD9.52 ID 7.52 WT 1mm Thick Wall Precision Steel Tube 0

EN10305-1 E215 E235 E355 Hydraulic Cylinder Tube OD9.52 ID 7.52 WT 1mm Thick Wall Precision Steel Tube

Material

The EN10305-1 E215, E235, and E355 hydraulic cylinder tubes are made from high-quality precision steel, specifically designed for hydraulic applications. These tubes are characterized by their excellent mechanical properties and dimensional accuracy, making them suitable for various industrial uses.

Specification

Outer Diameter (OD): 9.52 mm
Inner Diameter (ID): 7.52 mm
Wall Thickness (WT): 1 mm
Standard: EN10305-1

Key Features

High Precision: Manufactured to tight tolerances for optimal performance.
Durability: Designed to withstand high pressure and stress.
Corrosion Resistance: Suitable for various environments, enhancing longevity.
Versatile Applications: Ideal for hydraulic systems and machinery.

Chemical Composition

Element	E215 (%)	E235 (%)	E355 (%)
Carbon (C)	0.12 max	0.17 max	0.22 max
Manganese (Mn)	0.60-0.90	0.60-0.90	0.60-0.90
Phosphorus (P)	0.025 max	0.025 max	0.025 max
Sulfur (S)	0.025 max	0.025 max	0.025 max
Silicon (Si)	0.10 max	0.10 max	0.10 max

Mechanical Properties

Property	E215	E235	E355
Yield Strength (MPa)	215	235	355
Tensile Strength (MPa)	360	370	470
Elongation (%)	25	25	20
Hardness (HB)	130	140	160

Steel Grade

E215: Suitable for low-pressure applications.
E235: Ideal for medium-pressure applications.
E355: Designed for high-pressure applications.

Application

These hydraulic cylinder tubes are widely used in:

Hydraulic machinery
Automotive applications
Construction equipment
Industrial machinery
Agricultural equipment

Possible Alternative Grades

S235JR: A general-purpose structural steel.
S355J2: A high-strength structural steel with good weldability.
ST52: A high-strength low-alloy steel suitable for various applications.

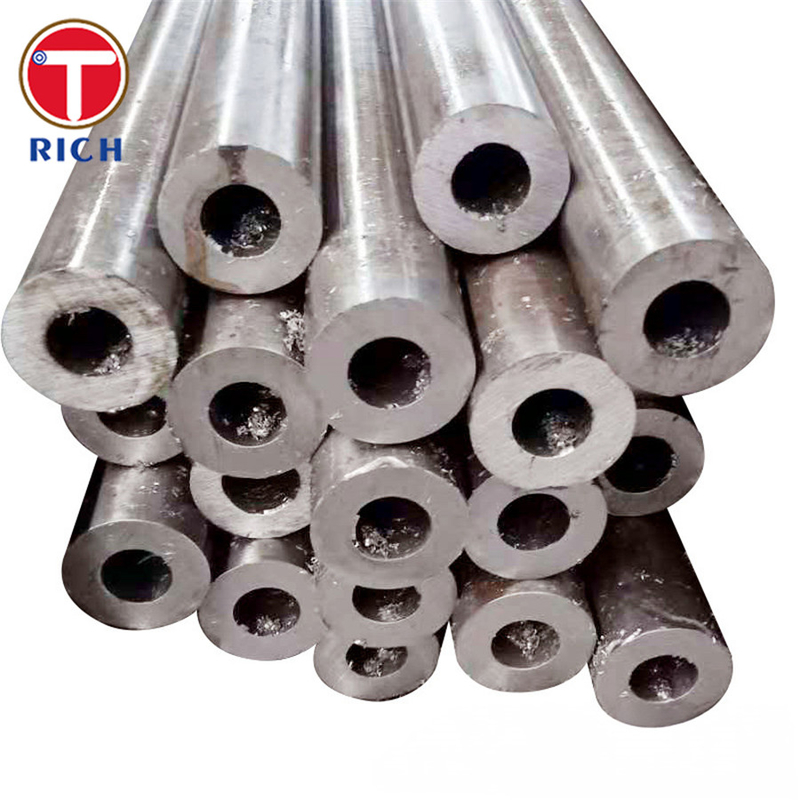

EN10305-1 Hydraulic Cylinder Tube OD9.52 ID 7.52 WT 1mm Thick Wall Precision Steel Tube 1

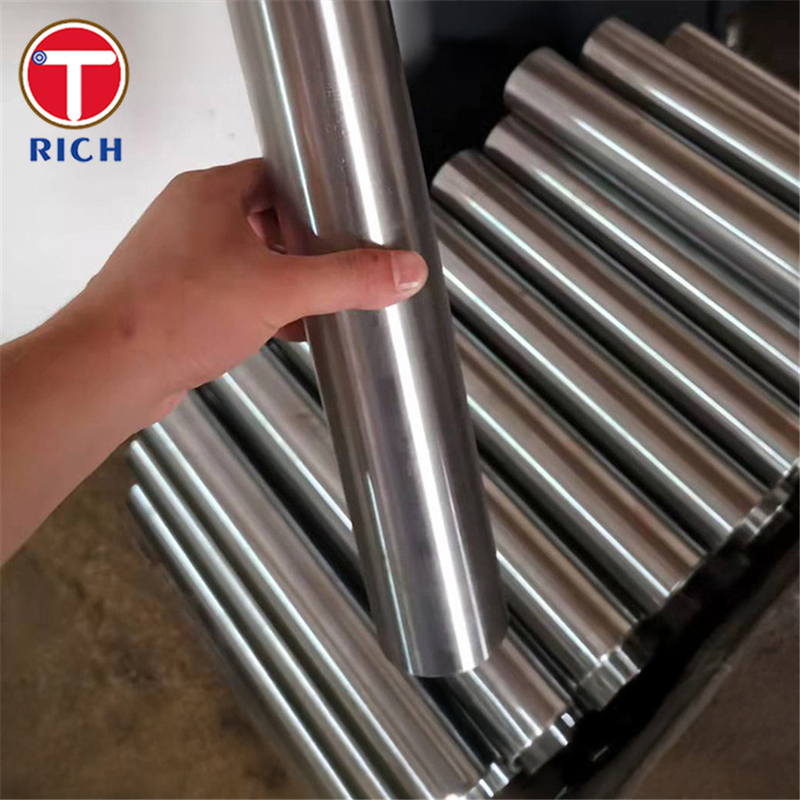

EN10305-1 Hydraulic Cylinder Tube OD9.52 ID 7.52 WT 1mm Thick Wall Precision Steel Tube 2

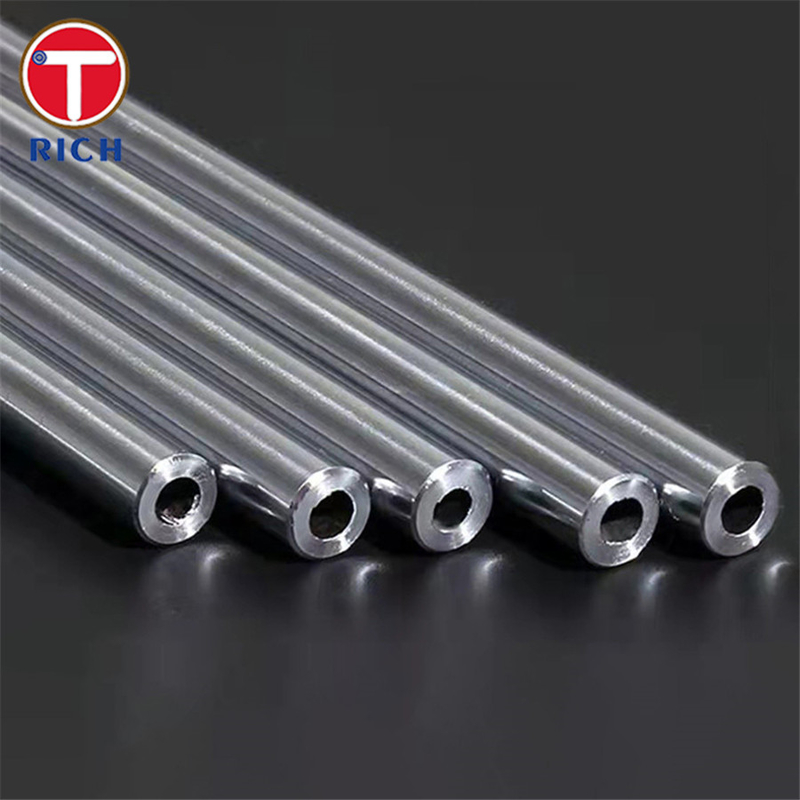

EN10305-1 Hydraulic Cylinder Tube OD9.52 ID 7.52 WT 1mm Thick Wall Precision Steel Tube 4

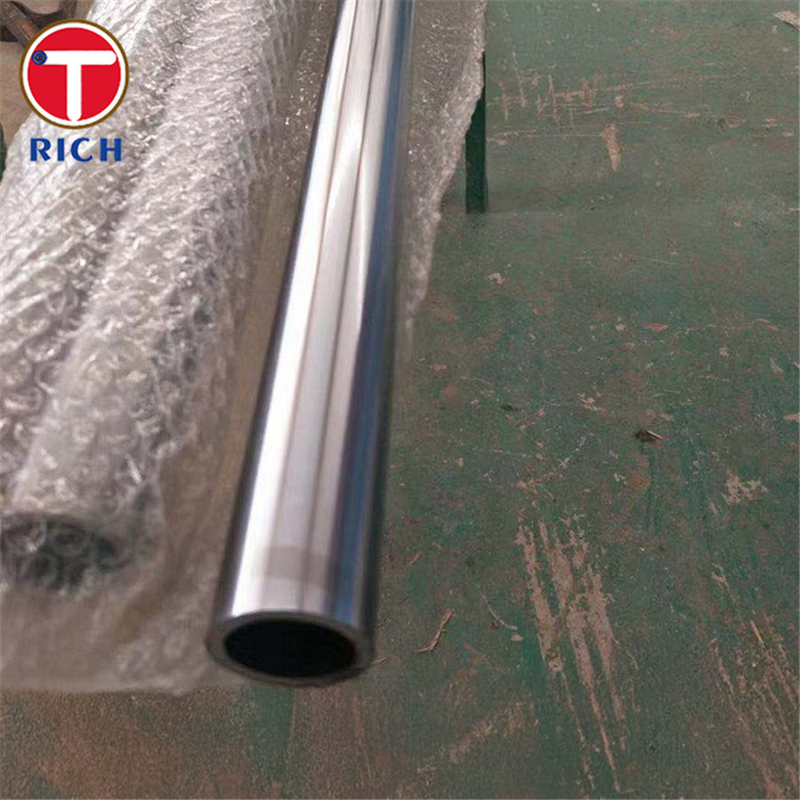

EN10305-1 Hydraulic Cylinder Tube OD9.52 ID 7.52 WT 1mm Thick Wall Precision Steel Tube 6

EN10305-1 Hydraulic Cylinder Tube OD9.52 ID 7.52 WT 1mm Thick Wall Precision Steel Tube 7

TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and

trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and

credibility among domestic and foreign customers.

The company's production plant covers an area of over 10,000 square meters, with an annual production

capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.

The group holds shares in more than ten domestic production entities, whose main products include

seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.

Over the past 30 years, the company has been gradually developing new technologies and materials to meet

the growing needs of customers and various diversified needs, exporting to more than 56 countries and still

increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.

EN10305-1 Hydraulic Cylinder Tube OD9.52 ID 7.52 WT 1mm Thick Wall Precision Steel Tube 8

EN10305-1 Hydraulic Cylinder Tube OD9.52 ID 7.52 WT 1mm Thick Wall Precision Steel Tube 9

EN10305-1 Hydraulic Cylinder Tube OD9.52 ID 7.52 WT 1mm Thick Wall Precision Steel Tube 10

EN10305-1 Hydraulic Cylinder Tube OD9.52 ID 7.52 WT 1mm Thick Wall Precision Steel Tube 11

EN10305-1 Hydraulic Cylinder Tube OD9.52 ID 7.52 WT 1mm Thick Wall Precision Steel Tube 12

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.

Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
