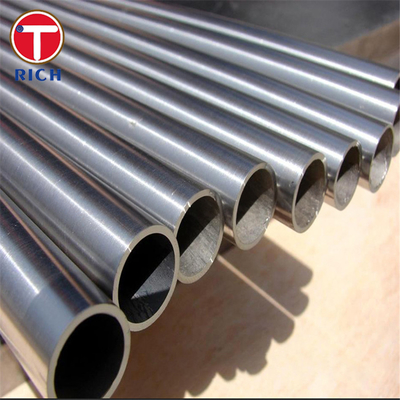

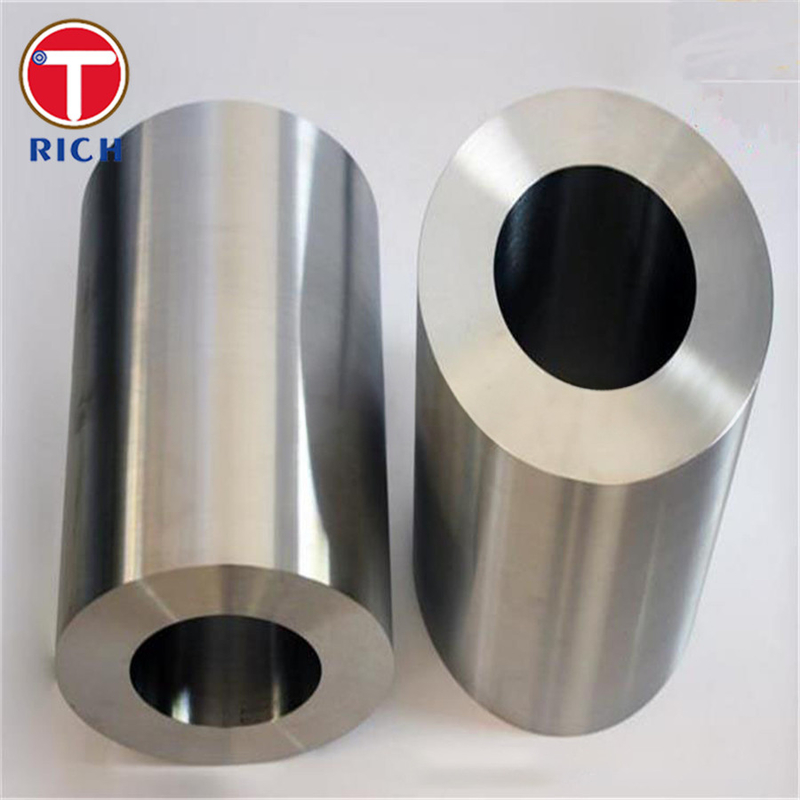

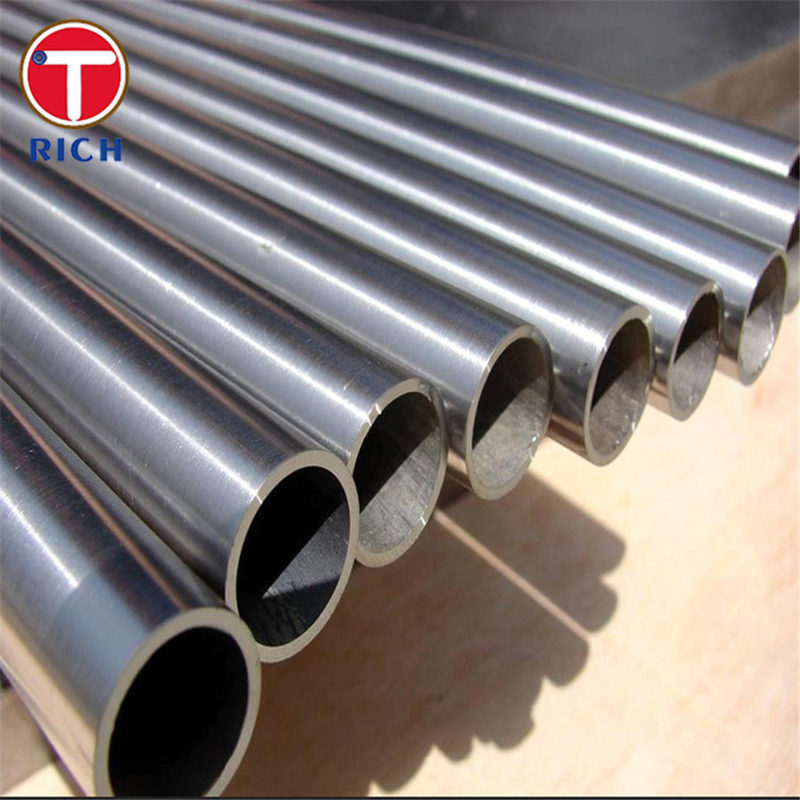

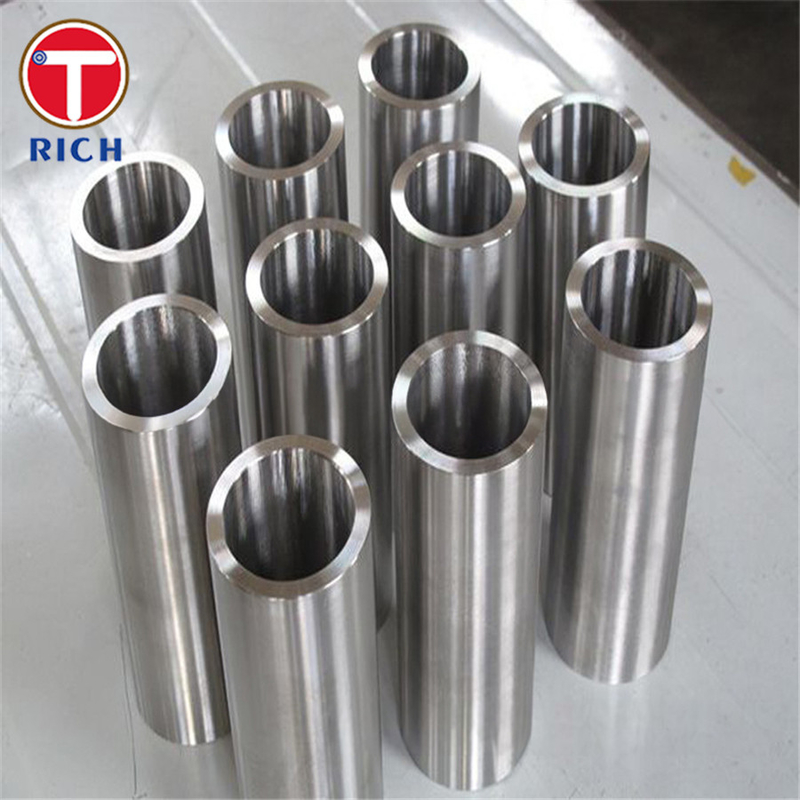

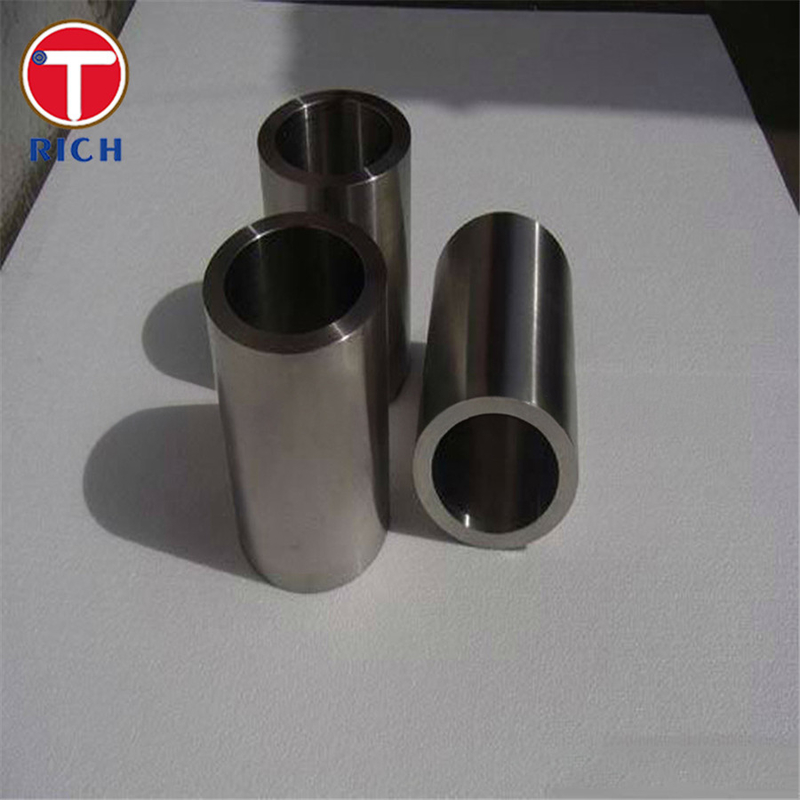

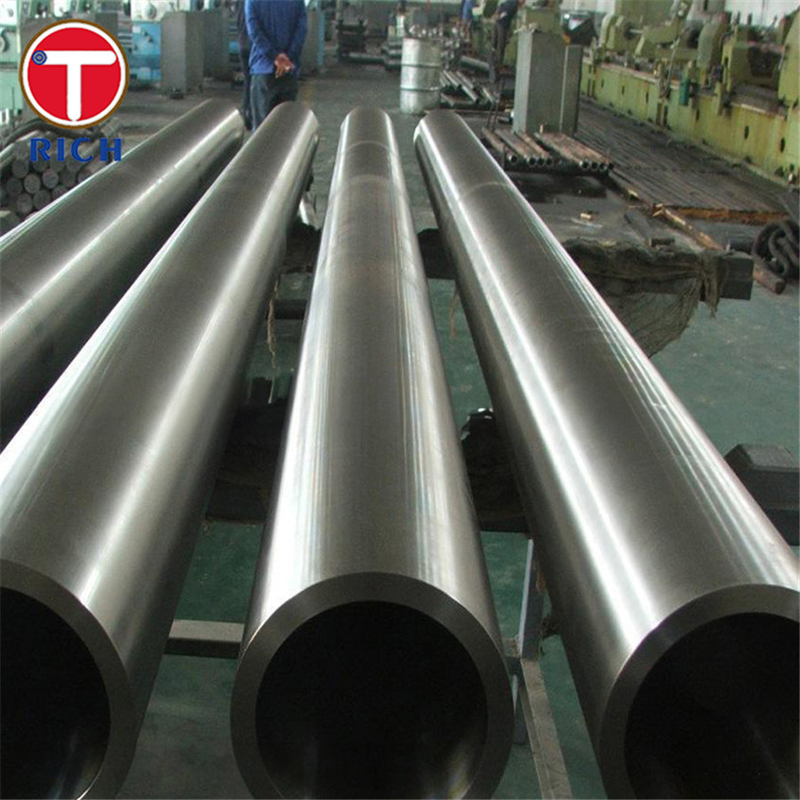

ASTM B338 Gr.1 Heat Exchanger Tubes Seamless Titanium Alloy Tubes For Condensers And Heat Exchangers
Product Details
Condensers Heat Exchanger Tubes
,Seamless Titanium Alloy Heat Exchanger Tubes
,ASTM B338 Heat Exchanger Tubes
ASTM B338 Gr.1, Gr.3, Gr.7, Gr.9, Gr.11 Heat Exchanger Tubes: Seamless Titanium Alloy Tubes For Condensers And Heat Exchangers
Introduction
Heat exchangers play a crucial role in various industries, facilitating the transfer of heat between two fluids while keeping them separate. To ensure efficient heat transfer and durability, the selection of suitable materials is of utmost importance. ASTM B338 Gr.1, Gr.3, Gr.7, Gr.9, and Gr.11 are seamless titanium alloy tubes that are widely used in the construction of heat exchangers and condensers. This article will provide an overview of these tubes, including their material, specifications, key features, chemical composition, mechanical properties, steel grade, applications, and possible alternative grades.
Material and Specification
The ASTM B338 specification covers seamless and welded titanium alloy tubes for condensers and heat exchangers. The tubes are available in various grades, including Gr.1, Gr.3, Gr.7, Gr.9, and Gr.11. These grades differ in terms of their chemical composition and mechanical properties, allowing for a wide range of applications.
Key Features
The key features of ASTM B338 Gr.1, Gr.3, Gr.7, Gr.9, and Gr.11 heat exchanger tubes are as follows:
- Corrosion Resistance: Titanium alloys exhibit excellent corrosion resistance, making them suitable for use in aggressive environments.
- High Strength-to-Weight Ratio: Titanium alloys offer exceptional strength while being lightweight, allowing for efficient heat transfer and reduced system weight.
- Thermal Stability: These tubes can withstand high temperatures without significant deformation or degradation.
- Low Thermal Expansion: Titanium alloys have a low coefficient of thermal expansion, minimizing the risk of thermal stress and enhancing the tubes' longevity.
- Excellent Heat Transfer Properties: The high thermal conductivity of titanium alloys ensures efficient heat transfer between fluids.
Chemical Composition
The chemical composition of ASTM B338 Gr.1, Gr.3, Gr.7, Gr.9, and Gr.11 heat exchanger tubes is presented in the following table:
| Grade | Chemical Composition (%) |
|---|---|
| Gr.1 | C ≤ 0.08, N ≤ 0.03, H ≤ 0.015, Fe ≤ 0.20, O ≤ 0.18, Ti balance |
| Gr.3 | C ≤ 0.08, N ≤ 0.05, H ≤ 0.015, Fe ≤ 0.30, O ≤ 0.35, Ti balance |
| Gr.7 | C ≤ 0.08, N ≤ 0.03, H ≤ 0.015, Fe ≤ 0.30, O ≤ 0.25, Ti balance |
| Gr.9 | C ≤ 0.08, N ≤ 0.03, H ≤ 0.015, Fe ≤ 0.25, O ≤ 0.15, Ti balance |
| Gr.11 | C ≤ 0.08, N ≤ 0.03, H ≤ 0.015, Fe ≤ 0.20, O ≤ 0.18, Ti balance |
Mechanical Properties
The mechanical properties of ASTM B338 Gr.1, Gr.3, Gr.7, Gr.9, and Gr.11 heat exchanger tubes are presented in the following table:
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| Gr.1 | ≥ 240 | ≥ 170 | ≥ 24 |
| Gr.3 | ≥ 450 | ≥ 380 | ≥ 18 |
| Gr.7 | ≥ 345 | ≥ 275 | ≥ 20 |
| Gr.9 | ≥ 620 | ≥ 483 | ≥ 15 |
| Gr.11 | ≥ 240 | ≥ 170 | ≥ 24 |
Steel Grade
The steel grade of ASTM B338 Gr.1, Gr.3, Gr.7, Gr.9, and Gr.11 heat exchanger tubes is titanium alloy. These tubes are primarily composed of titanium, with small amounts of other elements to enhance specific properties.
Application
ASTM B338 Gr.1, Gr.3, Gr.7, Gr.9, and Gr.11 heat exchanger tubes find applications in various industries, including:
- Chemical Processing: These tubes are used in heat exchangers for the processing of corrosive chemicals.
- Power Generation: They are employed in condensers and heat exchangers within power plants.
- Oil and Gas: These tubes are utilized in heat exchangers for oil refining and gas processing.
- Aerospace: They find applications in aircraft heat exchangers and other aerospace systems.
- Marine: These tubes are used in heat exchangers for seawater desalination and shipbuilding.
Possible Alternative Grades
While ASTM B338 Gr.1, Gr.3, Gr.7, Gr.9, and Gr.11 are widely used, there are alternative grades available for specific applications. Some possible alternative grades include ASTM B338 Gr.2, Gr.12, and Gr.16, which offer different combinations of properties to suit specific requirements.
In conclusion, ASTM B338 Gr.1, Gr.3, Gr.7, Gr.9, and Gr.11 heat exchanger tubes are seamless titanium alloy tubes that provide excellent corrosion resistance, high strength-to-weight ratio, thermal stability, and efficient heat transfer properties. These tubes find applications in various industries and offer a range of mechanical properties to meet specific needs.
Haiyan Sanxin Steel Pipe Factory is a leading manufacturer of steel pipes in China. Located in a region with excellent geographical advantages, the factory is situated close to the Zhoushan Port and Ningbo Port.
Our factory covers an area of more than 25,000 square meters and has been in the steel pipe manufacturing business for 20 years. Over this period, we have accumulated a wealth of professional experience, which has helped us establish ourselves as a trusted name in the industry.
At our factory, we specialize in the production of various types of steel pipes, including stainless steel pipe, carbon steel pipe, copper pipe, steel pipe,seamless steel pipe and welded pipe. Our expertise in this field is evident from the 12 patents that we hold, which demonstrate our commitment to innovation and excellence.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
-
