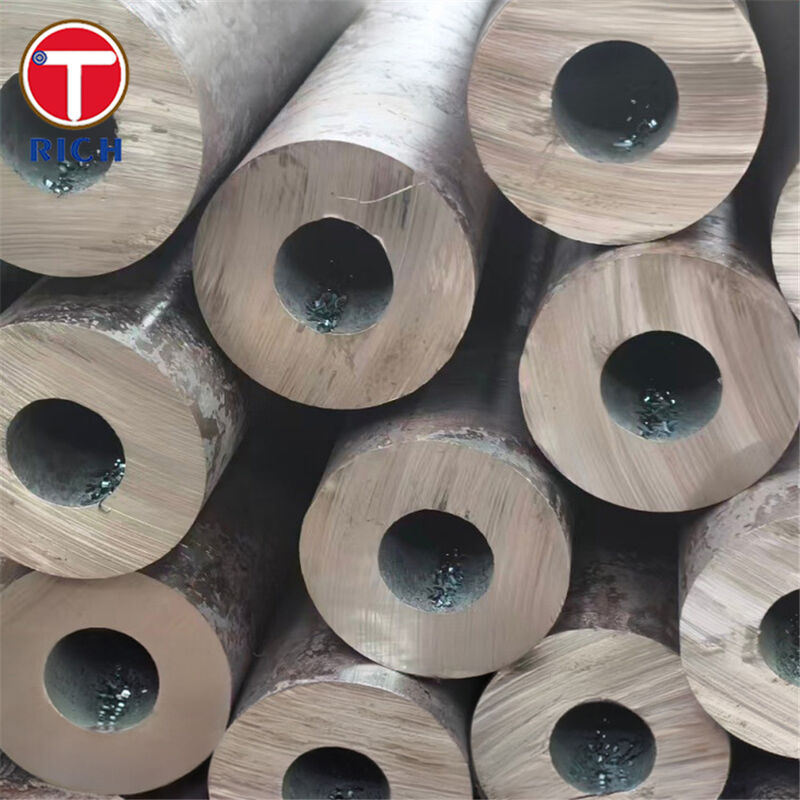

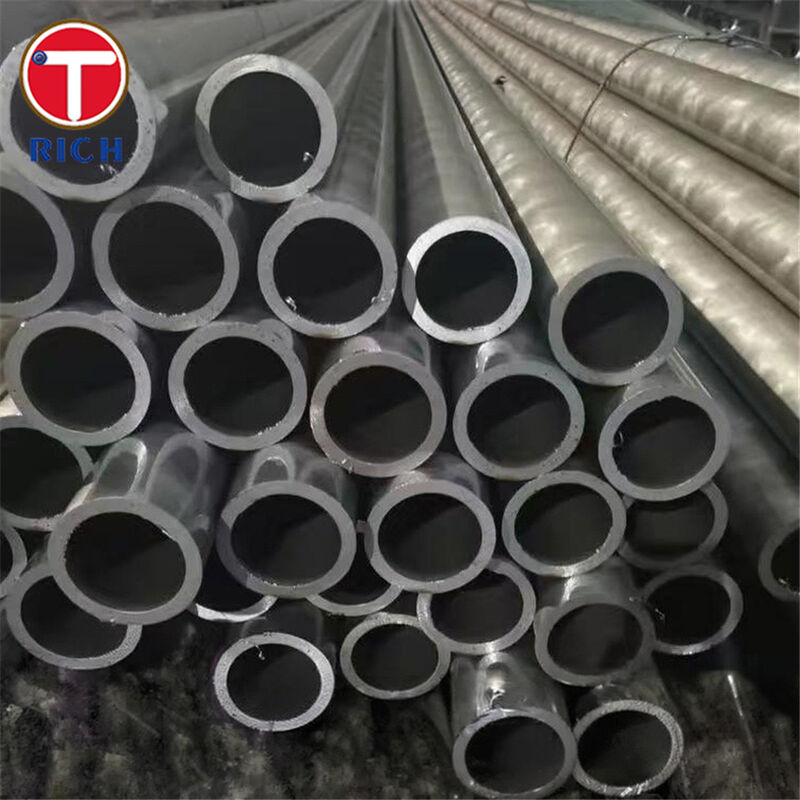

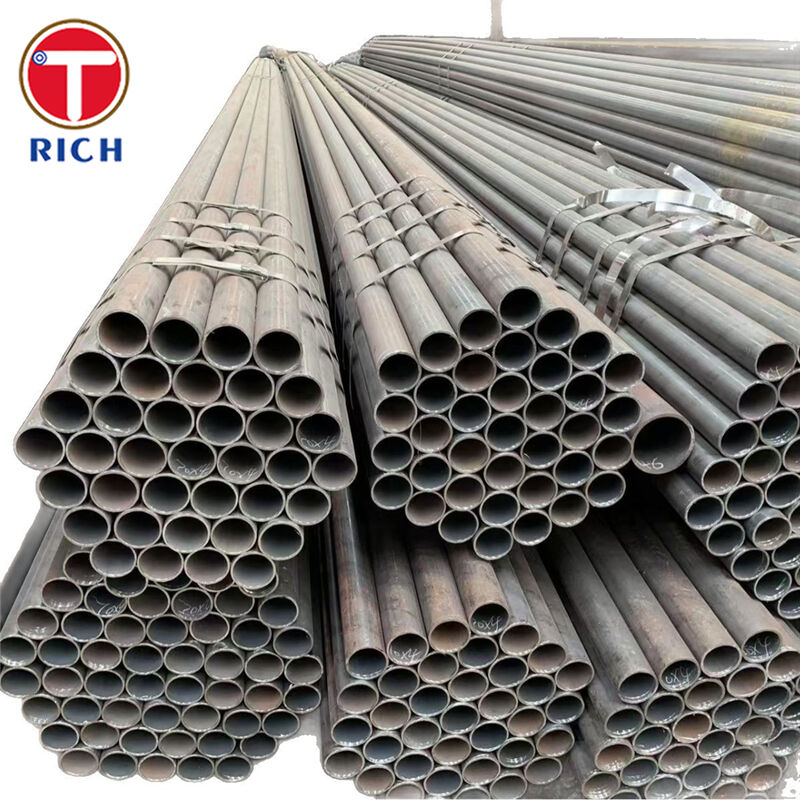

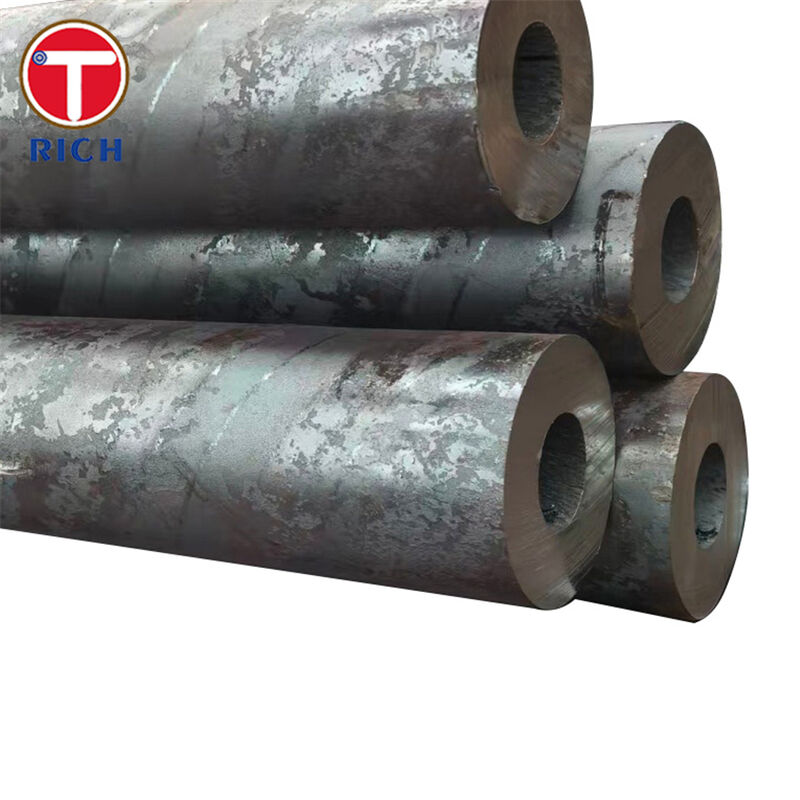

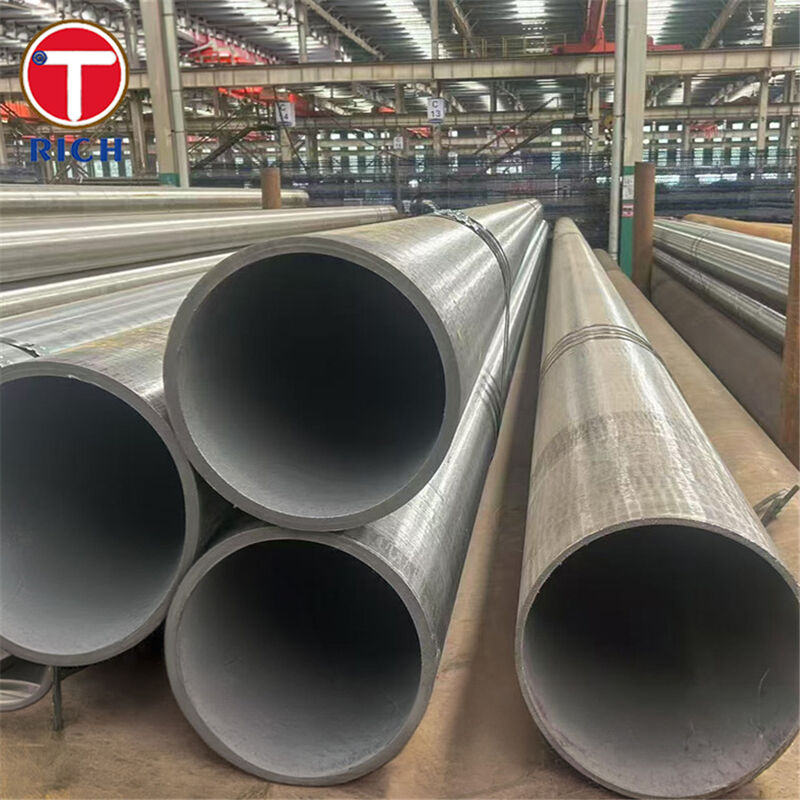

ASTM A213 Alloy Steel Seamless Pipe Large Diameter Thick-Wall Boiler Tube for Heat Exchangers
Product Details
Large Diameter Alloy Steel Seamless Pipe
,Thick-Wall Boiler Tube
,ASTM A213 Heat Exchanger Tube
ASTM A213 Alloy Steel Seamless Pipe (Tube) — Large Diameter, Thick-Wall for Boiler Service
Material
ASTM A213/A213M covers seamless ferritic and austenitic alloy-steel tubes intended for boilers, superheaters, and heat exchangers. Tubes are supplied as hot-finished or cold-finished, and can be specified with the heat-treatment condition required for high-temperature pressure parts. (Reference: ASTM A213/A213M)
Specifications
-
Manufacturing: Seamless; hot-finished or cold-finished (as specified). (Reference: ASTM A213/A213M)
-
Size capability (typical per standard scope): tubing commonly furnished from 1/8 in. ID to 5 in. OD with minimum wall 0.015–0.500 in.; other diameters may be supplied by agreement. (Reference: ASTM A213/A213M)
-
Testing options: Each tube is subject to hydrostatic test or nondestructive electric test; method is manufacturer’s option unless the PO specifies otherwise. (Reference: ASTM A213/A213M)
-
Marking: Includes hot-finished/cold-finished condition and wall designation (minimum wall or average wall). (Reference: ASTM A213/A213M)
-
Purchaser ordering checklist (recommended to avoid ambiguity): quantity, material name (seamless tubes), grade, condition, heat-treatment type, and any special requirements. (Reference: ASTM A213/A213M)
Key Features
-
High-temperature strength & creep resistance for boiler and superheater duties (Cr-Mo and higher-Cr families available).
-
Reliable pressure integrity from seamless manufacture and controlled heat treatment.
-
Fabrication-ready: suitable for expanding/beading, forging, welding, and bending when properly processed; Cr-bearing ferritic grades may require suitable post-heat treatment after hot work/welding. (Reference: ASTM A213/A213M)
Our Advantages
-
“Can you provide full traceability and a complete documentation package?”
Yes—deliveries are supported with CMTRs and a documentation set aligned with what major power/utility purchasers request (CMTRs, ISO certificate, inspection reports, wall thickness report, and NDT reports when applicable). (Reference: typical boiler-tubing purchaser QA requirements) -
“How do you control minimum wall thickness on thick-wall orders?”
We implement wall verification practices consistent with strict buyer QA expectations—sampling by lot/heat, multi-point end measurements, and reject/containment rules when readings fall below the minimum wall requirement. (Reference: typical boiler-tubing purchaser QA requirements) -
“Which NDT do I get—hydro or eddy-current—and can I mandate it?”
ASTM A213 allows hydrostatic or nondestructive electric testing on every tube; your PO can specify the required option. We can also support additional purchaser-requested examinations (e.g., eddy current sampling and reporting) commonly referenced in boiler-tubing QA programs. (Reference: ASTM A213/A213M)
Chemical Composition
| Grade | C | Mn | P (max) | S (max) | Si | Cr | Mo |
|---|---|---|---|---|---|---|---|
| T2 | 0.10–0.20 | 0.30–0.61 | 0.025 | 0.025* | 0.10–0.30 | 0.50–0.81 | 0.44–0.65 |
| T5 | 0.15 (max) | 0.30–0.60 | 0.025 | 0.025 | 0.50 (max) | 4.00–6.00 | 0.45–0.65 |
| T9 | 0.15 (max) | 0.30–0.60 | 0.025 | 0.025 | 0.25–1.00 | 8.00–10.00 | 0.90–1.10 |
| T12 | 0.05–0.15 | 0.30–0.61 | 0.025 | 0.025* | 0.50 (max) | 0.80–1.25 | 0.44–0.65 |
| T22 | 0.05–0.15 | 0.30–0.60 | 0.025 | 0.025 | 0.50 (max) | 1.90–2.60 | 0.87–1.13 |
Mechanical Properties
| Grade | Tensile Strength min | Yield Strength min | Elongation min | Hardness (max) |
|---|---|---|---|---|
| T2 | 60 ksi [415 MPa] | 30 ksi [205 MPa] | 30% | 163 HBW / 170 HV; 85 HRB |
| T5 | 60 ksi [415 MPa] | 30 ksi [205 MPa] | 30% | 163 HBW / 170 HV; 85 HRB |
| T9 | 60 ksi [415 MPa] | 30 ksi [205 MPa] | 30% | 179 HBW / 190 HV; 89 HRB |
| T12 | 60 ksi [415 MPa] | 32 ksi [220 MPa] | 30% | 163 HBW / 170 HV; 85 HRB |
| T22 | 60 ksi [415 MPa] | 30 ksi [205 MPa] | 30% | 163 HBW / 170 HV; 85 HRB |
Applicable Standards
-
ASTM / ASME: ASTM A213/A213M (ASME SA-213 for BPVC applications).
-
EN: EN 10216-2 (seamless tubes for pressure purposes, elevated-temperature alloy steels); EN 10216-5 (stainless tubes for pressure purposes).
-
GOST: GOST 8731 (technical requirements for seamless hot-finished tubes) + GOST 8732 (range of sizes for seamless hot-worked pipes) are commonly referenced for seamless tube/pipe supply.
-
JIS: JIS G 3462 (alloy steel tubes for boiler and heat exchanger service).
-
GB: GB/T 5310 (seamless steel tubes and pipes for high pressure boiler).
Application Fields
-
Power generation & industrial boilers: water-wall tubes, superheater/reheater tubes, economizer tubing, air-preheater tubing.
-
Petrochemical & refining heat transfer: heat exchanger and condenser tube bundles; process heat recovery.
-
High-temperature pressure parts: thick-wall alloy tubing used where elevated-temperature strength and oxidation resistance are required (grade selection depends on design temperature/pressure).
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
-
