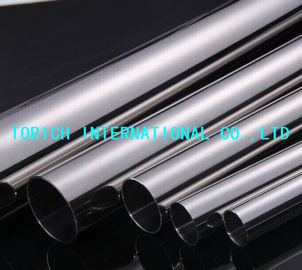

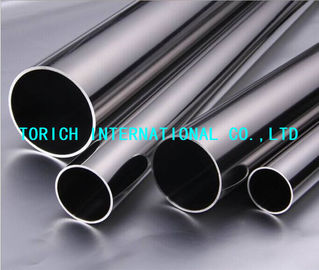

EN10216-5 Bright Annealed Seamless Stainless Steel Tubes For Pressure Purposes Technical Delivery Conditions
EN10216-5 Seamless Steel Tubes For Pressure Purposes Technical Delivery Conditions
Product Name: Seamless Steel Tubes
Application: Pressure Purposes Technical Delivery Conditions
Steel Grades- EN 10088-1
- austenitic steels ( corrosion resisting or creep resisting steels)
- austenitic-ferritic steels
Manufacturing process and delivery condition:
he tubes are manufactured by a seamless process, both hot finished or cold finished is applicable.
The "hot finished" and "cold finished" condition is left to the discretion of the manufacturer.
Delivery Conditions:
| Symbols | Types of delivery condition | Surface Condition |
| HFD | Hot finished heat treated, descaled | Metallically clean |
| CFD | Cold finished heat treated, descaled | Metallically clean |
| CFA | Cold finished bright annealed | Metallically bright |
| CFG | Cold finished heat treated, ground | Metallically bright-gound, the type and degree of roughness hsall be agreed at the time of enquiry and order |
| CFP | Cold finished heat treated, polished | Metallically bright-polished, the type and degree of roughness shall be agreed at the time of enquiry and order |
| a Combinations of the different conditions may be agreed at the time of enquiry and order
b The symbols are abbreviation for type of condition. Example: CDF = Cold Finished Descaled
c The enquiry and the order shall indicate whether the roughness requirement applies on the internal or external tube surface, or internal and external | ||
Table 1 Chemical Composition(cast analysis)a of Austenitic Corrosion Resisting Steels,in % By Mass(continued)
| Steel Grade | C max | Si | Mn | P max | S max | N | Cr | Cu | Mo | Nb | Ni | Ti | Others | ||
| Steel Name | Steel Number | ||||||||||||||
| X2CrNi18-9 | 1.4307 | 0.030 | ≤1.00 | ≤2.00 | 0.040 | 0.015b | ≤0.11 | 17.50 to 19.50 | - | - | - | 8.00 to 10.00c | - | - | |
| X2CrNi19-11 | 1.4306 | 0.030 | ≤1.00 | ≤2.00 | 0.040 | 0.015b | ≤0.11 | 18.00 to 20.00 | - | - | - | 10.00 to 12.00d | - | - | |
| X2CrNiN18-10 | 1.4311 | 0.030 | ≤1.00 | ≤2.00 | 0.040 | 0.015 | 0.12- 0.22 | 17.00 to 19.50 | - | - | - | 8.50 to 11.50 | - | - | |
| X5CrNi18-10 | 1.4301 | 0.07 | ≤1.00 | ≤2.00 | 0.040 | 0.015 b | ≤0.11 | 17.00 to 19.50 | - | - | - | 8.00 to 10.50 | - | - | |
| X6CrNiTi18 -10 | 1.4541 | 0.08 | ≤1.00 | ≤2.00 | 0.040 | 0.015 | - | 17.00 to 19.00 | - | - | - | 9.00 to 12.00d | 5xC to 0.70 | - | |
| X6CrNiNb18 -10 | 1.4550 | 0.08 | ≤1.00 | ≤2.00 | 0.040 | 0.015 | - | 17.00 to 19.00 | - | - | 10xC to 1.00 | 9.00 to 12.00d | - | - | |
| X1CrNi25-21 | 1.4335 | 0.020 | ≤0.25 | ≤2.00 | 0.025 | 0.010 | ≤0.11 | 24.00 to 26.00 | - | ≤0.20 | - | 20.00 to 22.00 | - | - | |
| X2CrNiMo17-12-2 | 1.4404 | 0.030 | ≤1.00 | ≤2.00 | 0.040 | 0.015 b | ≤0.11 | 16.50 to 18.50 | - | 2.00to 2.50 | - | 10.00 to 13.00e | - | - | |
| X5CrNiMo17-12-2 | 1.4401 | 0.07 | ≤1.00 | ≤2.00 | 0.040 | 0.015 b | ≤0.11 | 16.50 to 18.50 | - | 2.00to 2.50 | - | 10.00 to 13.00 | - | - | |
| X1CrNiMoN 25-22-2 | 1.4466 | 0.020 | ≤0.70 | ≤2.00 | 0.025 | 0.010 | 0.10to 0.16 | 24.00 to 26.00 | - | 2.00to 2.50 | - | 21.00 to 23.00 | - | - | |
| X6CrNiMoTi 17-12-2 | 1.4571 | 0.08 | ≤1.00 | ≤2.00 | 0.040 | 0.015 b | - | 16.50 to 18.50 | - | 2.00to 2.50 | - | 10.50 to 13.50c | 5xC to 0.70 | - | |
| X6CrNiMoNb 17-12-2 | 1.4580 | 0.08 | ≤1.00 | ≤2.00 | 0.040 | 0.015 | - | 16.50 to 18.50 | - | 2.00to 2.50 | 10xC- 1.00 | 10.50 to 13.50 | - | - | |
| X2CrNiMoN 17-13-3 | 1.4429 | 0.030 | ≤1.00 | ≤2.00 | 0.040 | 0.015 | 0.12to 0.22 | 16.50 to 18.50 | - | 2.00to 3.00 | - | 11.00 to 14.00d | - | - | |
| X3CrNiMo17 -13-3 | 1.4436 | 0.05 | ≤1.00 | ≤2.00 | 0.040 | 0.015 b | ≤0.11 | 16.50 to 18.50 | - | 2.00to 3.00 | - | 10.50 to 13.00d | - | - | |
| X2CrNiMo18-14-3 | 1.4435 | 0.030 | ≤1.00 | ≤2.00 | 0.040 | 0.015 b | ≤0.11 | 17.00 to 19.00 | - | 2.00to 3.00 | - | 12.50 to 15.00 | - | - | |
| X2CrNiMoN17 -13-5 | 1.4439 | 0.030 | ≤1.00 | ≤2.00 | 0.040 | 0.015 | 0.12to 0.22 | 16.50 to 18.50 | - | 4.00to 5.00 | - | 12.50 to 14.50 | - | - | |
| Steel Grade | C max | Si | Mn | P max | S max | N | Cr | Cu | Mo | Nb | Ni | Ti | Others | ||
| Steel name | Steel name | ||||||||||||||
| X1NiCrMoCu 31-27-4 | 1.4563 | 0.020 | ≤0.70 | ≤2.00 | 0.030 | 0.010 | ≤0.11 | 26.00 to 28.00 | 0.70 to 1.50 | 3.00 to 4.00 | - | 30.00 to 32.00 | - | - | |
| X1NiCrMoCu 25-20-5 | 1.4539 | 0.020 | ≤0.70 | ≤2.00 | 0.030 | 0.010 | ≤0.15 | 19.00 to 21.00 | 1.20 to 2.00 | 4.00 to 5.00 | - | 24.00 to 26.00 | - | - | |
| X1CrNiMoCuN 20-18-7 | 1.4547 | 0.020 | ≤0.70 | ≤1.00 | 0.030 | 0.010 | 0.18to 0.25 | 19.50 to 20.50 | 0.50 to 1.00 | 6.00 to 7.00 | - | 17.50 to 18.50 | - | - | |
| X1NiCrMoCuN 25-20-7 | 1.4529 | 0.020 | ≤0.50 | ≤1.00 | 0.030 | 0.010 | 0.15to 0.25 | 19.00 to 21.00 | 0.50 to 1.50 | 6.00 to 7.00 | - | 24.00 to 26.00 | - | - | |
| X2NiCrAlTi32-20 | 1.4558 | 0.030 | ≤0.70 | ≤1.00 | 0.020 | 0.015 | - | 20.00 to 23.00 | - | - | - | 32.00 to 35.00 | 8x(C+N) to0.60 | Al:0.15 To0.45 | |
Option3:A sulphur content of 0.015% to 0.030% is specified.
| |||||||||||||||
Table 2 Chemical Composition(cast analysis)a of Austenitic Creep Resisting Steels,in % By Mass
| Steel Grade | C max | Si | Mn | P max | S max | N | Cr | Cu | Mo | Nb | Ni | Ti | Others | |
| Steel name | Steel name | |||||||||||||
| X6CrNi18-10 | 1.4948 | 0.04 to 0.08 | ≤1.00 | ≤2.00 | 0.035 | 0.015 | ≤0.11 | 17.00 to 19.00 | - | - | - | 8.00 to 11.00 | - | - |
| X7CrNiTi18-10 | 1.4940 | 0.04 to 0.08 | ≤1.00 | ≤2.00 | 0.040 | 0.015 | ≤0.11 | 17.00 to 19.00 | - | - | - | 9.00 to 13.00 | 5x(C+N) To 0.80 |
|
| X7CrNiNb18-10 | 1.4912 | 0.04 to 0.10 | ≤1.00 | ≤2.00 | 0.040 | 0.015 | ≤0.11 | 17.00 to 19.00 | - | - | 10xC to 1.20 | 9.00 to 12.00 |
|
|
| X6CrNiTiB18-10 | 1.4941 | 0.04 to 0.08 | ≤1.00 | ≤2.00 | 0.035 | 0.015 | - | 17.00 to 19.00 | - | - | - | 9.00 to 12.00 | 5xCTo 0.80 | B:0.0015 to 0.0050 |
| X6CrNiMo17-13-2 | 1.4918 | 0.04 to 0.08 | ≤0.75 | ≤2.00 | 0.035 | 0.015 | ≤0.11 | 16.00 to 18.00 | - | 2.00 to 2.50 |
| 12.00 to 14.00 | - |
|
| X5NiCrAlTi31-20(+RA)b | 1.4958 (+RA) | 0.03 to 0.08 | ≤0.70 | ≤1.50 | 0.015 | 0.010 | - | 19.00 to 22.00 | ≤0.50 | - | ≤0.10 | 30.00 to 32.50 | 0.20to 0.50 | Al:0.20 to0.50 Al+Ti: ≤0.70 Co: ≤0.5 Ni+Co =30.0 to32.5 |
| X8NiCrAlTi32-21 | 1.4959 | 0.05 to 0.10 | ≤0.70 | ≤1.50 | 0.015 | 0.010 | - | 19.00 to 22.00 | ≤0.50 | - | - | 30.00 to 34.00 | 0.25to 0.65 |
|
| X3CrNiMoBN17-13-3 | 1.4910 | ≤0.04 | ≤0.75 | ≤2.00 | 0.035 | 0.015 | 0.10 to 0.18 | 16.00 to 18.00 | - | 2.00 to 3.00 | - | 12.00 to 14.00 | - |
|
| X8CrNiNb16-13 | 1.4961 | 0.04 to 0.10 | 0.30 to 0.60 | ≤1.50 | 0.035 | 0.015 | - | 15.00 to 17.00 | - | - | 10xC to 1.20 | 12.00 to 14.00 | - |
|
| X8CrNiMoVNb16-13 | 1.4988 | 0.04to 0.10 | 0.30 to 0.60 | ≤1.50 | 0.035 | 0.015 | 0.06 to 0.14 | 15.50 to 17.50 | - | 1.10 to 1.50 | 10xC to 1.20 | 12.50 to 14.50 | - |
|
| X8CrNiMoNb16-16 | 1.4981 | 0.04 to 0.10 | 0.30 to 0.60 | ≤1.50 | 0.035 | 0.015 | - | 15.50 to 17.50 | - | 1.60 to 2.00 | 10xC to 1.20c | 15.50 to 17.50 | - |
|
| X10CrNiMoMn NbVB15-10-1 | 1.4982 | 0.06 to 0.15 | 0.20 to 1.00 | 5.50 to 7.00 | 0.035 | 0.015 | - | 14.00 to 16.00 | - | 0.80 to 1.20 | 0.75 to 1.25 | 9.00 to 11.00 | - |
|
| ||||||||||||||
Table 3 Chemical Composition (cast analysis)a of Austenitic-ferritic Steels,in % by mass
| Steel Grade | C max | Si | Mn | P max | S max | N | Cr | Cu | Mo | Ni | Others | |
| Steel Name | Steel Number | |||||||||||
| X2CrNiMoN22-5-3 | 1.4462 | 0.030 | ≤1.00 | ≤2.00 | 0.035 | 0.015 | 0.10to 0.22 | 21.00 to23.00 | - | 2.50 to3.50 | 4.50 to6.50 |
|
| X2CrNiMoSi18-5-3 | 1.4424 | 0.030 | 140to 2.00 | 1.20to 2.00 | 0.035 | 0.015 | 0.05to 0.10 | 18.00 to19.00 | - | 2.50 to3.00 | 4.50 to5.20 |
|
| X2CrNiN23-4b | 1.4362 | 0.030 | ≤1.00 | ≤2.00 | 0.035 | 0.015 | 0.05to 0.20 | 22.00 to24.00 | 0.10to0.60 | 0.10 to0.60 | 3.50 to5.50 |
|
| X2CrNiMoN25-7-4 b | 1.4410 | 0.030 | ≤1.00 | ≤2.00 | 0.035 | 0.015 | 0.20to 0.35 | 24.00 to26.00 | - | 3.00 to4.50 | 6.00 to8.00 |
|
| X2CrNiMoCuN25-6-3 | 1.4507 | 0.030 | ≤0.70 | ≤2.00 | 0.035 | 0.015 | 0.15to 0.30 | 24.00 to26.00 | 1.00to2.50 | 2.70 to4.00 | 5.50 to7.50 |
|
| X2CrNiMoCuWN25-7-4 | 1.4501 | 0.030 | ≤1.00 | ≤1.00 | 0.035 | 0.015 | 0.20to 0.30 | 24.00 to26.00 | 0.50to1.00 | 3.00 to4.00 | 6.00 to8.00 | W:0.50 to1.00 |
| ||||||||||||
Normative references:
EN10002-1, Metallic materials - Tensile Testing - Part 1: Method of test at ambient temperature
EN10002-5, Metallic materials - Tensile Testing - Part 5: Method of test at elevated temperature
EN10020:2000, Definition and classification of grades of steel
EN10021:1993 General technical delivery requirements for steel and iron products
EN10027-1, Designation systems for steel - Part 1 : Steel names, principal symbols
EN10027-2, Designation systems for steel - Part 2: Numerical systems
EN10028-2, Flat products made of steels for pressure purposes - Part 7: Stainless steels
EN10045, Metallic materials - Charpy impact test - Part 1: Test mothod
EN10052, Vocabulary of heat treatment terms for ferrous products.
EN10088-1, Stainless steels - Part 1: List of stainless steels
EN10204, Metallic products - Types of inspection documents
EN10233, Metallic materials - Tube - Flattening Test
EN10234, Metallic materials - Tube - Drift expanding test
EN10236, Metallic materials - Tube - Ring expanding test
EN10236 Metallic materials - Tube - Ring tensile test
EN10246-2, Non-destructive testing of steel tubes - Part 2: Automatic eddy current testing of seamless and welded ( execpt submerged arc-welded) austenitic and ferritic-austenitic steel tubes for verification of hydraulic leak-tightness
EN10246-6, Non-destructive testing of steel tubes - Part 6: Automatic full peripheral ultrasonic testing of seamless and welded (except submerged arc-welded) steel tubes for detection of transverse imperfections
EN10246-7, Non-destructive testing of steel tubes - Part 7: Automatic full peripheral ultrasonic testing of seamless and welded (except submerged arc-welded) steel tubes for detection of longitudinal imperfections
EN10246-17, Non-destructive testing of steel tubes - Part 17: Ultrasonic testing of tube ends of seamless and welded for detection of laminar imperfections.
EN10256, Non-destructive testing of steel tubes - Qualification and competence of level 1 and level 2 non-destructive testing personnel
EN10168, Steel productsb - Inspection documents - List of information and description
EN10266:2003, Steel tubes, fittings and structrual hollow sections - Symbols and definitions of terms for use in product stanards
EN ISO377, Steel and Steel products - Location and preparetion of samples and test pieces for mechanical testing (ISO 377:1997)
EN ISO 2566-1, Steel - Conversion of elongation values - Part 1: Carbon and Low alloy steels (EN102566-1:1984)
EN ISO 643, Steels Micrographic determination of apparent grain size ( IOS643:2000)
EN ISO 1127, Stainless steel tubes - Dimension, tolerances and conventional masses per unite length ( ISO 1127:1992)
EN10266-2, Steel - Conversion of elongation values - Part 2: Austenitic steels ( ISO 2566-2:1984)
EN ISO 3651-2, Determination of resistance to intergranular corrosion of stainless steels - Part 2: Ferritic, austenitic and ferritic-austenitic (duplex) stainless steels - Corrosion test in media containing sulfric acid (ISO 3651.2:1984)
EN ISO 14284, Steel and iron - Sampling and preparation of samples for the determination of the chemical compostion (ISO 14284:1996)
CR 10260, Designation systems for steel - Additional symbols
CR 10261, ECISS Information Circular 11- Iron and steel - Review of available methods of chemical analysis
-
