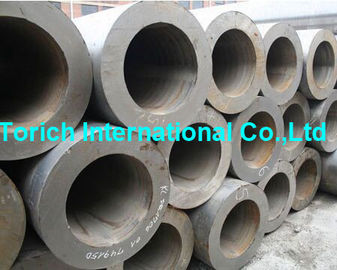

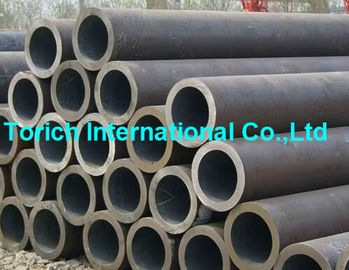

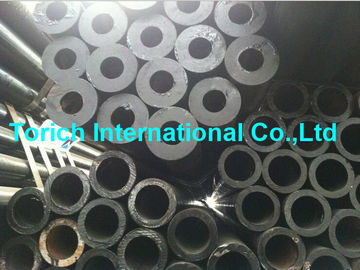

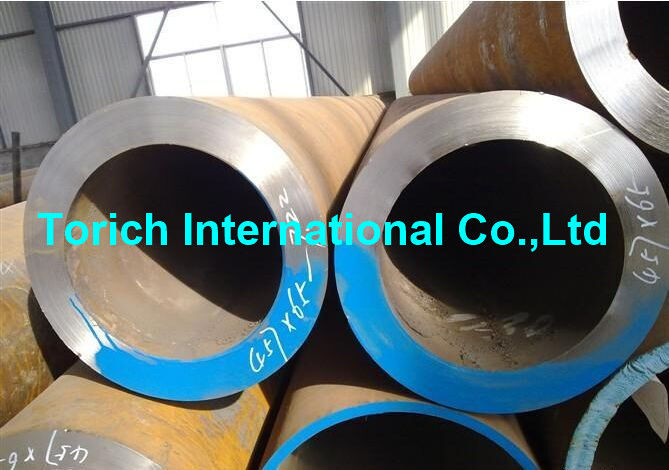

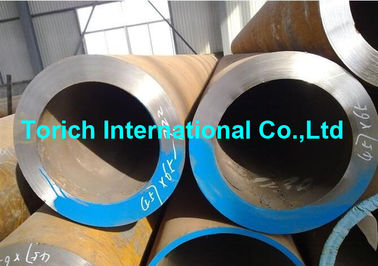

DIN EN 10210-1 Hot Finished Heavy Wall Steel Tubing Thick Wall Steel Pipe For Manufacturing Pipelines
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 5MT | Price : | USD600-900 per ton |
---|---|---|---|
Packaging Details : | Anti rust protection, in bundles with seaworthy packing | Delivery Time : | 30~40days |
Supply Ability : | 6000MT/Month |
Place of Origin: | China | Brand Name: | Torich |
---|---|---|---|
Certification: | GB/T 19001-2008 , ISO 9001:2008 , TS16949 | Model Number: | EN10297-1 |
Detail Information |
|||
Dimension:: | 6-420mm*1-30mm*12000mm | Application:: | For Seamless Circular Tubes Made Of Non-alloy And Alloy Steels For Mechanical And Gneral Engineering Purposes. |
---|---|---|---|
Steel Grade:: | E235 , E275 , E315 , E355b , E470 , C22E | Section Shape:: | Round |
High Light: | thick wall steel pipe,thick wall steel tube |
Product Description
Standard:EN10297-1 Seamless circular steel tubes for mechanical and general engineering purposes
- Technical delivery conditions Non-alloy and alloy steel tubes
Application: for seamless circular tubes made of non-alloy and alloy steels for mechanical and gneral engineering purposes.
Size range: O.D.: 6-168mm W.T.: 1-30mm L:max12000mm
Material: Fine Grain Steel
E235, E275, E315, E355, E470
C15, C22, 38Mn6, 41Cr4,
25CrMo4, 30CrMo4, 34CrMo4, 42CrMo4
Delivery condition:
Normalizin rolling process or normalized by heat treatment in a furnance.
Manufacture:
The tubes are manufactured by Seamless Cold Drawn or Seamless Cold Rolling.
Steel | C | Si | Mn | P | S | Cr | Mo | Ni | Other elements | |||||||
Steel Name | Steel Number | min | max | min | max | min | max | max | max | min | max | min | max | min | max |
|
E235 | 1.0308 |
| 0.17 | - | 0.35 | - | 1.20 | 0.030 | 0.035 |
|
|
|
|
|
|
|
E275 | 1.0225 |
| 0.21 | - | 0.35 | - | 1.40 | 0.030 | 0.035 |
|
|
|
|
|
|
|
E315 | 1.0236 |
| 0.21 | - | 0.30 | - | 1.50 | 0.030 | 0.035 |
|
|
|
|
|
|
|
E355 b | 1.0580 |
| 0.22 | - | 0.55 | - | 1.60 | 0.030 | 0.035 |
|
|
|
|
|
|
|
E470 | 1.0536 | 0.16 | 0.22 | 0.10 | 0.50 | 1.30 | 1.70 | 0.030 | 0.035 |
|
|
|
|
|
| Al min 0.010, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C22E | 1.1151 | 0.17 | 0.24 | - | 0.40 | 0.40 | 0.70 | 0.035 | 0.035 |
|
|
|
|
|
|
|
C35E | 1.1181 | 0.32 | 0.39 | - | 0.40 | 0.50 | 0.80 | 0.035 | 0.035 |
|
|
|
|
|
|
|
C45E | 1.1191 | 0.42 | 0.50 | - | 0.40 | 0.50 | 0.80 | 0.035 | 0.035 |
|
|
|
|
|
|
|
C60E | 1.1221 | 0.57 | 0.65 | - | 0.40 | 0.60 | 0.90 | 0.035 | 0.035 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
25CrMo4 | 1.7218 | 0.22 | 0.29 |
| 0.40 | 0.60 | 0.90 | 0.035 | 0.035 | 0.90 | 1.20 | 0.15 | 0.30 | - | - |
|
30CrMo4 | 1.7216 | 0.27 | 0.34 |
| 0.35 | 0.35 | 0.60 | 0.035 | 0.035 | 0.80 | 1.15 | 0.15 | 0.30 | - | - |
|
34CrMo4 | 1.7220 | 0.30 | 0.37 |
| 0.40 | 0.60 | 0.90 | 0.035 | 0.035 | 0.90 | 1.20 | 0.15 | 0.30 | - | - |
|
42CrMo4 | 1.7225 | 0.38 | 0.45 |
| 0.40 | 0.60 | 0.90 | 0.035 | 0.035 | 0.90 | 1.20 | 0.15 | 0.30 | - | - |
|
Steel Grade | Delivery | Minimum tensile properties | |||||||||||
Steel Name | Steel Number | Yield Strength(ReH) | Tensile Strength(Rm) | Elongation A% | |||||||||
For T in mm | For T in mm | l | t | ||||||||||
≤16 | >16 | >40 | >65 | >80 | ≤16 | >16 | >40 | >65 | |||||
|
|
|
|
|
|
|
|
| |||||
E235 | 1.0 | +ARora+N | 235 | 225 | 215 | 205 | 195 | 360 | 360 | 360 | 340 | 25 | 23 |
E275 | 1.0 | +AR ora+N | 275 | 265 | 255 | 245 | 235 | 410 | 410 | 410 | 380 | 22 | 20 |
E315 | 1.0 | +ARora+N | 315 | 305 | 295 | 280 | 270 | 450 | 450 | 450 | 420 | 21 | 19 |
E355 | 1.0 | +AR ora+N | 355 | 345 | 335 | 315 | 295 | 490 | 490 | 490 | 470 | 20 | 18 |
E470 | 1.0 | +AR | 470 | 430 | - | - | - | 650 | 600 | - | - | 17 | 15 |
Steel Grade | Minimum tensile properties | ||||||||||||
Steel name | Steel number | Yeld strength(ReH) | Tensile strength(Rm) | Elongation A | |||||||||
For T in mm | For T in mm | For T in mm | |||||||||||
≤16 | >16 | >40 | ≤16 | >16 | >40 | ≤16 | >16 | >40 | |||||
|
|
|
|
|
|
|
| ||||||
|
|
|
|
|
| l | t | l | t | l | t | ||
C22E | 1.151 | 240 | 210 | 210 | 430 | 410 | 410 | 24 | 22 | 25 | 23 | 25 | 23 |
C35E | 1.1181 | 300 | 270 | 270 | 550 | 520 | 520 | 18 | 16 | 19 | 17 | 19 | 17 |
C45E | 1.1191 | 340 | 305 | 305 | 620 | 580 | 580 | 14 | 12 | 16 | 14 | 16 | 14 |
C60E | 1.1221 | 390 | 350 | 340 | 710 | 670 | 670 | 10 | 8 | 11 | 9 | 11 | 9 |
Steel Grade | Minimum tensile properties | ||||||||||||||||
Steel Name | Steel Number | Yield | Tensile | Elong ation A % | |||||||||||||
For T in mm | For T in mm | For T in mm | |||||||||||||||
≤8 | >8 | >20 | >50 | ≤8 | >8 | >20 | >50 | ≤8 | >8 | >20 | >50 | ||||||
|
|
|
|
|
|
|
|
|
|
|
| ||||||
|
|
|
|
|
|
|
| l | t | l | t | l | t | l | t | ||
C22E | 1.1151 | 340 | 290 | 270 | 260 | 500 | 470 | 440 | 420 | 20 | 18 | 22 | 20 | 22 | 20 | 22 | 20 |
C35E | 1.1181 | 430 | 380 | 320 | 290 | 630 | 600 | 550 | 500 | 17 | 15 | 19 | 17 | 20 | 18 | 20 | 18 |
C45E | 1.1191 | 490 | 430 | 370 | 340 | 700 | 650 | 630 | 600 | 14 | 12 | 16 | 14 | 17 | 15 | 17 | 15 |
C60E | 1.1221 | 580 | 520 | 450 | 420 | 850 | 800 | 750 | 710 | 11 | 9 | 13 | 11 | 14 | 12 | 14 | 12 |
Steel Grade | Minimum tensile properties | ||||||||||||||||
Steel name | Steel nu | Yield | Tensile | A | |||||||||||||
For T in mm | For T in mm | For T in mm | |||||||||||||||
≤ | > | > | > | ≤8 | > | > | > | ≤8 | >8 | > | > | ||||||
| ≤20 | ≤50 | ≤80 |
| ≤20 | ≤50 | ≤80 |
| ≤20 | ≤ | ≤ | ||||||
l | t | l | t | l | t | l | t | ||||||||||
25CrMo4 | 1.7218 | 700 | 600 | 450 | 400 | 900 | 800 | 700 | 650 | 12 | 10 | 14 | 12 | 15 | 13 | 16 | 14 |
30CrMo4 | 1.7216 | 750 | 630 | 520 | 480 | 950 | 850 | 750 | 700 | 12 | 10 | 13 | 11 | 14 | 12 | 15 | 13 |
34CrMo4 | 1.7220 | 800 | 650 | 550 | 500 | 1000 | 900 | 800 | 750 | 11 | 9 | 12 | 10 | 14 | 12 | 15 | 13 |
42CrMo4 | 1.7225 | 900 | 750 | 650 | 550 | 1100 | 1000 | 900 | 800 | 10 | 8 | 11 | 9 | 12 | 10 | 13 | 11 |
