| Brand Name: | TORICH |
| Model Number: | EN10305-1 |
| MOQ: | 5 TON |
| Price: | negotiable |
| Supply Ability: | 6000 tons one year |

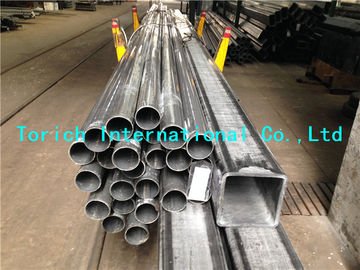

EN10305-1 E215 E235 E355 Cold Drawn Seamless Precision Steel Tubes for Hydraulic Systems and Auto Parts
Quick Detail:
Cold Drawn Seamless Precision steel pipes for Hydraulic system
OD:4-420 (mm) WT0.5-80(mm) Length 1000-12000mm
Steel Grade:
E215, E235, E355
Product name: S
Cold Drawn Seamless Precision Steel Pipe
Application: for hydraulic systems
| Precision Steel Pipes for Hydraulic System- Standard Size Chart | ||
| OD (mm) | WT (mm) | Length (mm) |
| 4 | 0.5 | 5800-6000 |
| 4.0 | 1.0 | 5800-6000 |
| 5.0 | 1.0 | 5800-6000 |
| 6.0 | 1.0 | 5800-6000 |
| 6.0 | 1.5 | 5800-6000 |
| 8.0 | 1.0 | 5800-6000 |
| 9.5 | 0.89 | 5800-6000 |
| 10 | 0.8 | 5800-6000 |
| 10.0 | 1.0 | 5800-6000 |
| 10.0 | 1.5 | 5800-6000 |
| 10.0 | 2.0 | 5800-6000 |
| 12 | 0.8 | 5800-6000 |
| 12.0 | 1.0 | 5800-6000 |
| 12.0 | 1.2 | 5800-6000 |
| 12.0 | 1.5 | 5800-6000 |
| 12.7 | 0.8 | 5800-6000 |
| 12.7 | 1.2 | 5800-6000 |
| 13.0 | 1.5 | 5800-6000 |
| 13.5 | 2.0 | 5800-6000 |
| 14 | 1 | 5800-6000 |
| 14.0 | 1.5 | 5800-6000 |
| 15.0 | 1.0 | 5800-6000 |
| 16.0 | 1.5 | 5800-6000 |
| 16.0 | 2.0 | 5800-6000 |
| 16.0 | 2.5 | 5800-6000 |
| 16.0 | 3.0 | 5800-6000 |
| 16.0 | 3.5 | 5800-6000 |
| 17.2 | 2.0 | 5800-6000 |
| 17.2 | 3.0 | 5800-6000 |
| 18.0 | 3.0 | 5800-6000 |
| 20.0 | 1.5 | 5800-6000 |
| 20.0 | 2.0 | 5800-6000 |
| 20.0 | 2.5 | 5800-6000 |
| 20.0 | 3.5 | 5800-6000 |
| 22.0 | 1.5 | 5800-6000 |
| 22.0 | 3.0 | 5800-6000 |
| 25.0 | 1.5 | 5800-6000 |
| 25.0 | 2.5 | 5800-6000 |
| 25.0 | 3.0 | 5800-6000 |
| 25.0 | 3.5 | 5800-6000 |
| 25.0 | 4.0 | 5800-6000 |
| 28.0 | 1.5 | 5800-6000 |
| 28.0 | 3.0 | 5800-6000 |
| 28.0 | 3.7 | 5800-6000 |
| 30.0 | 1.5 | 5800-6000 |
| 30.0 | 2.5 | 5800-6000 |
| 30.0 | 3.5 | 5800-6000 |
| 30.0 | 4.0 | 5800-6000 |
| 32.0 | 1.0 | 5800-6000 |
| 32.0 | 1.5 | 5800-6000 |
| 32.0 | 3.0 | 5800-6000 |
| 32.0 | 4.7 | 5800-6000 |
| 32.0 | 5.0 | 5800-6000 |
| 35.0 | 3.0 | 5800-6000 |
| 36.0 | 4.7 | 5800-6000 |
| 38.0 | 2.5 | 5800-6000 |
| 38.0 | 4.0 | 5800-6000 |
| 38.0 | 4.7 | 5800-6000 |
| 40.0 | 2.0 | 5800-6000 |
| 40.0 | 2.5 | 5800-6000 |
| 40.0 | 4.0 | 5800-6000 |
| 40.0 | 5.7 | 5800-6000 |
| 42 | 1.5 | 5800-6000 |
| 42.0 | 4.0 | 5800-6000 |
| 42.0 | 6.7 | 5800-6000 |
| 45 | 2.5 | 5800-6000 |
| 46.0 | 5.5 | 5800-6000 |
| 50 | 2.5 | 5800-6000 |
| 50.0 | 6.0 | 5800-6000 |
| 50.0 | 8.0 | 5800-6000 |
| 52.0 | 7.0 | 5800-6000 |
| 55 | 2.5 | 5800-6000 |
| 56.0 | 4.1 | 5800-6000 |
| 57.0 | 8.0 | 5800-6000 |
| 60 | 2 | 5800-6000 |
| 62.0 | 7.0 | 5800-6000 |
