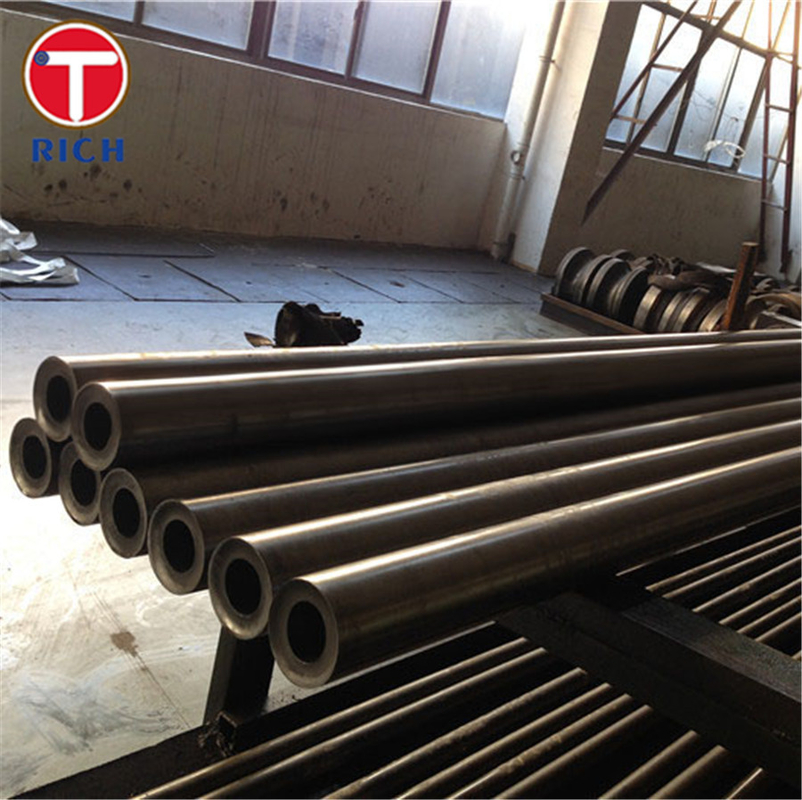

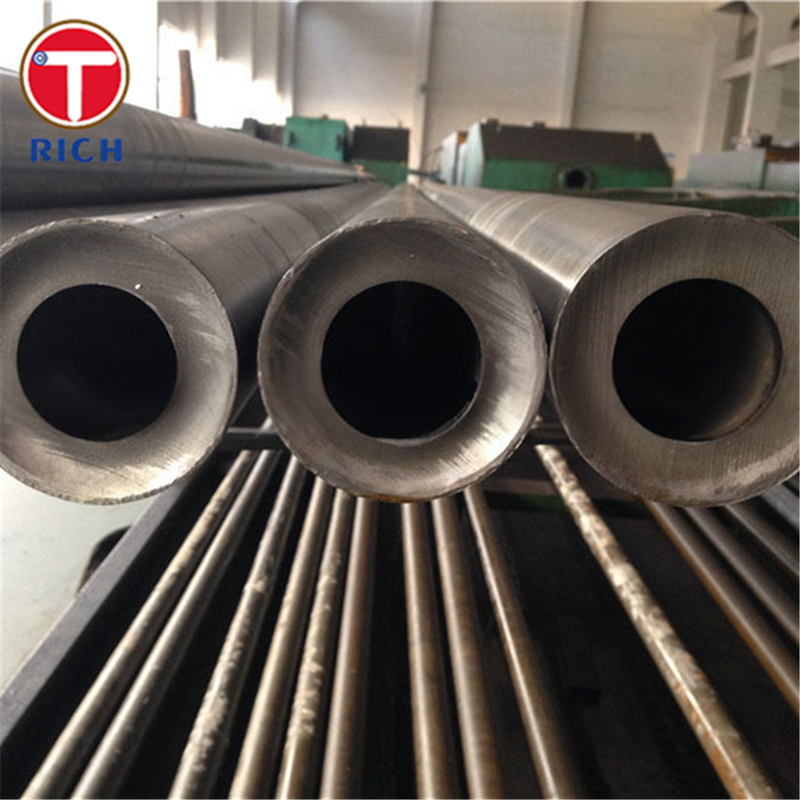

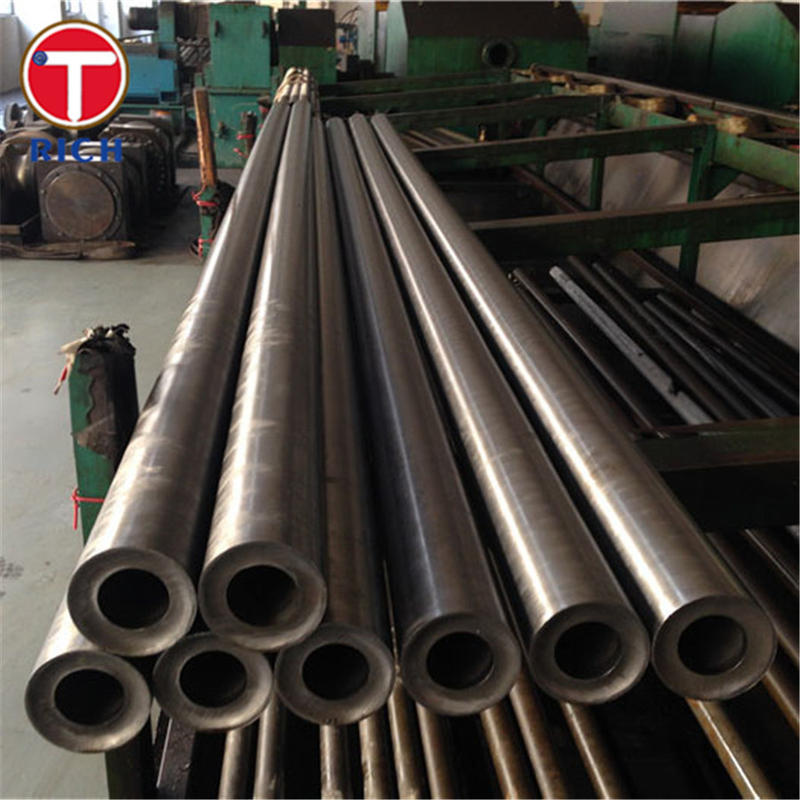

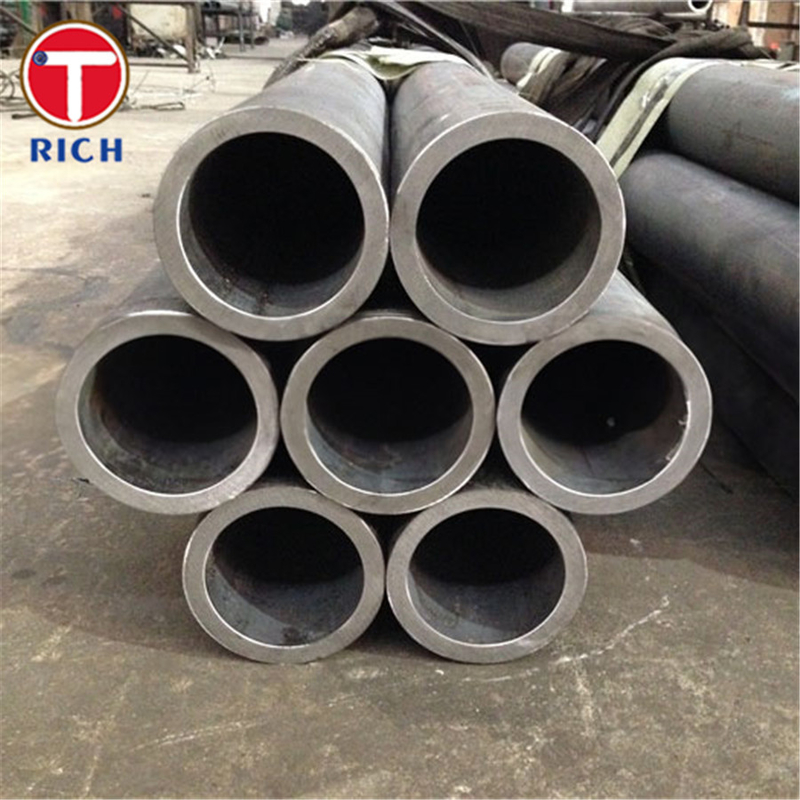

DIN EN 10210-1 Hot Finished Heavy Wall Steel Tubing Thick Wall Steel Pipe For Manufacturing Pipelines
Product Details
Round Hot Finished Heavy Wall Pipe
,DIN EN 10210-1 Heavy Wall Steel Tubing
,Pipelines Thick Wall Steel Pipe
DIN EN 10210-1 Hot Finished Heavy Wall Steel Tubing Thick Wall Steel Pipe For Manufacturing Pipelines
Material
The material used for DIN EN 10210-1 hot finished heavy wall steel tubing and thick wall steel pipes is commonly known as structural steel. It is specifically designed for use in the construction industry, where high strength and durability are required. Structural steel is known for its excellent ability to withstand heavy loads and its suitability for various applications in pipelines and other structural frameworks.
Specification
| Specification |
|---|
| DIN EN 10210-1 |
Key Features
The key features of DIN EN 10210-1 hot finished heavy wall steel tubing and thick wall steel pipes are as follows:
-
Hot finished: The manufacturing process involves hot rolling, which results in a seamless and uniform final product.
-
Heavy wall: The walls of these steel tubes and pipes are thick, providing additional strength and durability.
-
Suitable for pipelines: These steel tubes and pipes are ideal for use in manufacturing pipelines due to their strength and ability to withstand high pressure.
Chemical Composition
The chemical composition of DIN EN 10210-1 hot finished heavy wall steel tubing and thick wall steel pipes is as follows:
| Element | Composition Range |
|---|---|
| Carbon (C) | 0.16% - 0.22% |
| Silicon (Si) | 0.30% - 0.60% |
| Manganese (Mn) | 1.20% - 1.60% |
| Phosphorus (P) | 0.035% maximum |
| Sulfur (S) | 0.035% maximum |
| Niobium (Nb) | 0.015% - 0.06% |
| Vanadium (V) | 0.02% - 0.15% |
Mechanical Properties
The mechanical properties of DIN EN 10210-1 hot finished heavy wall steel tubing and thick wall steel pipes are as follows:
| Property | Value |
|---|---|
| Tensile Strength | Minimum 470 MPa, Maximum 630 MPa |
| Yield Strength | Minimum 355 MPa |
| Elongation | Minimum 21% |
| Impact Strength | Minimum 27 Joules at -20°C (-4°F) |
| Hardness | Minimum 85 HRB and Maximum 100 HRB |
Steel Grade
The steel grade used for DIN EN 10210-1 hot finished heavy wall steel tubing and thick wall steel pipes is S355J2H. This grade offers excellent weldability and impact resistance, making it suitable for a wide range of applications in the construction and manufacturing industries.
Application
DIN EN 10210-1 hot finished heavy wall steel tubing and thick wall steel pipes find application in various areas, including:
- Manufacturing pipelines
- Structural frameworks
- Industrial machinery
- Construction projects
- Power plants
Possible Alternative Grades
There are several possible alternative grades that can be considered based on specific project requirements or availability. Some of the commonly used alternative grades to DIN EN 10210-1 hot finished heavy wall steel tubing and thick wall steel pipes are as follows:
- S355NH
- S420MH
- S460NH
Haiyan Sanxin Steel Pipe Factory is a leading manufacturer of steel pipes in China. Located in a region with excellent geographical advantages, the factory is situated close to the Zhoushan Port and Ningbo Port.
Our factory covers an area of more than 25,000 square meters and has been in the steel pipe manufacturing business for 20 years. Over this period, we have accumulated a wealth of professional experience, which has helped us establish ourselves as a trusted name in the industry.
At our factory, we specialize in the production of various types of steel pipes, including stainless steel pipe, carbon steel pipe, copper pipe, steel pipe,seamless steel pipe and welded pipe. Our expertise in this field is evident from the 12 patents that we hold, which demonstrate our commitment to innovation and excellence.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
-
