DIN 2393 St37-2 Welded Steel Tube Precision Cold Drawn Welded Steel Pipe For Sleeve
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 1Tons | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | in bundles or in wooden box | Delivery Time : | 4-8weeks |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 5000Tons per Year |
| Place of Origin: | China,zhejiang | Brand Name: | TORICH |
|---|---|---|---|
| Model Number: | EN10217-1 |
|
Detail Information |
|||
| Certification: | ISO9001:2008 | Standard: | DIN EN 10217-1-2005 |
|---|---|---|---|
| Grade: | Q195/Q215/Q235/Q345 | Secondary Or Not: | Non-secondary |
| Keyword: | Welded Steel Tube | Surface: | Black Painted |
| End Protector: | Plastic Pipe Cap | Shape: | Round Square. Rectangular |
| Usage: | High Pressure Vessel | Length: | 1-12m |
| High Light: | Pressure Purposes ERW Steel Pipe,ERW P265TR1 Welded Steel Tube,EN10217-1 Welded Steel Tube |
||
Product Description

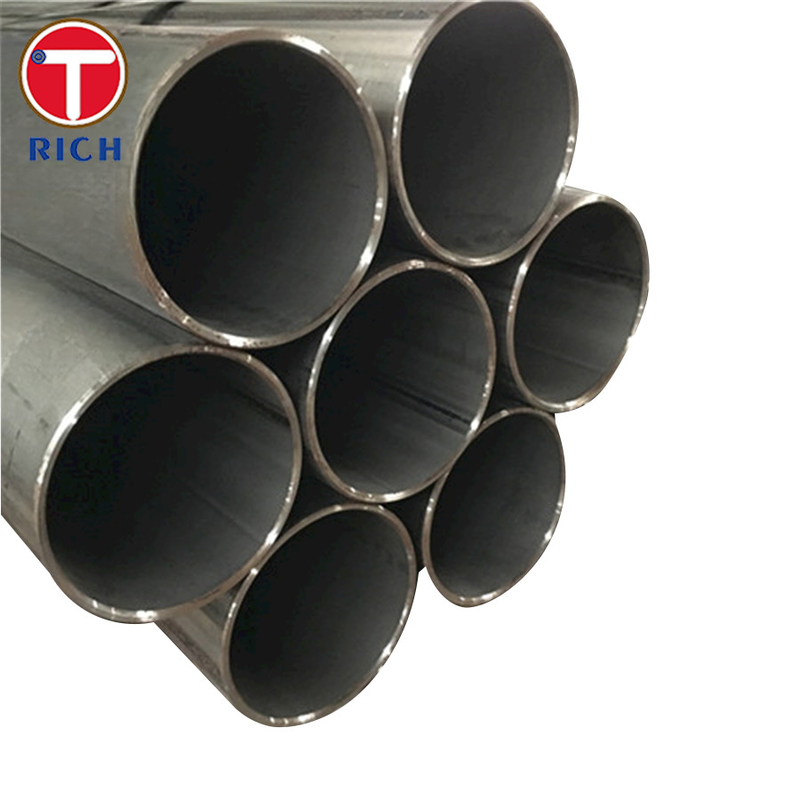

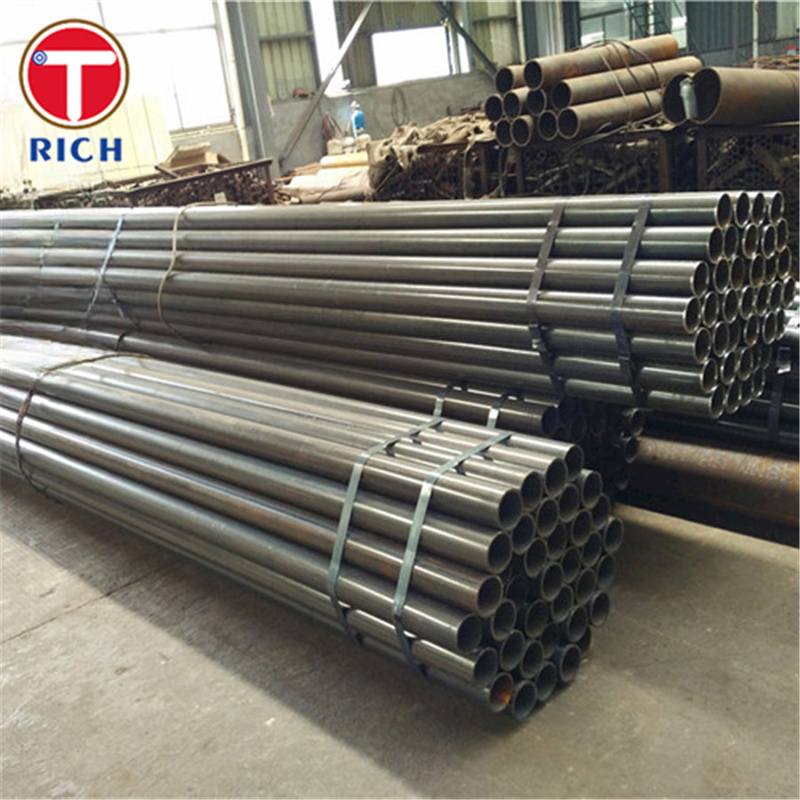

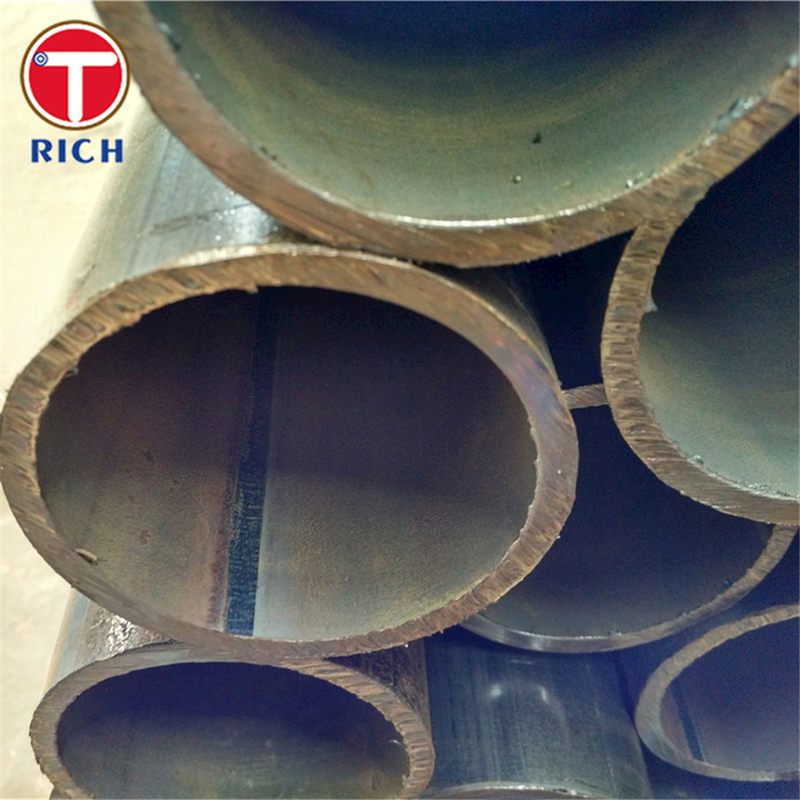

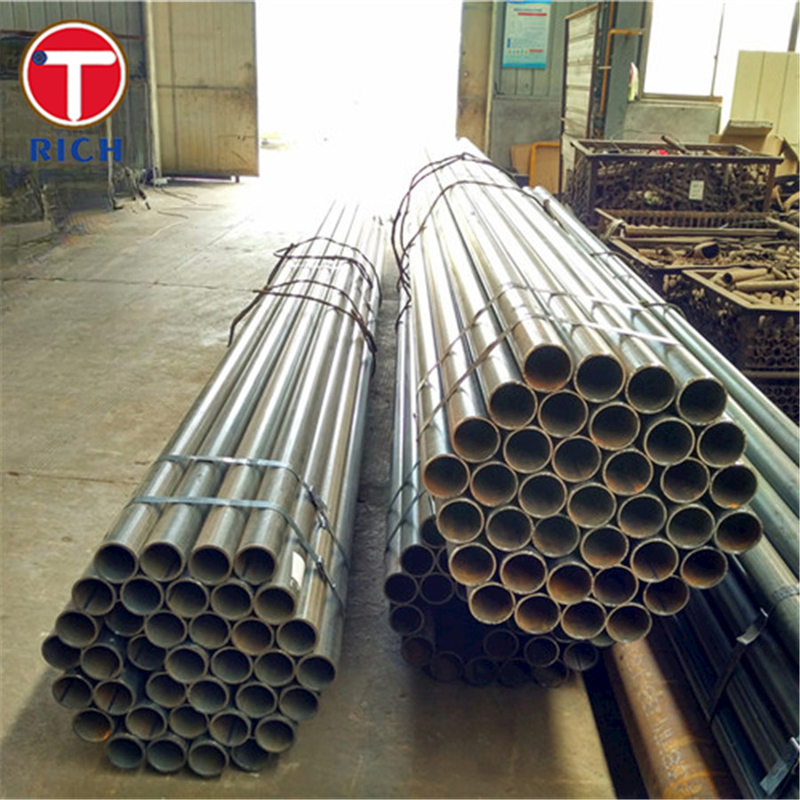

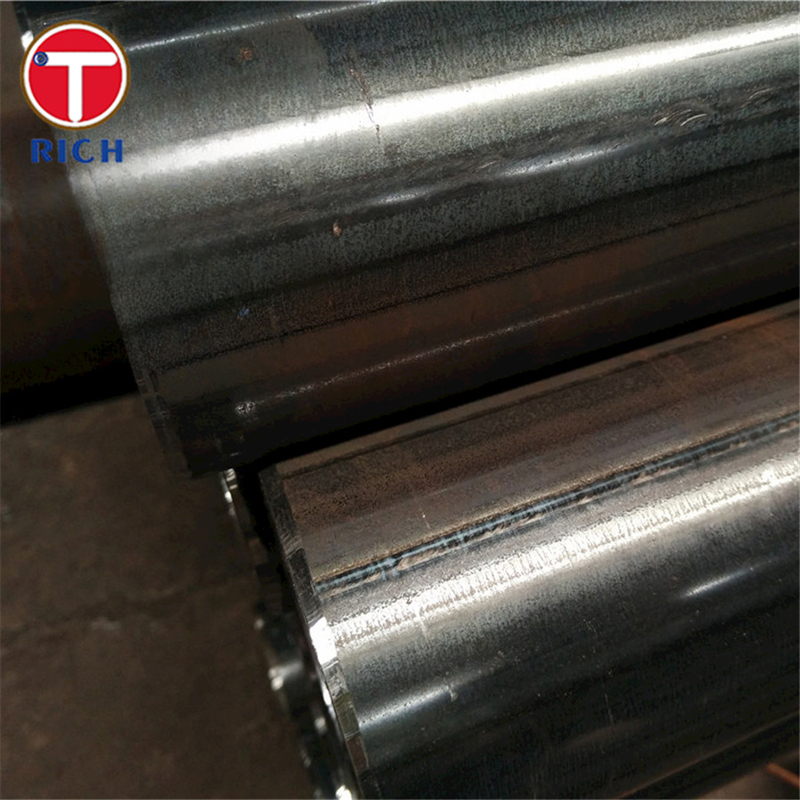

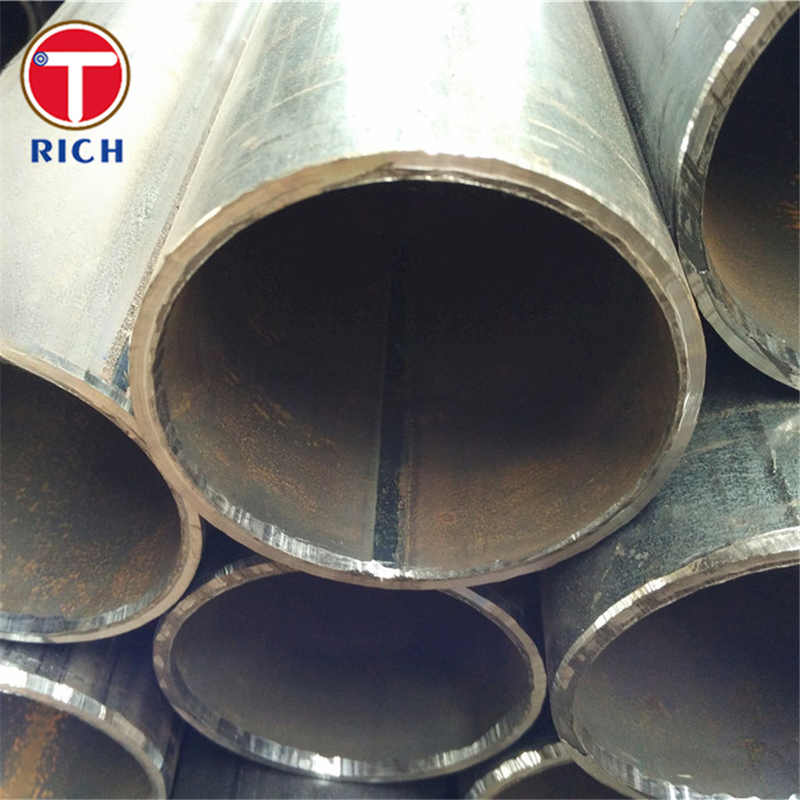

The EN10217-1 ERW P265TR1 High Frequency Welded Steel Tube is designed for use in pressure applications. It conforms to the European standard EN10217-1 for welded steel tubes and comes with specific material and dimensional requirements. The material used for this tube is P265TR1 steel.
The chemical composition of the P265TR1 steel used in the EN10217-1 ERW steel tube is as follows:
| Element | Weight % |
|---|---|
| Carbon (C) | 0.20 max |
| Silicon (Si) | 0.40 max |
| Manganese (Mn) | 1.40 max |
| Phosphorus (P) | 0.025 max |
| Sulfur (S) | 0.020 max |
| Chromium (Cr) | 0.30 max |
| Copper (Cu) | 0.30 max |
| Nickel (Ni) | 0.30 max |
| Molybdenum(Mo) | 0.08 max |
| Vanadium (V) | 0.02 max |
The EN10217-1 ERW P265TR1 steel tube exhibits the following mechanical properties:
| Property | Value |
|---|---|
| Tensile Strength (Rm) | 410 - 570 MPa |
| Yield Strength (ReH) | 265 MPa min |
| Elongation (A) on L0 = 5.65√S0 | 22% min |
| Impact Energy (KV) at 20°C | 27 J min |
The steel grade P265TR1 is a non-alloy quality steel specifically designed for high-temperature applications. It offers good weldability and high strength, making it suitable for pressure purposes.
The EN10217-1 ERW P265TR1 High Frequency Welded Steel Tube finds application in various pressure systems and environments. It is commonly used in industries such as:
Oil and Gas: The tube is utilized in the transportation of oil and gas, where high-pressure and high-temperature conditions are encountered.
Petrochemical: P265TR1 steel tube is employed in the petrochemical industry for conveying various fluids and gases under pressure.
Power Plants: It is used in power generation plants, especially in boiler tubes and steam pipelines.
Chemical Processing: The tube is suitable for transporting chemicals under pressure in chemical processing plants.
Heat Exchangers: P265TR1 steel tubes are utilized in heat exchangers for their excellent thermal conductivity and pressure resistance.
Automotive: Some automotive applications require pressure-resistant tubes, and the EN10217-1 P265TR1 tube can be used for this purpose.
Construction: The steel tube is used in construction projects where pressure-carrying pipelines are required.
Haiyan Sanxin Steel Pipe Factory is a leading manufacturer of steel pipes in China. Located in a region with excellent geographical advantages, the factory is situated close to the Zhoushan Port and Ningbo Port.
Our factory covers an area of more than 25,000 square meters and has been in the steel pipe manufacturing business for 20 years. Over this period, we have accumulated a wealth of professional experience, which has helped us establish ourselves as a trusted name in the industry.
At our factory, we specialize in the production of various types of steel pipes, including stainless steel pipe, carbon steel pipe, copper pipe, steel pipe,seamless steel pipe and welded pipe. Our expertise in this field is evident from the 12 patents that we hold, which demonstrate our commitment to innovation and excellence.
A: manufacturer,also can do trading.
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
