ASTM B338 Gr.1 Heat Exchanger Tubes Seamless Titanium Alloy Tubes For Condensers And Heat Exchangers
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 5MT | Price : | USD800-1200per ton |
|---|---|---|---|
| Packaging Details : | Stragith and U tubes In wooden boxes | Delivery Time : | 30~40 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 6000MT/Month |
| Place of Origin: | China | Brand Name: | Torich |
|---|---|---|---|
| Certification: | ISO 9001:2008 , TS16949 | Model Number: | SA213 |
|
Detail Information |
|||
| Dimension:: | 6-127mm*5-12mm | Steel Grade:: | T5 , T9 , T11 , T12 , T21 , T22 |
|---|---|---|---|
| Product Name:: | Carbon Steel Heat Exchanger Tube | Shape:: | U Bending |
| Length: | Max 36000mm | Application: | Heat Exchangers, Boilers |
| MTC: | EN10204 3.1B | Certification: | ISO9001,ISO14000,CE PED |
| Surface: | Grey And Phoshating | Oirgin: | China |
| High Light: | carbon steel tube,high carbon steel tube |
||
Product Description

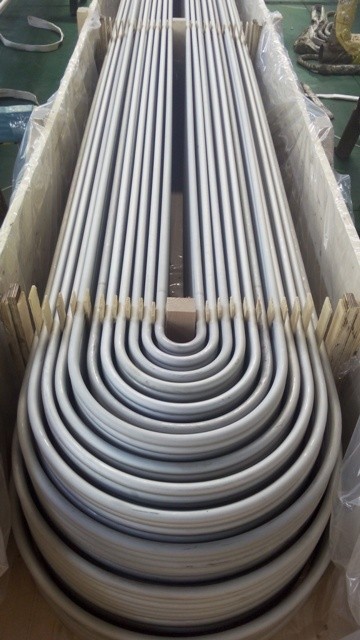

Seamless Steel Tubes SA213 U tubes for boilers and heat exchangers applications
Size Range
OD:6-127mm
WT:0.5-12mm
| Steel Grade and Chemical Compositions: | |||||||
| Steel Grade | C | Mn | P | S | Si | Cr | Mo |
| max | max | max | max | max | min | ||
| T5 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.5 | 4.0-6.0 | 0.45-0.65 |
| T9 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.0-10.0 | 0.90-1.10 |
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.0-1.50 | 0.44-0.65 |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.50 | 0.80-1.25 | 0.44-0.65 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 2.65-3.35 | 0.80-1.06 |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 1.90-2.60 | 0.87-1.13 |
| Steel Grade | Tensile Strength | Yield Strength | Elongation | Hardness.Max | ||
| min.ksi [Mpa] | min.ksi [Mpa] | % | Brinell/Vickers | Rockwell | ||
| T5b | 60[415] | 30[205] | 30 | 179HBW/190HV | 89HRB | |
| T9 | 60[415] | 30[205] | 30 | 179HBW/190HV | 89HRB | |
| T12 | 60[415] | 32[220] | 30 | 163HBW/170HV | 85HRB | |
| T91 | 85[585] | 60[415] | 20 | 250HBW/265HV | 25HRC | |
| T92 | 90[620] | 64[440] | 20 | 250HBW/265HV | 25HRC | |
