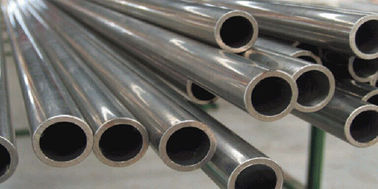

Precision Seamless Cold Drawn Steel Tubes GOST9567 Mechanical Steel Tubing
Basic Properties
Place of Origin:
China
Brand Name:
TORICH
Certification:
ISO 9001 ISO 14001 EN 10204.3.1 TS 16949
Model Number:
GOST9567
Trading Properties
Minimum Order Quantity:
5 tons
Price:
USD 600-1200 ton
Supply Ability:
60000tons per year
Product Summary
Precision Seamless Cold Drawn Steel Tubes GOST9567 Mechanical Steel Tubing GOST9567 Steel Tubes-Precision Steel Tubes for Mechanical Engineering GOST9567 Precision steel tubes Applications: Automobile, Machinery Engineering, Autoparts etc. Size range: O.D.:6-168mm W.T.:1-15mm L:max12000mm Chemical ...
Product Details
Highlight:
precision steel pipe
,precision seamless pipe
Material:
Carbon Steel And Alloy Steel
Steel Grade:
10 20 35 45 40X
Standard:
GOST9567
Shape:
Round
Applications:
Automobile, Machinery Engineering, Autoparts Etc.
Size Range:
O.D.:6-168mm W.T.:1-15mm L:max12000mm
Production Method:
Seamless Cold Drawn
Product Description
Precision Seamless Cold Drawn Steel Tubes GOST9567 Mechanical Steel Tubing
GOST9567 Steel Tubes-Precision Steel Tubes for Mechanical Engineering
GOST9567 Precision steel tubes
Applications: Automobile, Machinery Engineering, Autoparts etc.
Size range: O.D.:6-168mm W.T.:1-15mm L:max12000mm
Chemical composition(%,max)
| Steel Grade | C | Si | Mn | Cr | Ni | Mo | S | P | Cu |
| 10 | 0.07-0.14 | 0.17-0.37 | 0.35-0.65 | 0.15 | 0.3 | - | - | - | - |
| 20 | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.25 | 0.25 | - | 0.03 | 0.025 | 0.3 |
| 35 | 0.32-0.40 | 0.17-0.37 | 0.50-0.80 | 0.25 | 0.3 | - | 0.04 | 0.035 | 0.3 |
| 45 | 0.42--0.45 | 0.17-0.37 | 0.50-0.80 | 0.25 | - | - | - | - | - |
| 40X | 0.36-0.44 | 0.17-0.37 | 0.50-0.80 | 0.80-1.10 | 0.3 | - | 0.035 | 0.035 | 0.3 |
| 30ХГСА | 0.28-0.34 | 0.90-1.20 | 0.80-1.10 | 0.80-1.10 | 0.3 | - | 0.005 | 0.025 | - |
Mechanical Properties:
| Steel Grade | Tensile Strength, N/mm2 (min) | Yield Strength, N/mm 2 (min) | Elongation, %(min) |
| 10 | 343 | 206 | 24 |
| 20 | 412 | 245 | 21 |
| 35 | 510 | 294 | 17 |
| 45 | 589 | 323 | 14 |
| 40X | 618 | - | 14 |
| 30ХГСА | 491 | - | 18 |

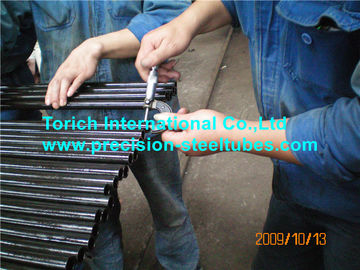

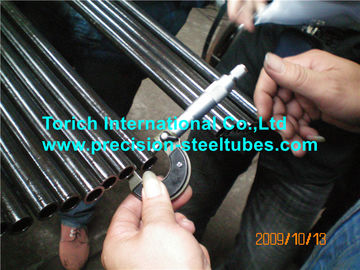

Dimensional Inspection:
Production Process:
Cold Drawn + Cold Rolling + Heat Treatment
