ASTM A1016 TP304 Austenitic Stainless Steel Pipe Stainless Steel Tubes For General Requirements
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 5 tons | Price : | 800-1200 USD/TON |
|---|---|---|---|
| Packaging Details : | oil antirust in hexagonal bundles or in carton boxes or in wooden boxes | Delivery Time : | 35-60 days after order confirmed |
| Payment Terms : | D/A, D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000 tons per year |
| Place of Origin: | China | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO 9001-2008 ISO 14001 TS16949 DNV SON | Model Number: | EN10305-1 |
|
Detail Information |
|||
| Standard: | EN10305-1 | Steel Grade: | E 235 E355 Etc |
|---|---|---|---|
| Dimension: | OD6-380mm*WT1-35mm*L:max12000mm | Material: | Carbon And Alloy Steel Grade |
| Production Method: | Seamless Cold Drawn/Rolling | Applications: | Hydraulic Cylinders/Oil Cylinder Tube/Excavator Chains And Parts |
| Delivery Condition: | +Cc +LCc +SR +Ad +N | WT Tolerance: | +/-0.15mm |
| Highlight: | precision steel pipe,precision seamless pipe |
||
Product Description
EN10305-1 Precision Steel Tube , Hydraulic Cylinder Tubing cutting to Specified Length
TORICH is one of the main suppliers for precision seamless steel pipe, as a top precision steel tube manufacturers in China, we have been exporting to ver 56 counties worldwide for high precision seamless steel pipe, which is widely used in Hydraulic Cylinders.
Standard for precision metal tubing:
EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes
Precision Seamless Steel Tube are for Application of:
For Hydraulic Cylinder/Oil Cylinder Tube/Excavator Chains and Parts
Size range:
O.D.:6-380mm
W.T.:1-35mm
L:max12000mm
Steel Grade and Chemical Compositions:
| Steel Grade | C | Si | Mn | P | S | Al | |
| Steel Name | Steel Number | max | max | max | max | max | min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
| Mechanical properties at room temperature | |||||||||||||
| Steel grade | Minimum values for the delivery condition | ||||||||||||
| Steel Name | Steel Nubmer | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) NBK | |||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490-630 | 355 | 22 |
aRm: tensile strength; ReH: upper yield strength; A: elongation after fracture
b 1Mpa=1N/mm2
c Depending on the degree of cold work in the finishing pass the yield strength may nearly be as high as the tensile strength.
For calculation purposes the following relations are recommended:
for delivery condition +C: ReH ≥0.8 Rm
for delivery condition +LC: ReH ≥0.7 Rm
d For calclulation purposes the following relation is recommended:ReH≥0.5Rm
e For tubes with outside diameter ≤30mm and wall thickness ≤3mm the ReH minimim values are 10Mpa lower than the values given in this Table
f For tubes with outside diameter＞160mm: ReH≥420Mpa
Note: Special steel grade is also available, according to customer request.

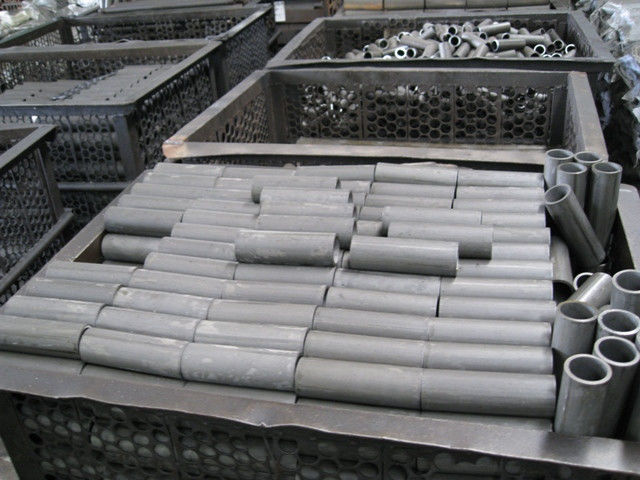

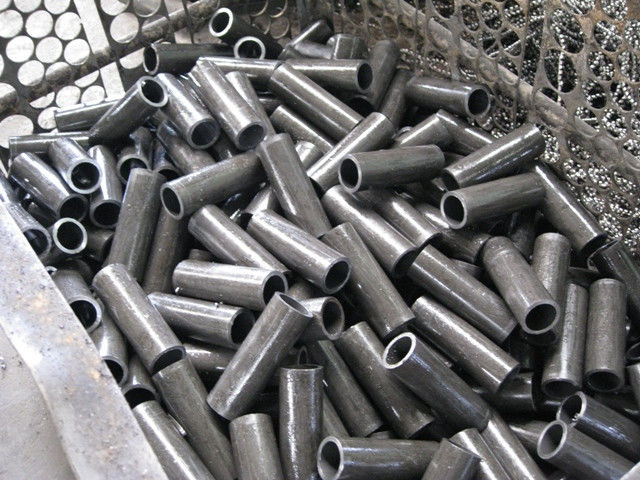

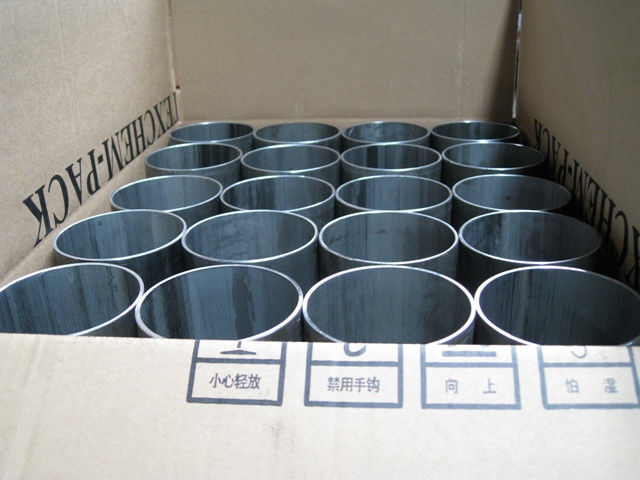

Cutting and Packing:
